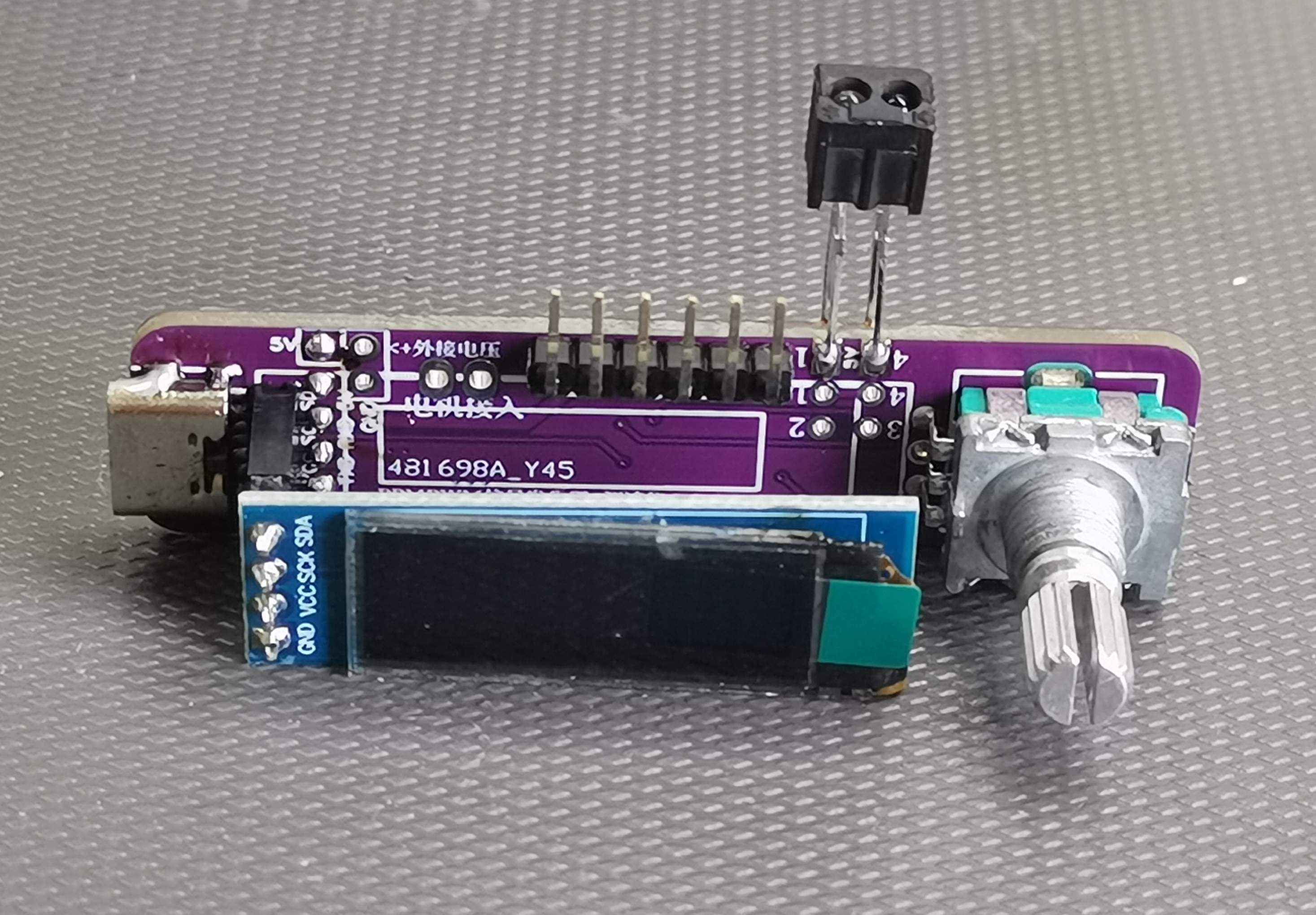

XPUB030 Servo ESC PWM generator EC11 version

Overview

Material purchase:
STC15W408AS
EC11
0.91OLED can be purchased with sign-in red envelope.

Operation:
Turn EC11 left and right to increase and decrease the ratio
EC11. Press to switch PWM frequency 1kHz 500Hz 200Hz 100Hz 50Hz. Cycle

STC flashing:
choose 24Mhz crystal oscillator.

Design Files
