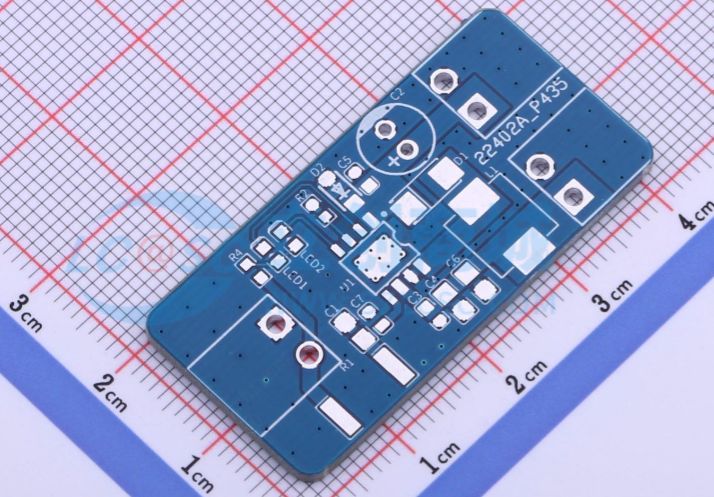

C5137699_TP5400 mobile power chip solution verification board

Overview

TP5400 is a single-cell lithium-ion battery charger and constant 5V boost controller dedicated to mobile power supplies. The output current can be adjusted by changing the resistance of the resistor on the PROG pin. It can output a maximum charging current of 1A; ·Input power supply voltage (VCC ): -0.3V~10V; 2 charging status indicators.
