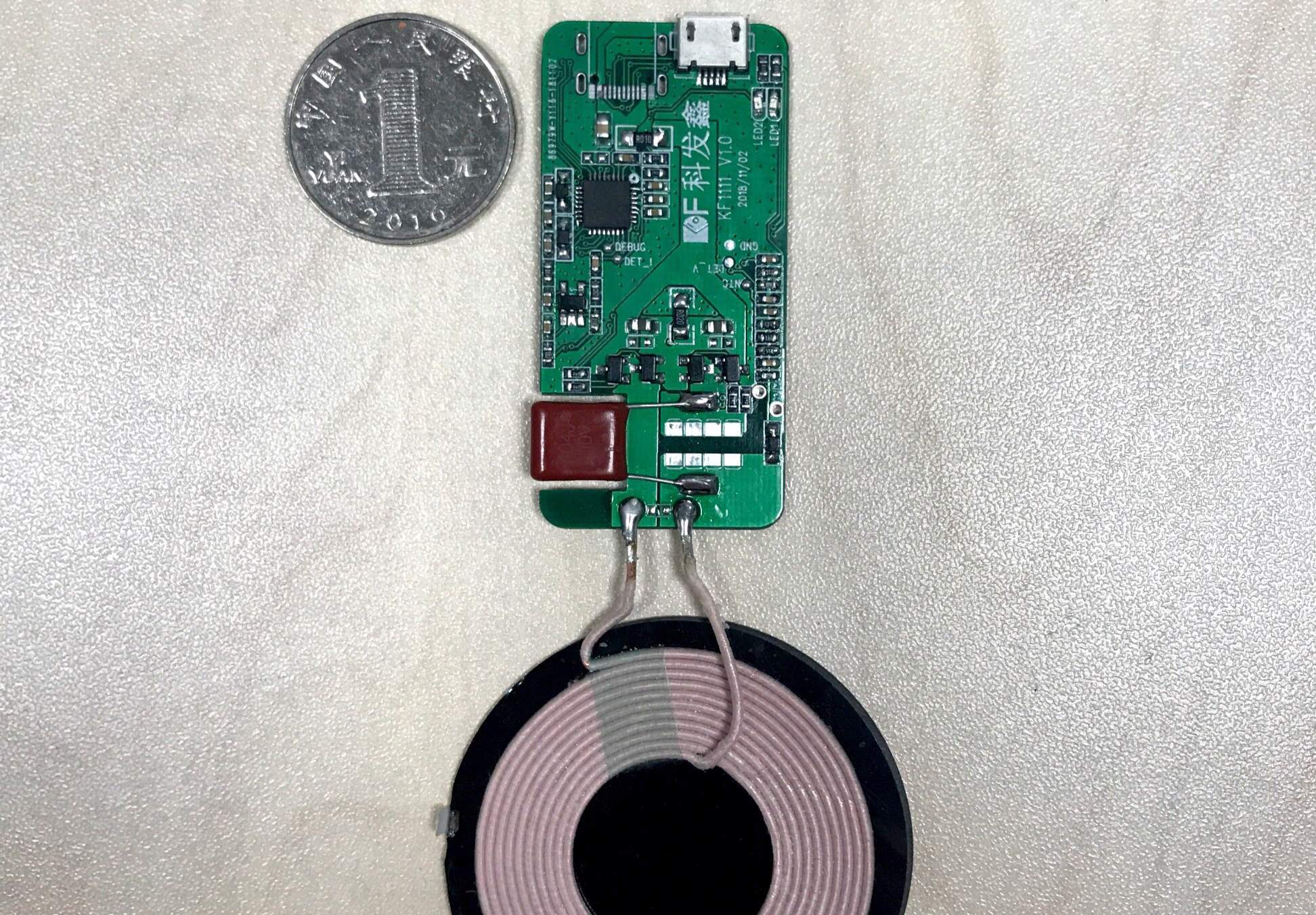

IP6808 wireless charging

Yingjixin IP6808 is a wireless charging transmitter SoC control chip that is compatible with the latest WPC Qi v1.2.4 standard. It integrates all the functions required for wireless power transmitter design that complies with the latest WPC Qi V1.2.4 specification. It supports 5W, Apple 7.5W, Samsung 10W. IP6808 detects the wireless receiver through analog ping and establishes communication with the receiving end, then starts power transmission. The IP6808 decodes the communication packets sent from the receiver and then uses a PID algorithm to change the oscillation frequency to adjust the output power on the coil. Once the battery on the receiver is fully charged, the IP6808 terminates power transfer. In addition, the chip also integrates a full-bridge drive circuit, including voltage and current bidirectional ASK demodulation modules, as well as input overvoltage/current protection and FOD modules.
Features
compatible with WPC v1.2.4 Standard
supports 5~15W Multiple applications
standalone 5W Application
fast charging charger input 5~15W Application
input withstand voltage up to 25V
Integrated NMOS Full-bridge driver
integrated internal voltage/current demodulation Supports FOD
Highly sensitive foreign object detection function Static foreign object detection
supports dynamic FOD.
FOD detection parameters are adjustable
for low static power consumption and high efficiency
. The measured system charging efficiency is as high as 79% with a static current of 4mA
. Compatible with NPO capacitors and CBB capacitors.
Supports online upgrade of finished product firmware.
Dynamic power adjustment for USB power supplies with insufficient power supply capabilities.
Function (DPM) supports charger   input overvoltage
as low as 5V 500mA , overcurrent protection function   supports PD3.0 Input request   supports NTC   2-way LED package for system status indication   5 mm × 5 mm 0.5pitch QFN32
