NFC campus card

Overview

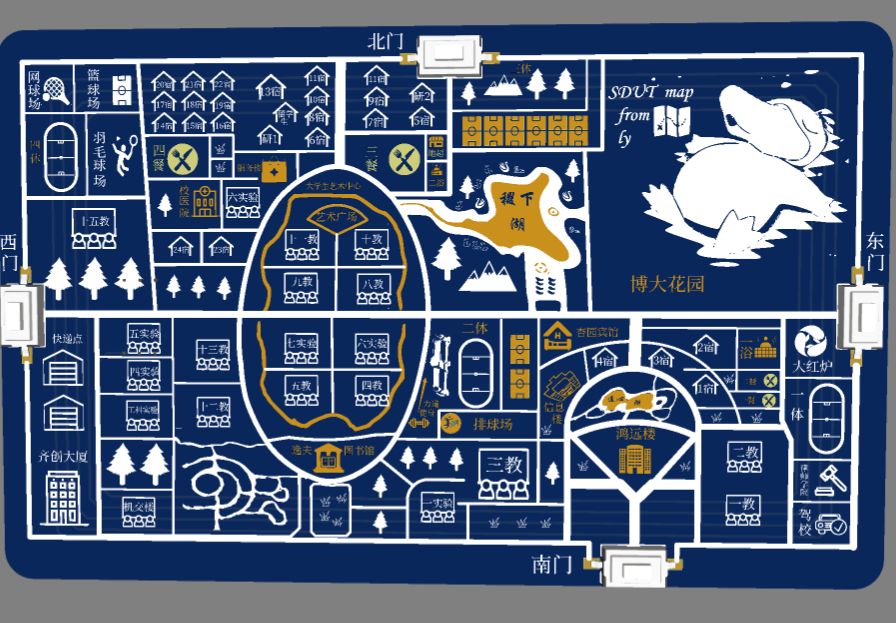

I have long wanted to make an NFC card with a campus card on the front and a map on the back. I have made a simple NFC card before, and it can be used by soldering the school campus card chip on it. I recently took some time to draw on it. This is a simple map of Shandong University of Technology. Many details have not been done. The board was just drawn and open sourced. It has not been typed out for verification. Maybe many of the patterns are too small and will be mixed together. I will continue to improve it and also Welcome everyone who is interested to improve together.
If you look at the campus card chip, you can look at it with the flashlight of your mobile phone. The small part that is opaque is the chip.
