LM393 reflective infrared line patrol module

Overview

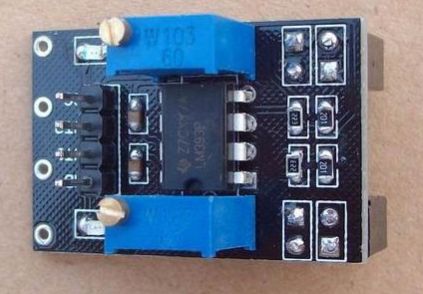

LM393 reflective infrared line patrol module brief description: 1. Dimensions: 32mm X17mm X 15mm length X width X height 2. Main chips: LM393, JX-359-043 3. Working voltage: DC 4~6V Physical display: LM393 reflective infrared line patrol module features: 1. With signal output indication. 2. Dual-channel signal output. 3. The output valid signal is low level. 4. When there is an object in front of the sensor transmitter that reflects infrared rays, the output is low level. 5. Application occasions: can be used for workpiece counting, line-finding robots, black and white detection, presence or absence detection, etc. 6. The circuit board outputs switch quantity! 7. The distance is adjustable

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
