[Training Camp] [Tuya Smart] Home Light Strip-481881C

Overview

Special product for Tuya Smart Furniture Competition.

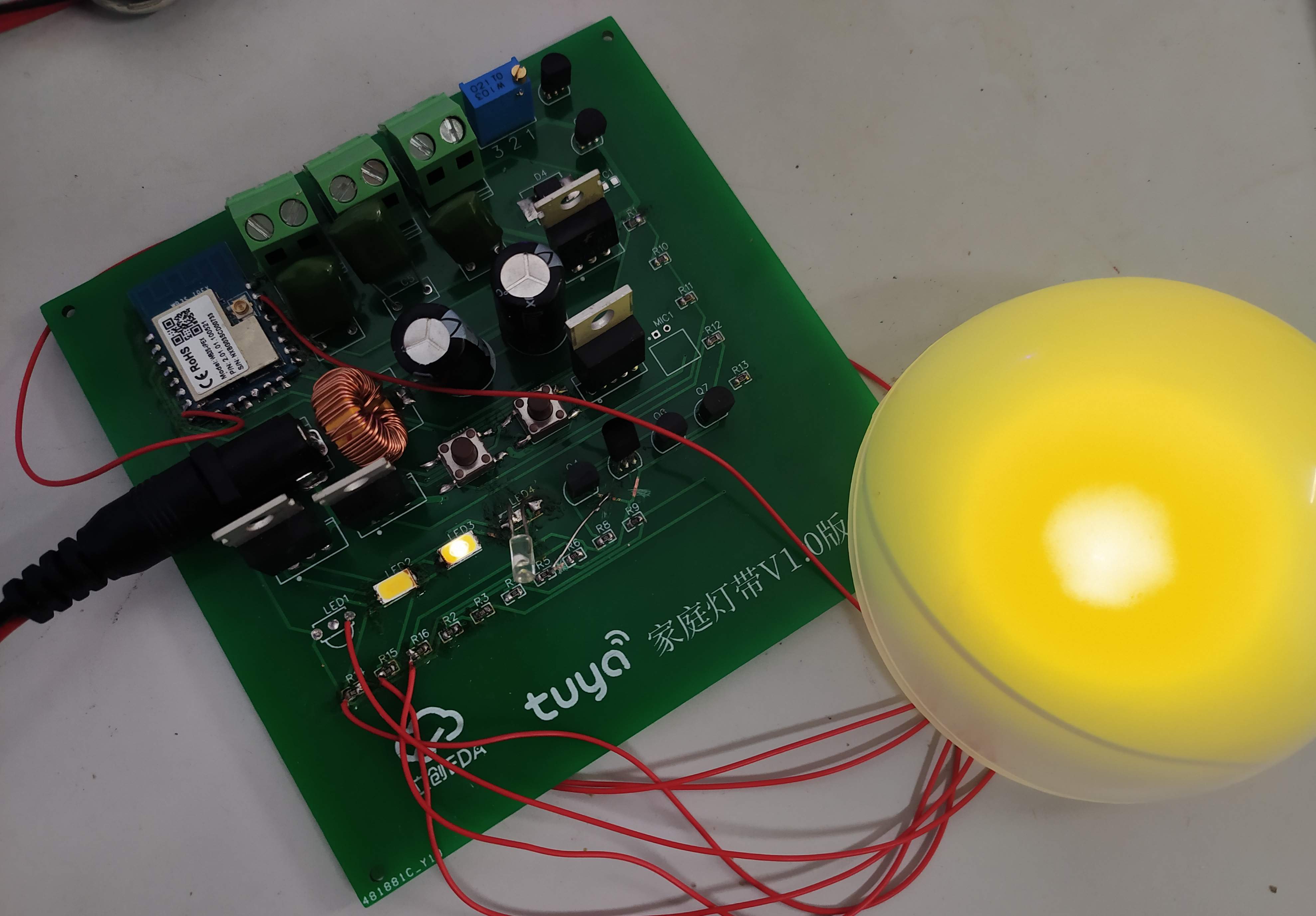

* Function description: Four channels are provided, white; red; green; blue. Each channel provides high power output. The maximum current of each channel is 2A. The control board is equipped with indicator lights of various colors. The color of the light can be controlled by the remote control, mobile phone or smart speaker, or by music sound. The brightness and hue can also be controlled by the weather app. The brightness is controlled by PWM, and different buttons can be used to achieve grading and stepless dimming.
* The circuit adopts xl4016e1 high power supply, input voltage 5~40v wide voltage,
