IN12 single nixie tube (595 can be connected in series)

Overview

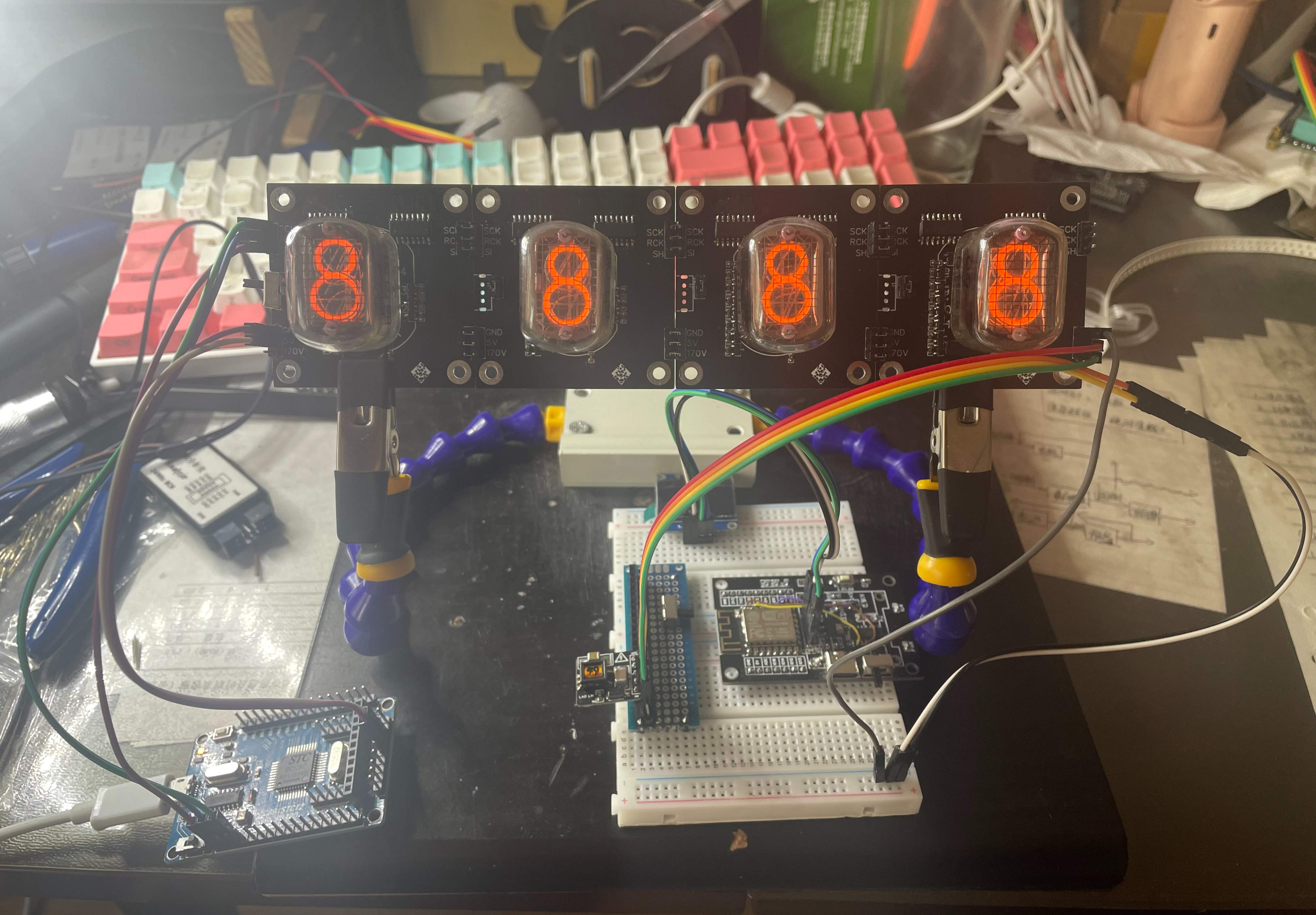

There is no main control, it is just a transfer baseboard, which leads to three-port power inputs of 170V, 5V, and GND, and three-port signal inputs of 74HC595. It can be controlled in series. It has been tested with up to 4 full-brightness controls without bugs. The attachment provides information, including the 51 program and esp8266 program I wrote myself.
