BLS_MINI_SCREEN

Overview

The encoder model is EC25-20P (conventional)
Marlin related settings: (configuration.h)

#define ENCODER_PULSES_PER_STEP 4 //Set the encoder resolution

#define ENCODER_STEPS_PER_MENU_ITEM 1 //Set the number of menu steps

#define OLED_PANEL_TINYBOY2 //Enable I2C driver OLED screen

Klipper configuration

[display]lcd_type: ssd1306encoder_pins: ^EXP2_5, ^EXP2_3# D33,D31click_pin: ^!EXP1_2# D35kill_pin: ^!EXP1_7# D27contrast: 255vcomh:63invert: False
[output_pin beeper]pin: EXP1_1# (D 37)

The The project can be used directly with the BLS_ESP 3D printer motherboard. The function has been verified to be normal. The BLS_ESP motherboard address is https://oshwhub.com/rcchen/blsesp.

The thickness of the board is 1.6mm.

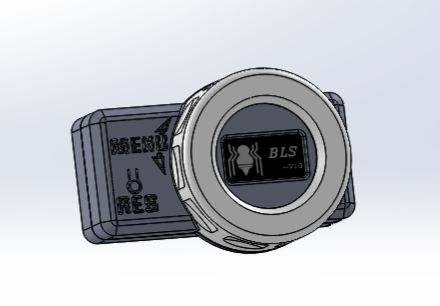

The shell stl file is attached.
