USB-C expansion dock+Hezhou stlink+CH340

Overview

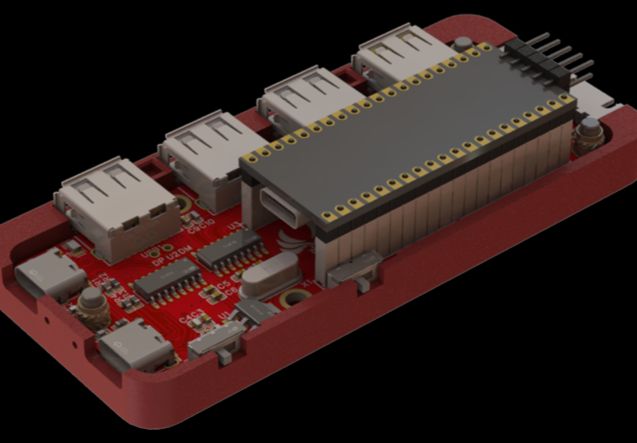

Based on the SL2.1A USB expansion dock, it also adds Hezhou's air32 for STM32 burning program, and connects to CH340 for serial port debugging. All functions are integrated into a TYPEC head for easy use.
