[Unverified] 4k large screen one-line communication driver board (ldr6023A)

Overview

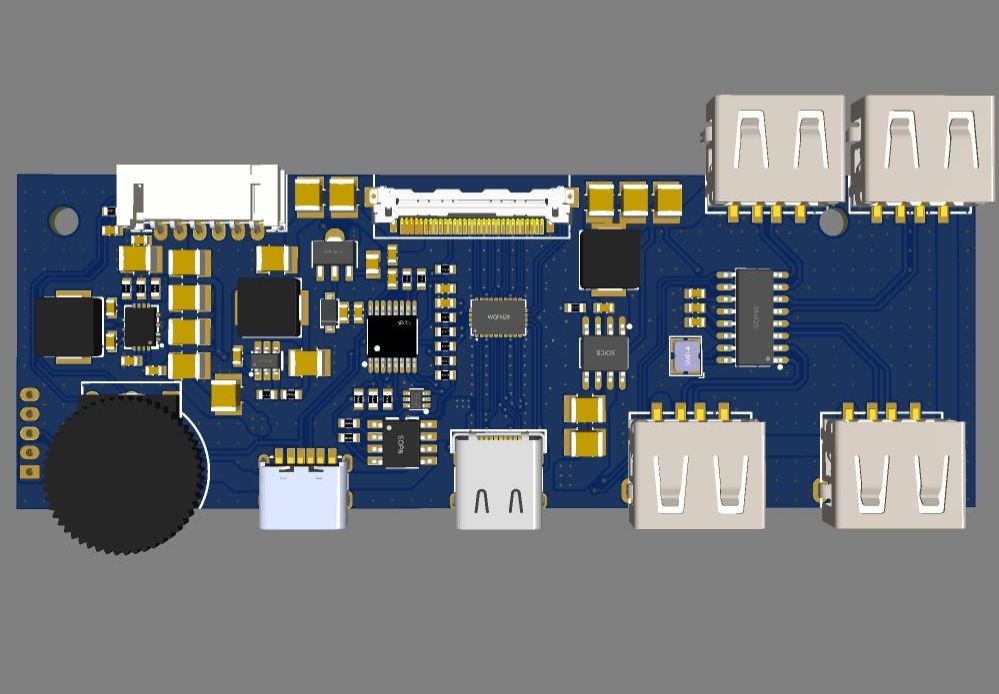

The typec one-line display driver board based on ldr6023A supports low-power 4k large screens (edp30pin, 4lane, 10v) such as mv238qum.
It has an external c2 input and can modify the backlight power supply to make it compatible with high-power displays such as lm270wrx/mv270qum.
There are two internal USB2.0 reserved, which can be connected to modules such as audio DAC and touch screen to expand more functions.

Design Files
