Oscilloscope test lamp V2.0

Overview

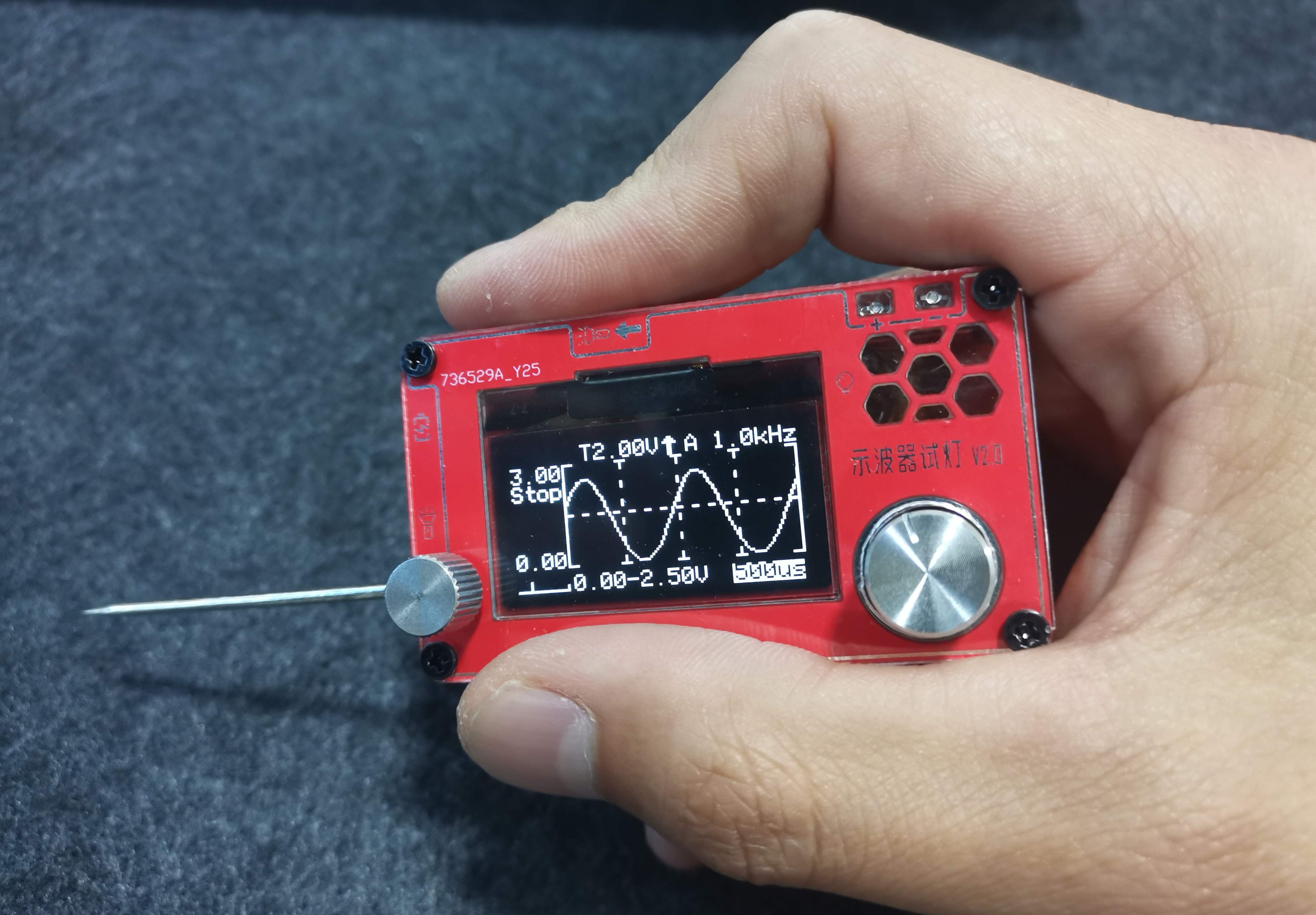

1. Lao Liu’s oscilloscope solution uses 1.3-inch OLED instead;
2. Integrated power test lamp function, measuring the positive and negative poles of the power supply (the positive pole lights up red and the negative pole lights up green);
3. The power bulb is removable and replaceable, supporting 12v and 24v Light bulb;
4.4-layer PCB structure, wrapped with 3D printed parts;
5. High-hardness probe, hand-tightened screws for fixation, disassembly and storage;
6.750mAh large-capacity battery, can be used continuously for more than 24 hours;
7. Banana socket connection 1.2m silicone Wires, large alligator clips, grounding, grounding;
8. High-brightness lighting LED;
9. One-key operation of metal rotary encoder.
