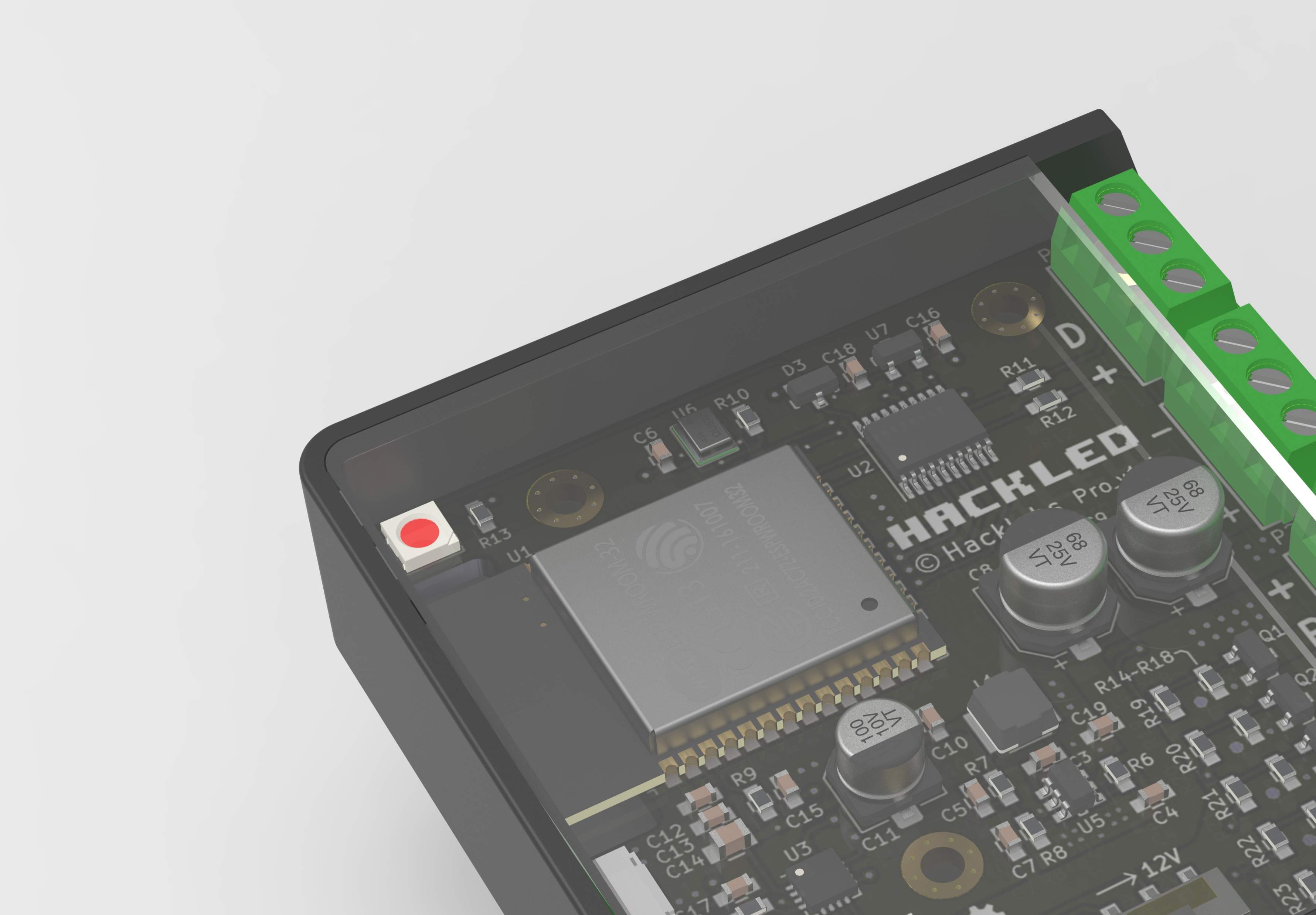

hackled_pro_v1.1 (Lichuang free hacking)

Overview

(Produced by HACK Lab)
I transplanted the project to Lichuang eda, and it can be produced for free.
For the project introduction, you can go to the WeChat public account "HACK Lab" or the Bilibili "HACK Lab" account to learn more
Problems with the project can be solved through private messages or messages. Once you see them, they will be solved.
I have checked the fixing holes between the board made by the original author kicad and the board in the Lichuang Eda Professional Edition that I drew. If no problem is found, you can try to print and close the cover directly.
The 3D printing file has been uploaded. , can correspond to the BOM table welding, or you can use the BOM table plug-in to generate the BOM table corresponding to the device welding

Design Files

3D model and BOM table.zip
