ESP32 development board v1

Overview

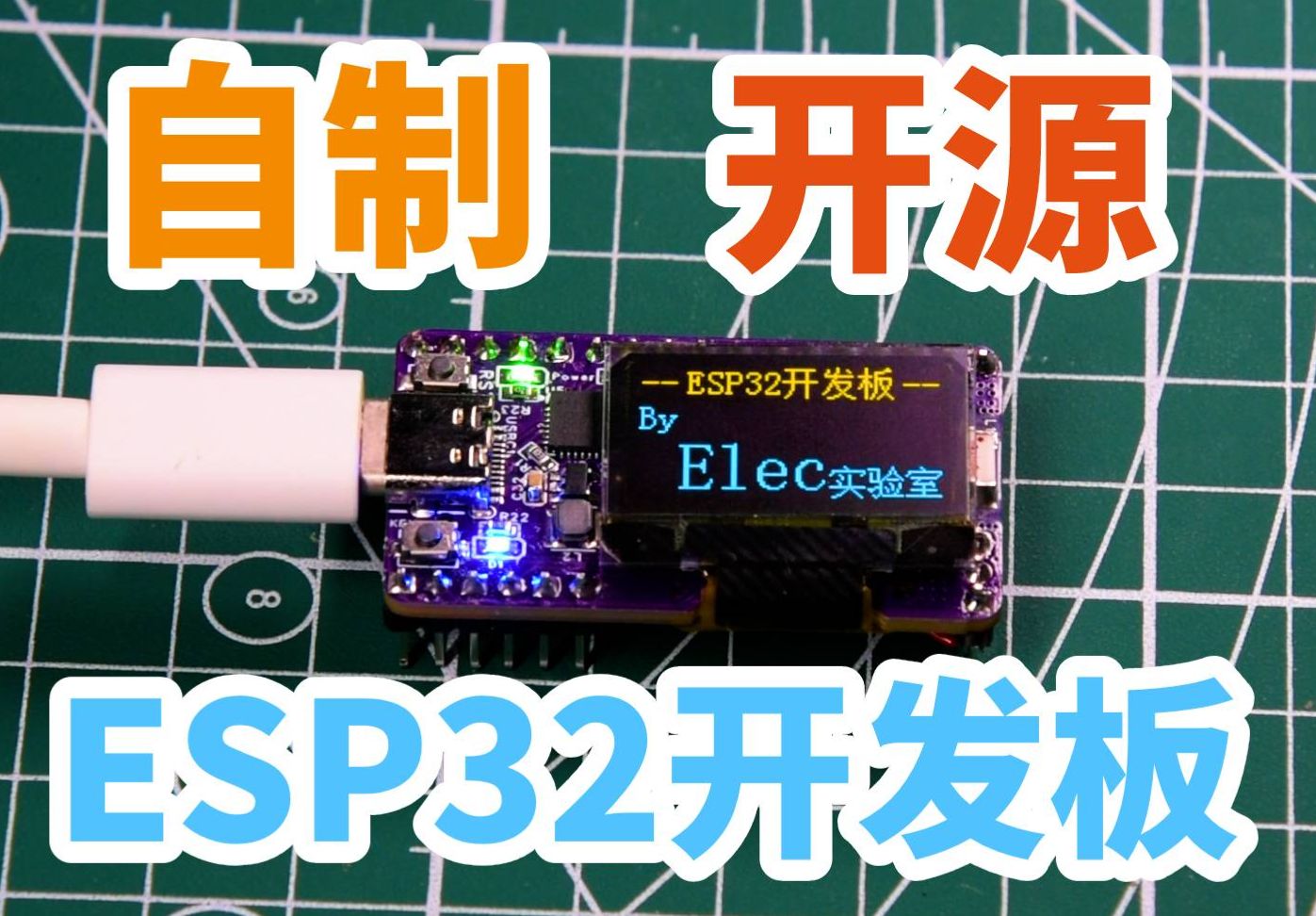

A development board made using ESP32 PICO D4 has onboard resources CAN, MPU6050, 2.4GWIFI, Bluetooth, SD card, OLED, etc., using Type-C interface.

Pure technical exchange group: 213795230

Video directions
https://www.bilibili. com/video/bv1jd4y137qQ

2022/9/6
I will put the board information here first in the evening, and I will edit and share it after I sort out the software code.

Sharing a few pictures , the code will be uploaded

in the afternoon of September 7, 2022.

The code only has simple lighting LED and OLED driver code, and the other parts will be completed later. For example, wifi, Bluetooth, etc., you can also do it yourself.

Use VS code and platformio plug-in for the code. If you don’t know how to use it, you can Baidu for the specific process. You can also use other IDEs. It’s up to you! !

Some of the OLED drivers are written by myself. No bugs have been found so far. If there are any bugs, please report them.

Design Files

ESP32Demo.zip
