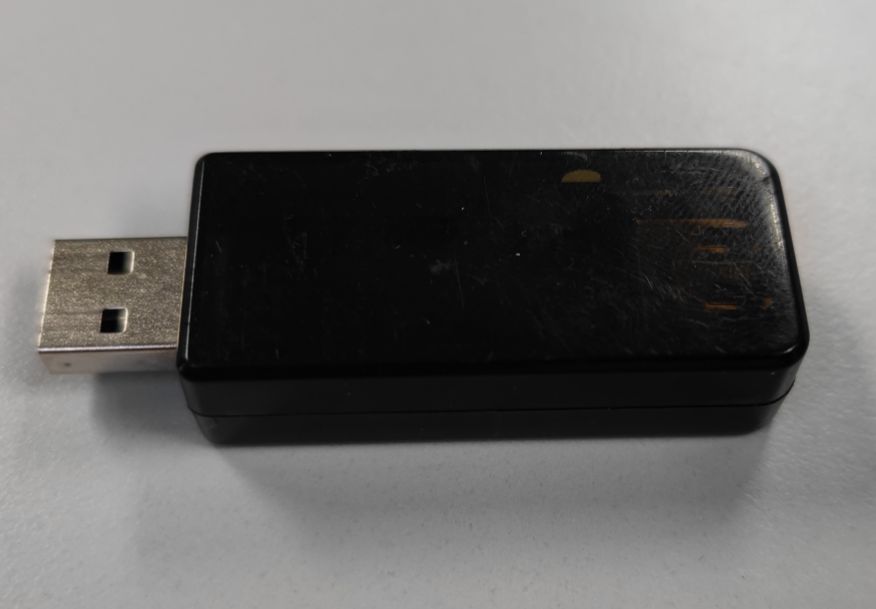

USB Isolator

Overview

It has been produced and verified
to only support USB2.0 Full Speed and not Low Speed.
The power supply is 0505 module 1W
shell. Use Ruideng's USB ammeter.

If Low Speed is required, just pull down SPU and SPD.
