KV46 Digital LLC Converter Reference Design

LLC-RESONANT-CONVERTER

Overview

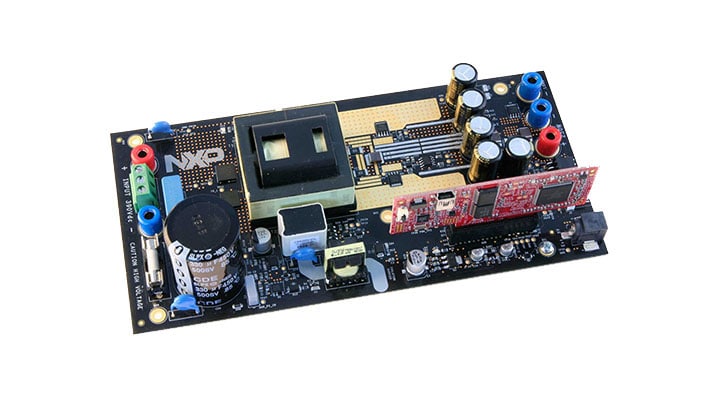

This provides a fully digital design of LLC resonant converter based on HVP-LLC. The HVP-LLC development board is part of the NXP® High Voltage Platform. Combined with the HVP-KV46F150 control card, it provides a ready-made software development platform for a 250-watt power supply with an input voltage of 390V DC and an output of 12V/21A.

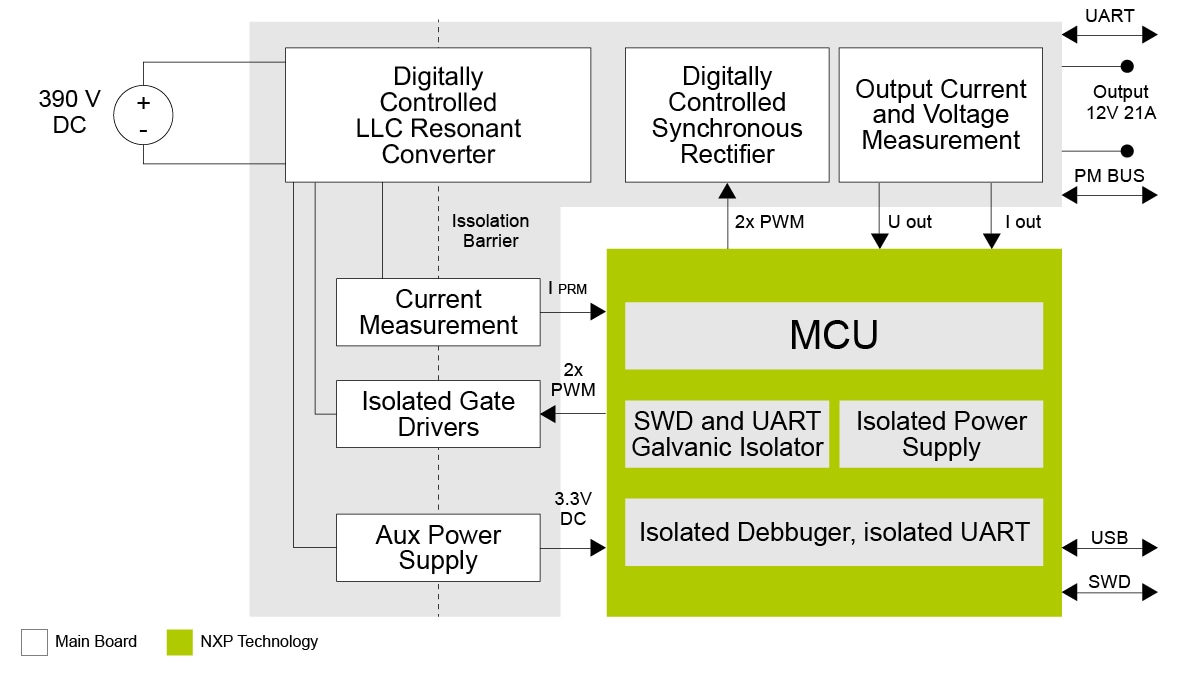

Blockdiagram

Design Files

Printed circuit board and circuit diagram: Kinetis KV46 LLC resonant converter example hardware

Documentation

HVP-LLC Design Reference Manual
