small engine control

KIT912P812ECUEVM

Overview

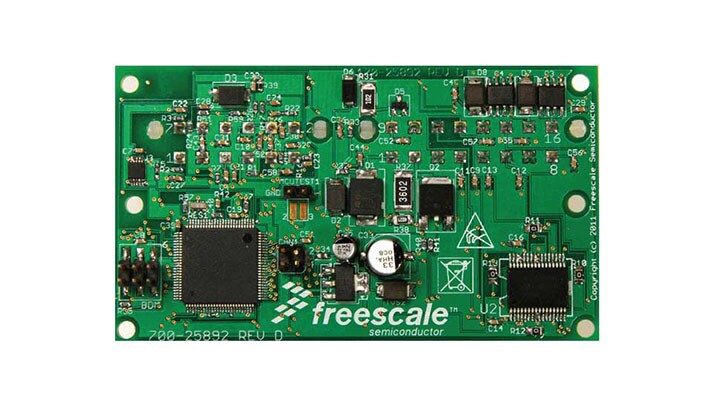

This reference design board supports the NXP® MM912_P812 engine control IC, which combines an MCU (S12P) and an analog control chip (MC33812), and is suitable for motorcycles and other single/double-cylinder small engine control applications. The analog control IC consists of three integrated low-side drivers, a pre-driver, a +5.0 V voltage pre-regulator, an MCU watchdog circuit, an ISO 9141 K-Line interface and a parallel interface for MCU communication. The archived content will no longer be updated and is for historical reference only.

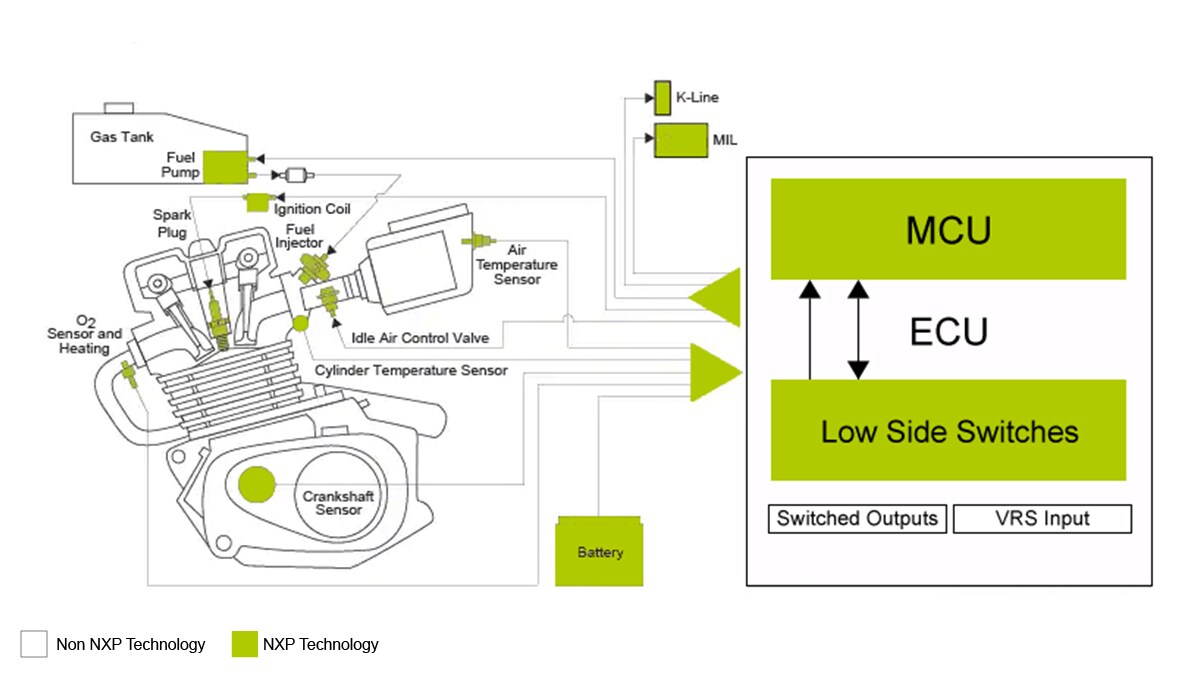

Blockdiagram

Design Files

Printed circuit board and circuit diagram: KIT912P812GRBR: Gerber files for the KIT912P812ECUEVM reference design

Documentation
