RDR-752 - 15 W dual output power supply, standby efficiency >83%

RDR-752 - 15 W Dual Output Power Supply with >83% Standby Efficiency

Overview

15 W wide-range input (85 VAC – 277 VAC), dual output (5 V / 1.2 A and 12 V / 0.75 A) converter featuring InnoSwitch3-EP (INN3673C-H601) with >83% standby mode efficiency, delivering up to 49 mA at 5 V, 0.3 W input power at 230 VAC, compliant with Ecodesign Directive (ErP) 15 W wide-range input (85 VAC – 277 VAC), dual output (5 V / 1.2 A and 12 V / 0.75 A) converter using InnoSwitch3-EP (INN3673C-H601) with >83% standby mode efficiency to deliver up to 49 mA from 5 V with 0.3 W input power at 230 VAC, Ecodesign Directive (ErP) compliant

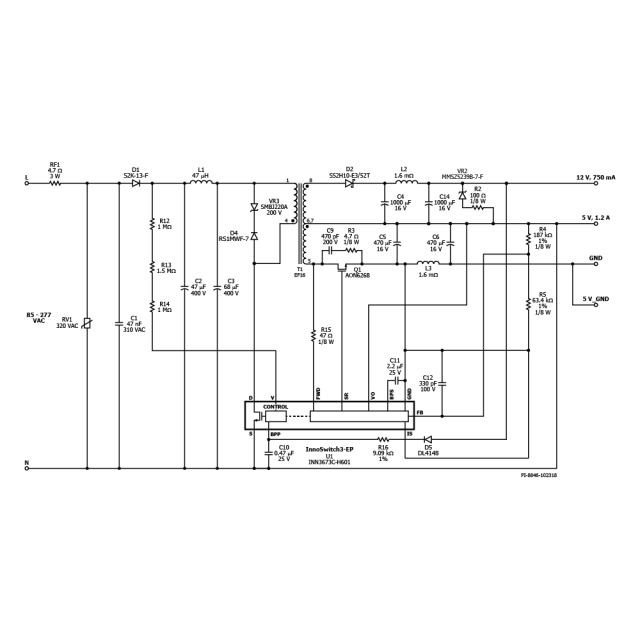

Blockdiagram

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
