Ready-to-use 65 W ultra-compact USB Type-C adapter using InnoSwitch3-Pro PowiGaN and MinE-CAP

Ready-to-Use 65 W Ultra-Compact USB Type-C Adapter Using InnoSwitch3-Pro PowiGaN and MinE-CAP

Overview

A mass-produced, fully qualified USB Type-C adapter that uses PowiGaN-based InnoSwitch3-Pro flyback switch IC and MinE-CAP bulk capacitor miniaturized IC to automatically adjust the output voltage. NOTE: This is not a design kit. It is a retail adapter and can be ordered by clicking the RDK Available button below. Universal input: 90 - 265 VAC full range output: 20V, 3.25A 15V, 3.0A 12V, 3.0A 9V, 3.0A 5V, 3.0AA mass-produced, fully qualified USB Type-C adapter with automatically adjustable output voltage using PowiGaN -based InnoSwitch3-Pro flyback switcher IC and MinE-CAP bulk capacitor miniaturization IC.Note: This is not a design kit. It's a retailed adapter orderable by clicking the RDK Available button below.Universal input:90 - 265 VACFull-range output: 20 V, 3.25 A15 V, 3.0 A12 V, 3.0 A9 V, 3.0 A5 V, 3.0 A

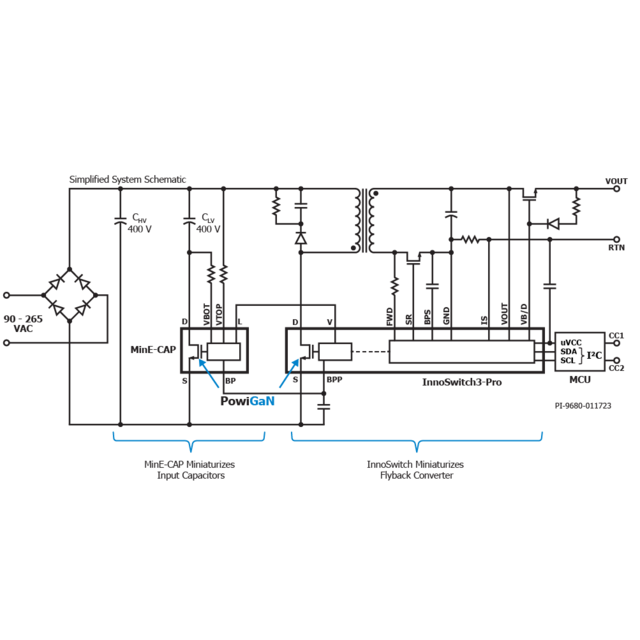

Blockdiagram

Design Files

65W_PowiGaN_USB-C_Adapter_data_sheet
