DI-201 - 6 W, high efficiency, adapter power supply

DI-201 - 6 W, High Efficiency, Adapter Power Supply

Overview

Design Highlights Eliminate optocoupler and all secondary side control circuitry EcoSmart® – Easily meets all existing and proposed international energy efficiency standards – CoC / China (CECP) / EISA / DoE / European Commission On/Off control provided for very light loads Constant efficiency <80 mW no-load power consumption at 230 VAC Energy Star 2.0 compliant active mode efficiency (77% vs. 70% requirement) Ultra-low leakage current: <5 μA at 265 VAC input (no Y capacitor required) Over-temperature protection – stringent Tolerance (±5%) and hysteretic recovery ensure safety in all PCB temperature auto-restart Output short-circuit and open-loop protection Easily complies with EN550022 and CISPR-22 Class B EMI standards Green packaging: Halogen-free and RoHS compliant

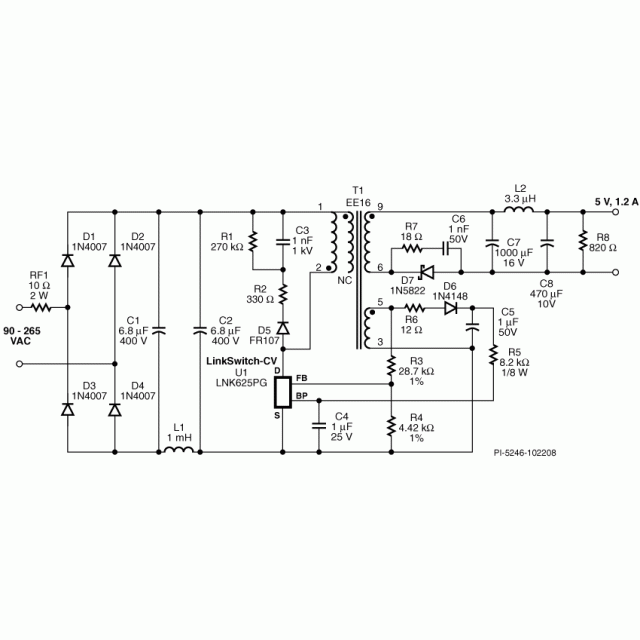

Blockdiagram
