DER-845 - 4.8 W non-isolated buck converter using 900 V LinkSwitch-TN2

DER-845 - 4.8 W Non-Isolated Buck Converter using 900 V LinkSwitch-TN2

Overview

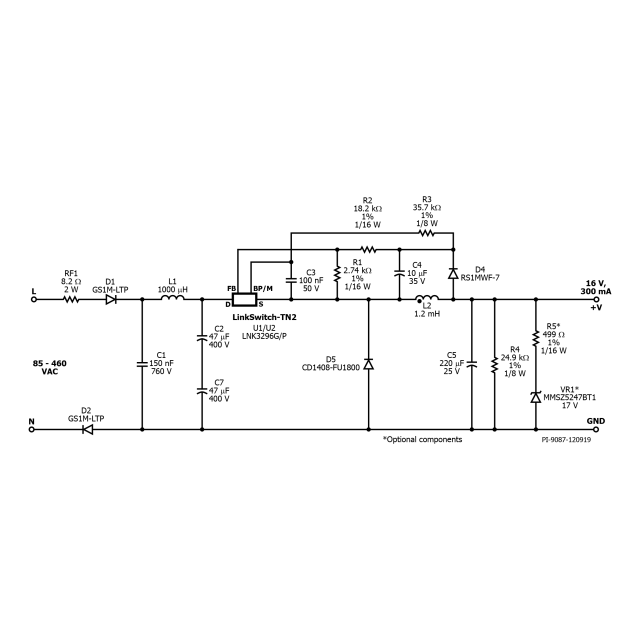

4.8 W non-isolated step-down converter (85 VAC – 460 VAC input; 16 V, 300 mA output) with 900 V LinkSwitch-TN2 (LNK3296G/P) for industrial and white goods applications in areas with high and unstable power supply voltages Application 4.8 W non-isolated buck converter (85 VAC – 460 VAC input; 16 V, 300 mA output) using 900 V LinkSwitch-TN2 (LNK3296G/P) for industrial and major appliance applications in regions with high and unstable mains voltage
