DER-234 - Efficient 18 W power supply using small transformer core size

DER-234 - High Efficiency 18 W Power Supply Using a Small Transformer Core Size

Overview

Summary and Features Low component count Very low no-load input power (<150 mW at 230 VAC) High active mode efficiency (81%) Easily meets ENERGY STAR 2.0 80% efficiency requirements Easily meets the U.S. Energy Independence and Security Act of 2007 76% of requirements easily met for EU CoC v4 and EuP Tier 2 80% of requirements Very high efficiency in both standby and sleep modes Excellent transient load response Hysteretic thermal overload protection with auto-recovery Meets single point failure limited power requirements (<100 VA) Power Integrations eSIP thin package can meet thermal specifications and radiated EMI without potting, QP margin >6dB

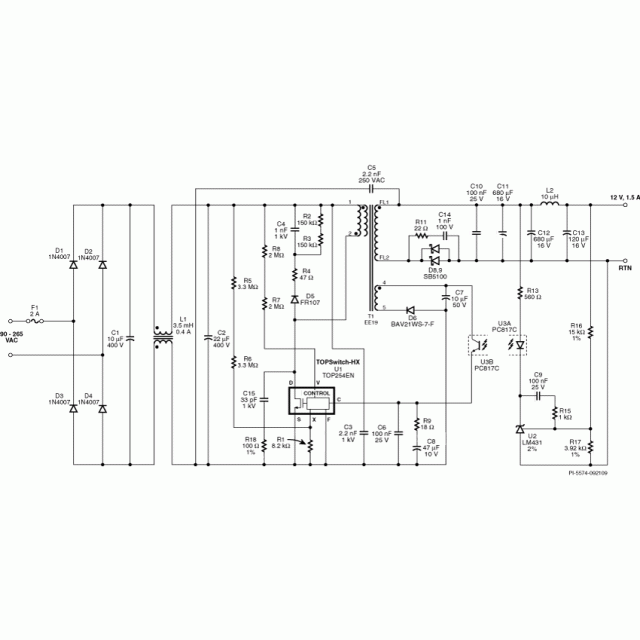

Blockdiagram

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
