MAXREFDES161#: Frequency synthesizer

MAXREFDES161#: Frequency Synthesizer Shield

Overview

Introduction

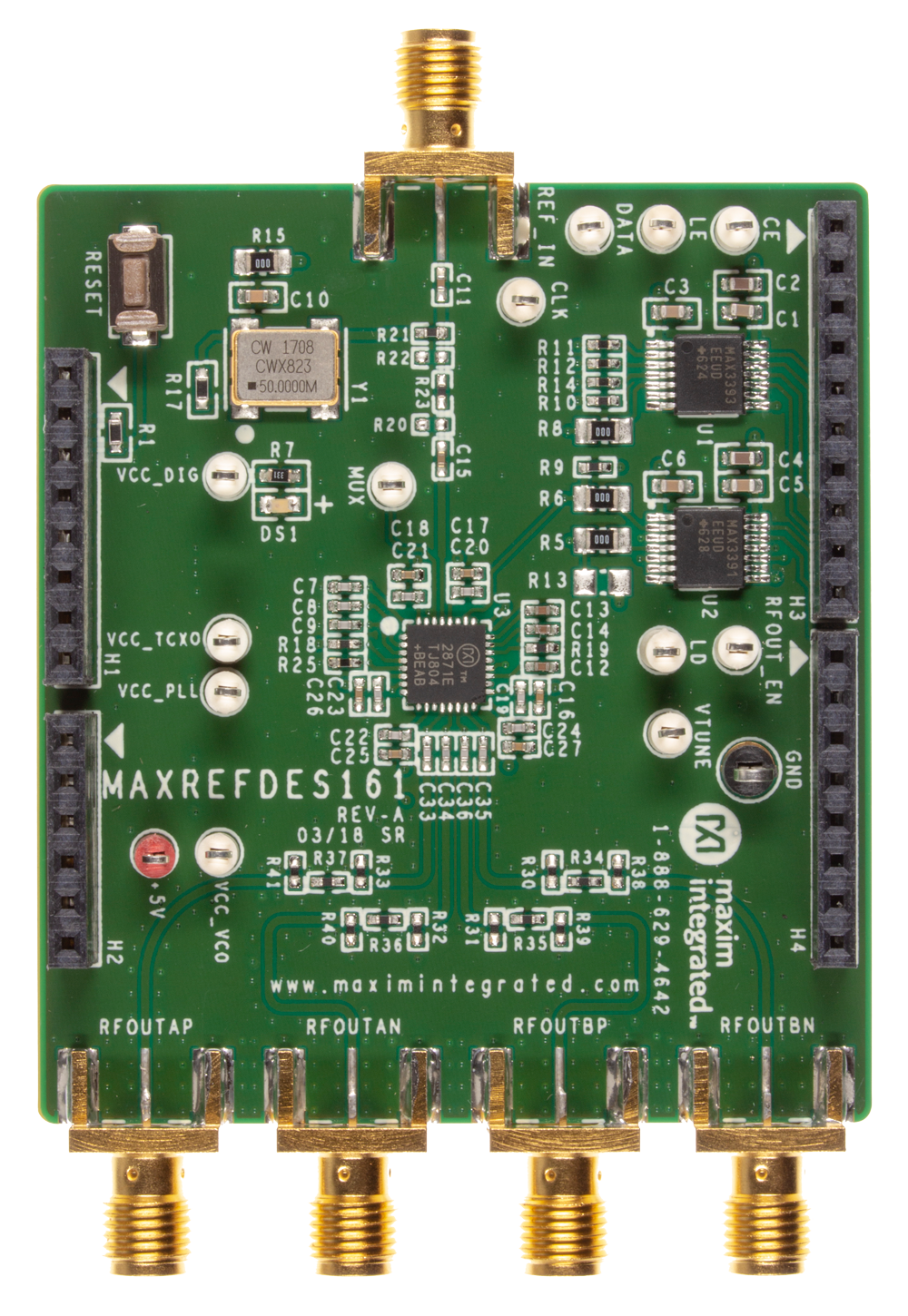

MAXREFDES161# is a high-performance frequency synthesizer capable of generating frequencies from 23.5MHz to 6GHz. The on-board level translators allow the board to be compatible with +3.3V and +5V microcontroller platforms. Moreover, the low-noise low dropout regulators (LDOs) provide clean power supplies for optimal performance. The board is designed specifically for the Arduino^® form-factor pinout.

Features

MAX2871 Fractional/Integer-N Synthesizer/VCO
+3.3V and +5V compatible logic
SMA output connectors
On-board 50.0MHz crystal oscillator
Mbed^® library
Arduino shield form factor

Applications

Microwave Radios
Clock Generation
Wireless Infrastructure
