SONOMA (MAXREFDES14#): Isolated Power Measurement Subsystem Reference Design

HD pictures

AC measurement applications often require electrical isolation to protect the system and user from high voltages. Galvanic isolation is often achieved by using bulky sensor voltage/current transformers or by isolating the data and power interfaces from the measurement subsystem. However, these approaches take up considerable space, have hidden costs and design challenges.

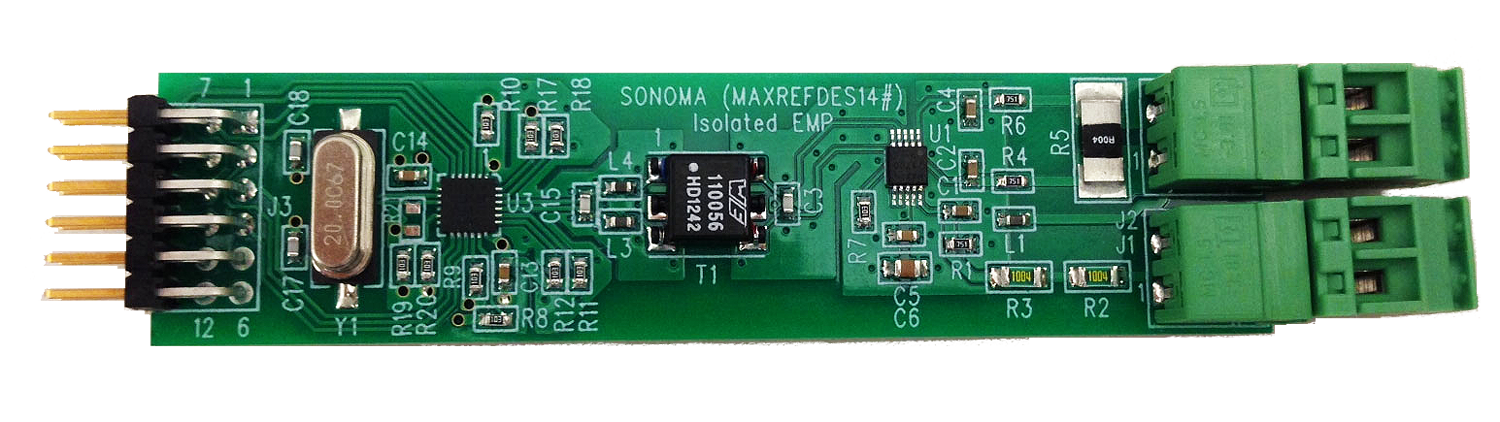

The Sonoma (MAXREFDES14#) power measurement subsystem reference design utilizes a single pulse transformer to achieve electrical isolation from the system and uses a resistor as the sensing element. The result is a small, cost-effective circuit board.

The Sonoma design features an isolated power measurement processor ( MAX78615+LMU) ; a multi-channel, high-precision analog-to-digital converter (ADC) ( MAX78700 ); a pulse transformer; an optional 20MHz crystal; and the ability to convert AC voltage and current into a Detection resistor for measuring signal. Featuring embedded load monitoring unit (LMU) firmware, non-volatile memory for calibration and configuration data, Sonoma is a complete measurement subsystem that can be integrated into any design.

Figure 1. Sonoma subsystem design block diagram.

Competitive Advantage

• Built-in non-volatile memory for calibration and configuration parameters

• Complete electrical isolation using a single transformer

• Small circuit board size

• Low BOM cost
