STM32F407ZGT6 with core board development board

Overview

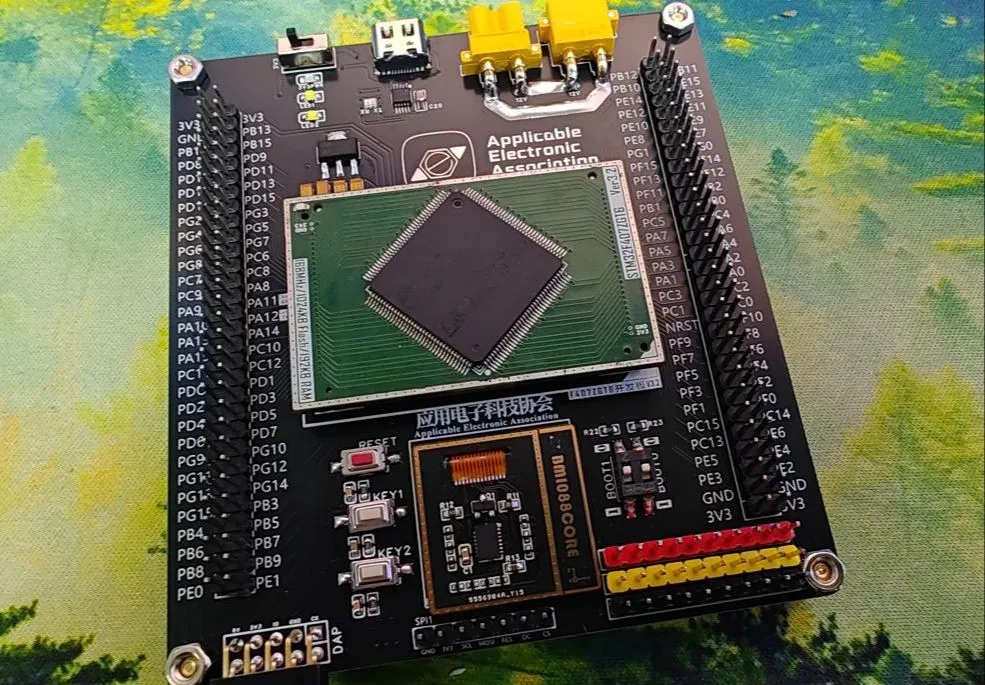

The STM32F407ZGT6, used with the core board development board, has all pins brought out. It supports CH340 USB to TTL conversion, gyroscope connection, and other functions. It can also convert 12V to 5V, 3.3V, etc. It features multiple LEDs and user buttons. The startup mode can be changed using DIP switches.
