Bz4l1Hu2z

stm32_demo_24.10.12


Overview

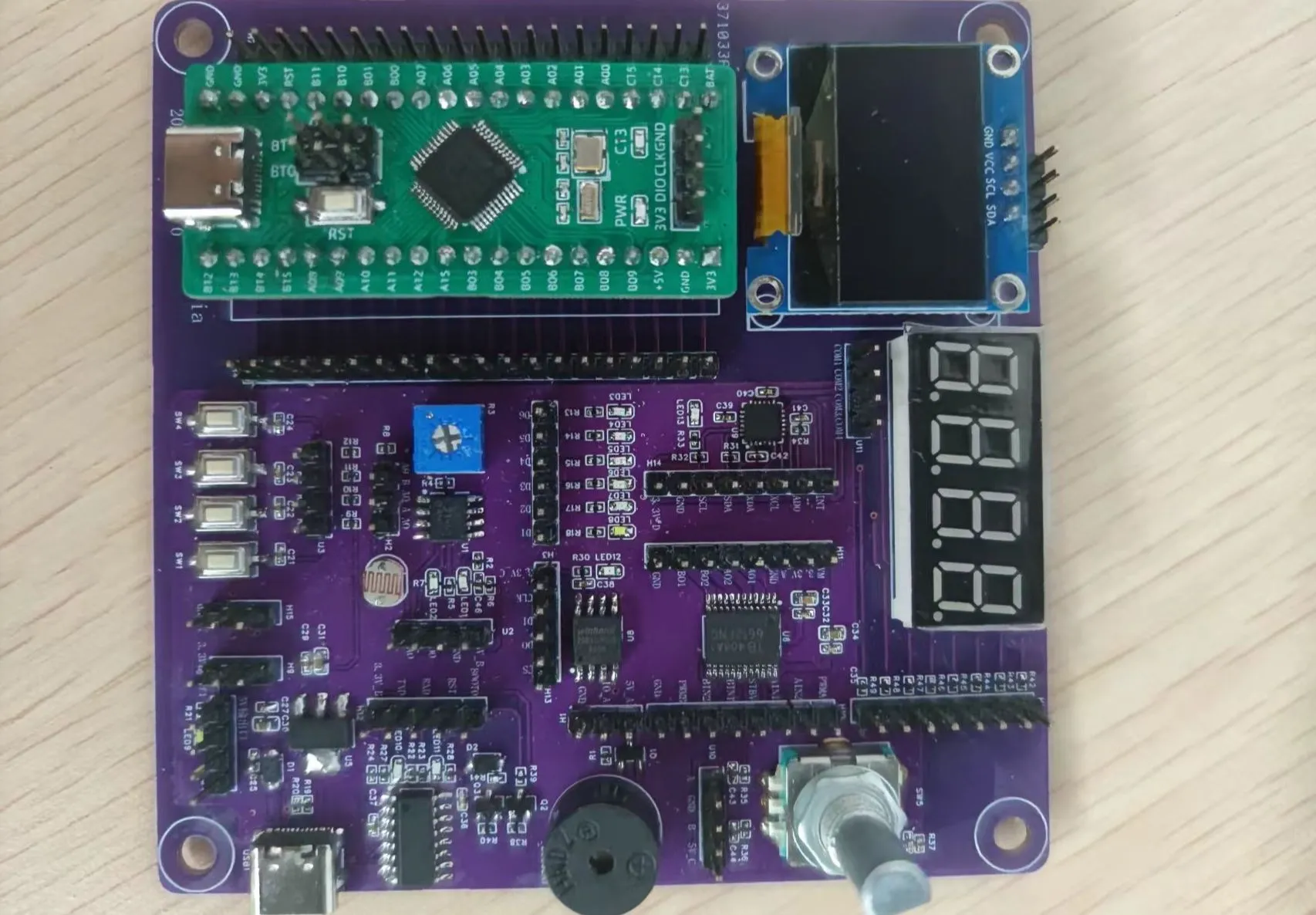

# Schematic Diagram This development board circuit includes a buzzer circuit, a photosensitive (thermal) circuit, an LED circuit, a button circuit, a Type-C power supply circuit, a motor drive circuit, a USB to serial port circuit, a Flash memory circuit, a gyroscope and accelerometer circuit, a rotary encoder circuit, a digital tube circuit, and an OLED module circuit. **PS:** Each module circuit has its own independent power supply. Power only the module circuit you need. All modules share a common ground and do not require individual connections. The minimum system board requires grounding to be connected to the development board. **
# Suitable for: Those learning STM32 with Jiangsu University of Science and Technology. PS: Due to board size limitations (within 10x10, free PCB fabrication by JLCPCB), not all module circuits are shown. You can modify, add, or remove modules according to your learning needs.
Development board video URL: https://www.bilibili.com/video/BV19Rt6evEhV/?spm_id_from=333.999.0.0
Please point out any errors!
