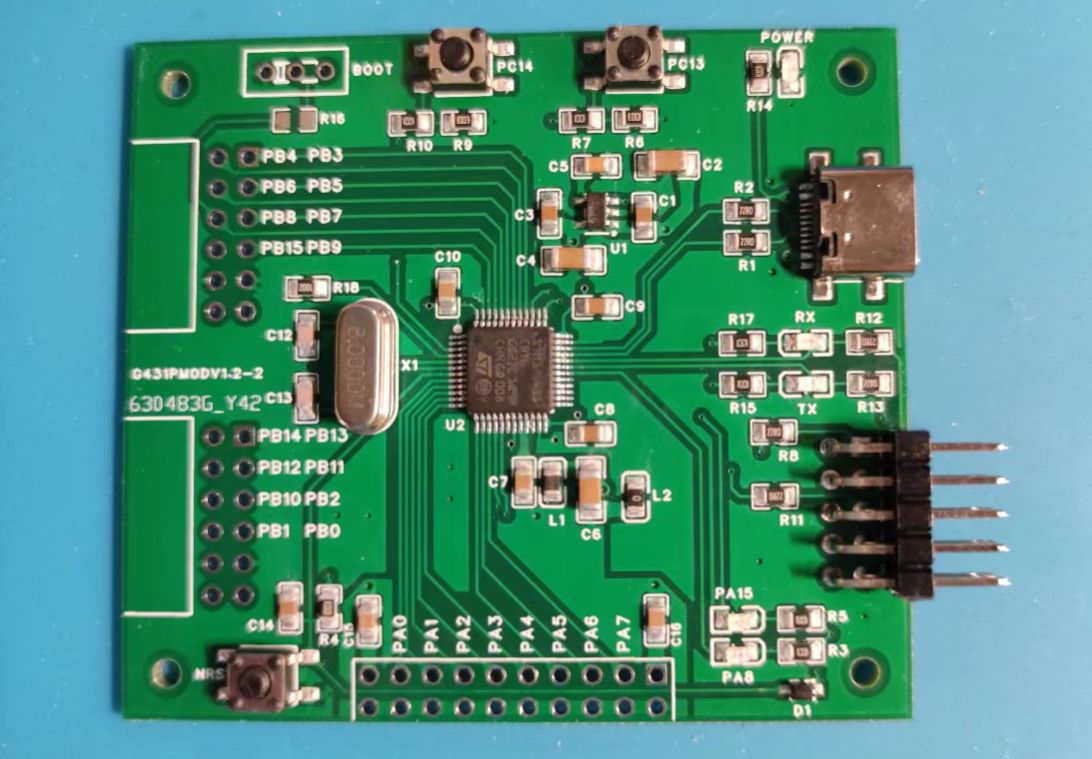

STM32G431CB development board

Overview

- Introduction to STM32G431
- Arm® Cortex®-M4 32-bit MCU+FPU, 170 MHz /213 DMIPS
- Up to 128KB Flash, 32KB SRAM
- Rich analog peripherals
- Mathematical operation acceleration
- Hardware part
- ADC/DAC interface, corresponding to PA0 ~PA7
- 2-way PMOD interface, corresponding to PB0~PB15
- USB Type-C interface, connected to the microcontroller USB and responsible for power supply
- SWD+UART debugging interface
- Reset button (silk screen NRST), startup selection switch (silk screen BOOT)
- User LED (PA8, PA15), user buttons (PC13, PC14)
- Software part
- developed based on STM32 HAL library, transplanted to FreeRTOS
- Attachment provides bare metal and RTOS routines

Design Files

STM32G431CB.zip
