The most powerful T12 integrated portable soldering iron with gyroscope and buzzer, PD power supply

Overview

This project is a completely open source portable electric soldering iron project developed by Eddddddddy_Wang, the up owner of Bilibili (watch the project demonstration: https://www.bilibili.com/video/BV1734y1D7u2?zw)

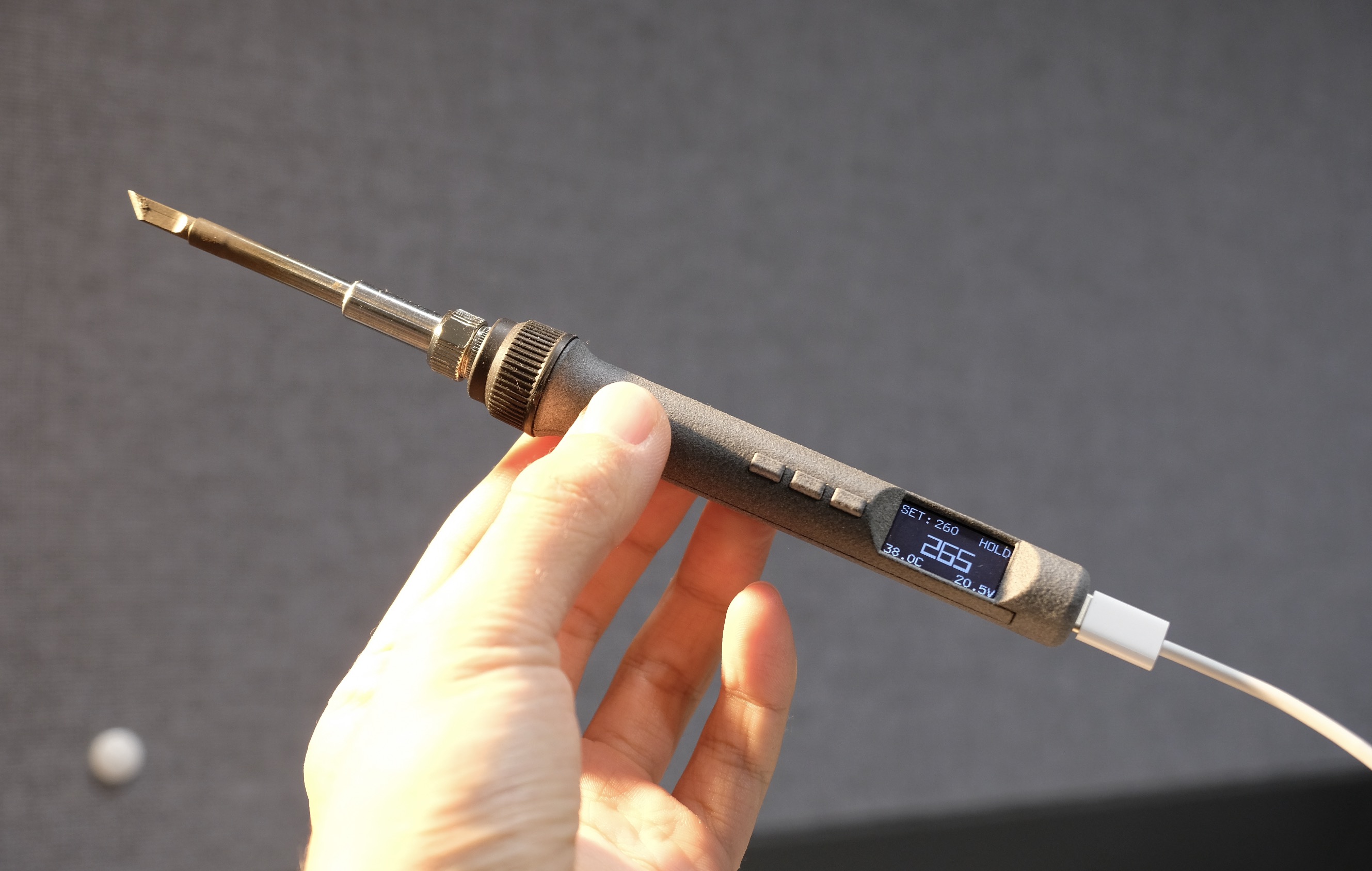

Use atmega328p as the main control chip, 128x64 OLED screen, built-in gyroscope and buzzer. Able to read the control part circuit temperature and input voltage, main control voltage, and main control temperature. It has the function of automatic start and stop.

Design Files

Source code + PCB, etc.
