STM32F103C8T6 Minimum Development Board (Supports Type-C Serial Port Download)

This project references several similar projects on open-source platforms and modifies existing materials. It also incorporates personal ideas and aims to facilitate exchange and learning among users. It
references circuit routing, component layout (using Bilibili up 星宸),
and similar projects on this platform.
The handle board outline in the diagrams also references related projects on this platform.

This project references several similar projects on open-source platforms and modifies existing materials, while also incorporating personal ideas. Its purpose is to facilitate exchange and learning.
Project features include
: 1. Type-C serial port download (referencing mature open-source projects);
2. External 5V power supply to prevent flow into the computer's USB port
; 3. Foolproofing (preventing high voltage and high current from incorrect power supply insertion, short circuits, etc.);
4. An OLED screen interface with an IIC interface on the minimum development board (referencing a mature open-source project);
5. All component power supply pins are handled with capacitors,
etc.
Project parameter example
: Figure 1 -- Power circuit:
uses a TYPE-C-16P interface as the power supply interface.

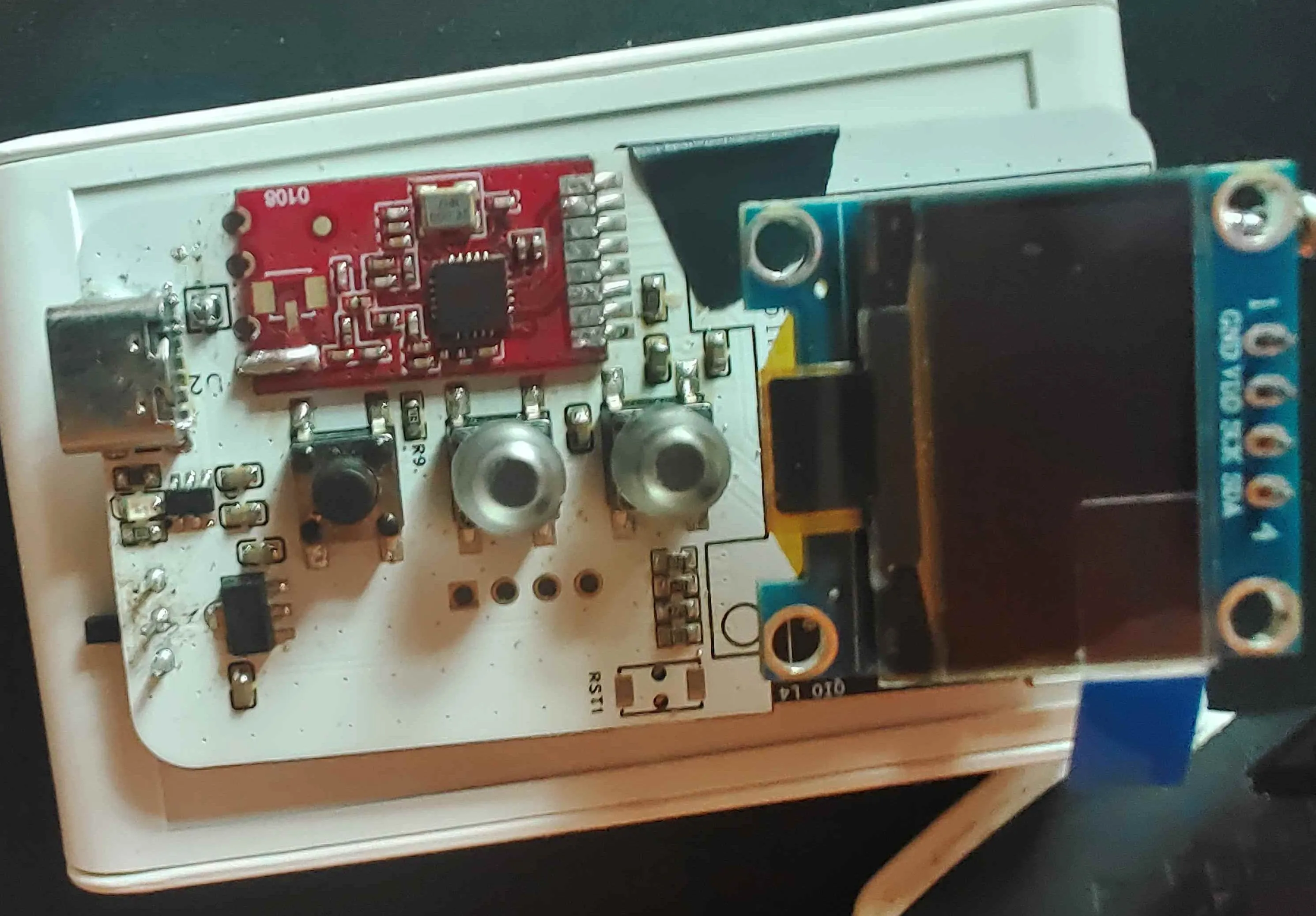

Example Figure 2 (handle design referenced from a mature project on this platform) .
Shortcomings:
1. The 4-layer board design undoubtedly increases cost
; 2. There are many components near the chip, which increases the difficulty of soldering the main chip last
; 3. This is my first open-source project, so details may not be fully explained.
Finally, thanks to LCSC for providing the platform for learning.
