ESP32 thermal imager

Overview

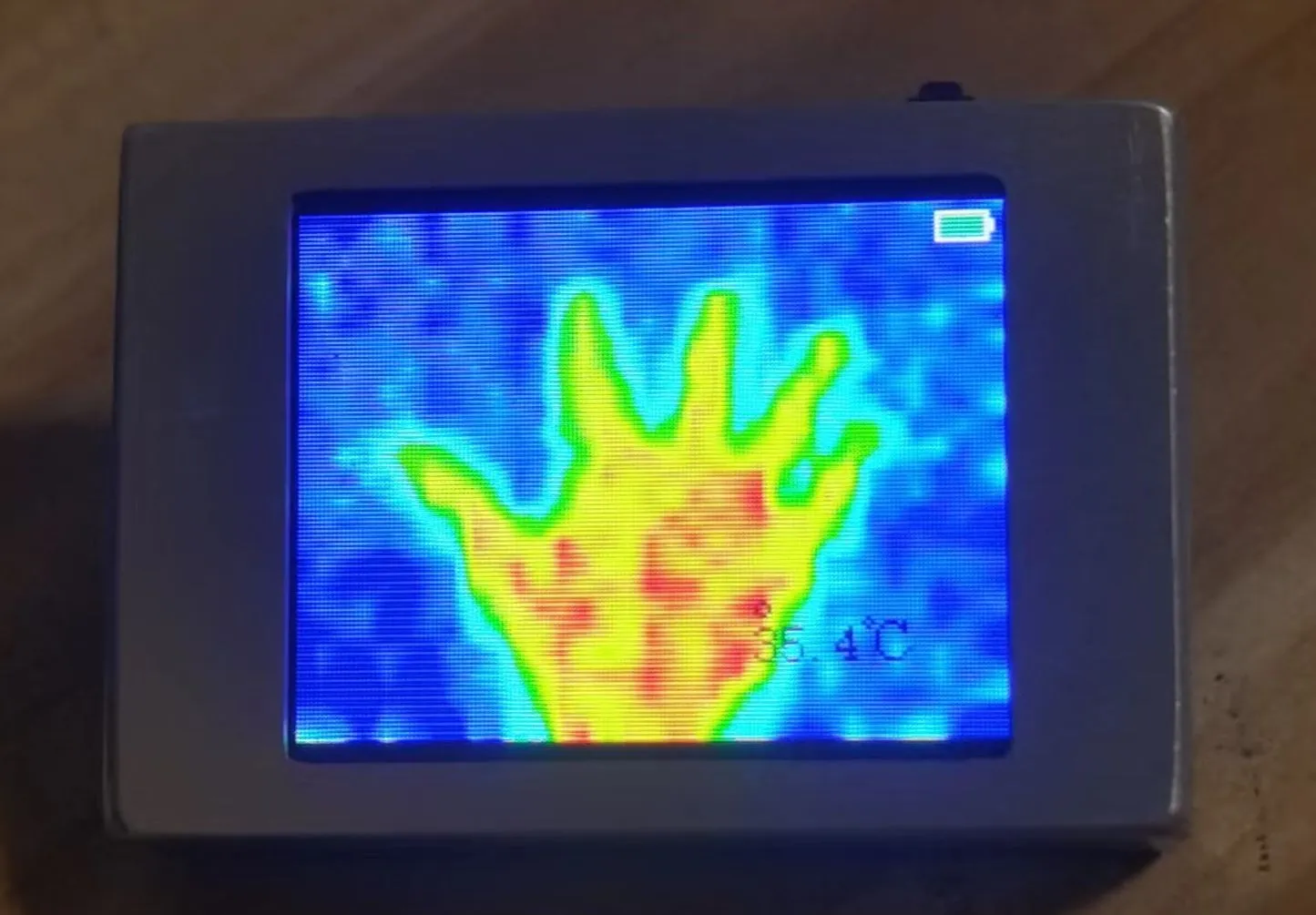

This device uses an ESP32 microcontroller as the main controller to drive an MLX90640 for infrared thermal imaging. It can be used for real-time monitoring of circuit board temperature and temperature distribution, and features automatic tracking of maximum and minimum temperatures. After connecting to a network, it can communicate with a computer in real-time via TCP, transmitting temperature data to the computer.
