Cubli Balanced Cube | Three-Way FOC Development Board

Overview

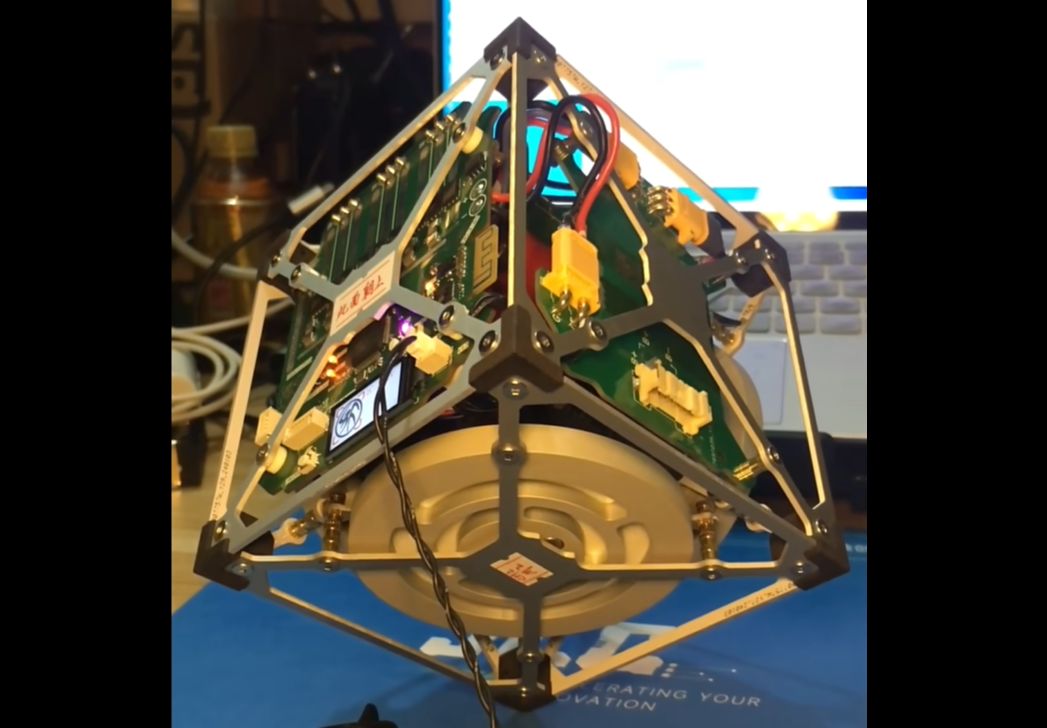

The production process is being documented (replica difficulty 5 stars, LD2808 motor still used). For those who haven't seen the finished product video, you can click here:
https://www.bilibili.com/video/BV1XK421C7t8/?spm_id_from=333.999.0.0&vd_source=bbf6a497ecef4bee87eacb92c812c613

Note: This project's hardware is prohibited from commercial use and large-scale sales.
August 26, 2024: Updated software open-source link (currently only automatic standing single-sided balancing is available; automatic standing single-point balancing will be updated after optimization): https://gitee.com/handmade-rice/balanced-cube
August 26, 2024: Updated structure installation steps; see attached document for details!
