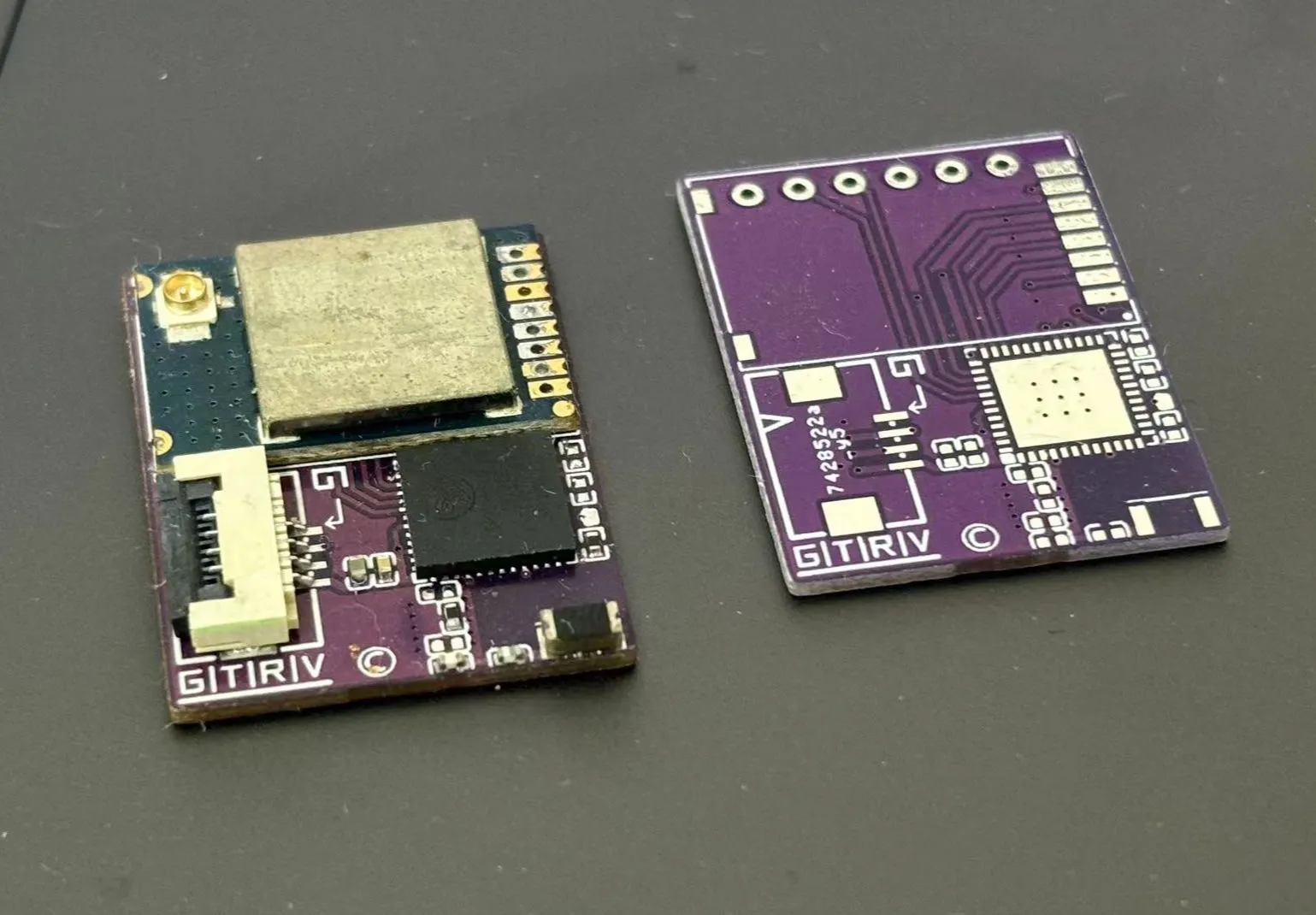

ESP32 & 2.4G Asset Tag Monitoring Reader

Overview

The system supports WIFI data reporting
, MQTT tag information reporting or reading
from a host computer, and standalone
serial port data interaction with
MQTT data distribution. Its
compact design
(20*26.5mm) facilitates integration into various devices.
Implemented functions
include asset tag management, processing asset online/lost assets, asset tag data distribution, asset tag query, online/offline quantity query, and real-time monitoring of asset changes.
