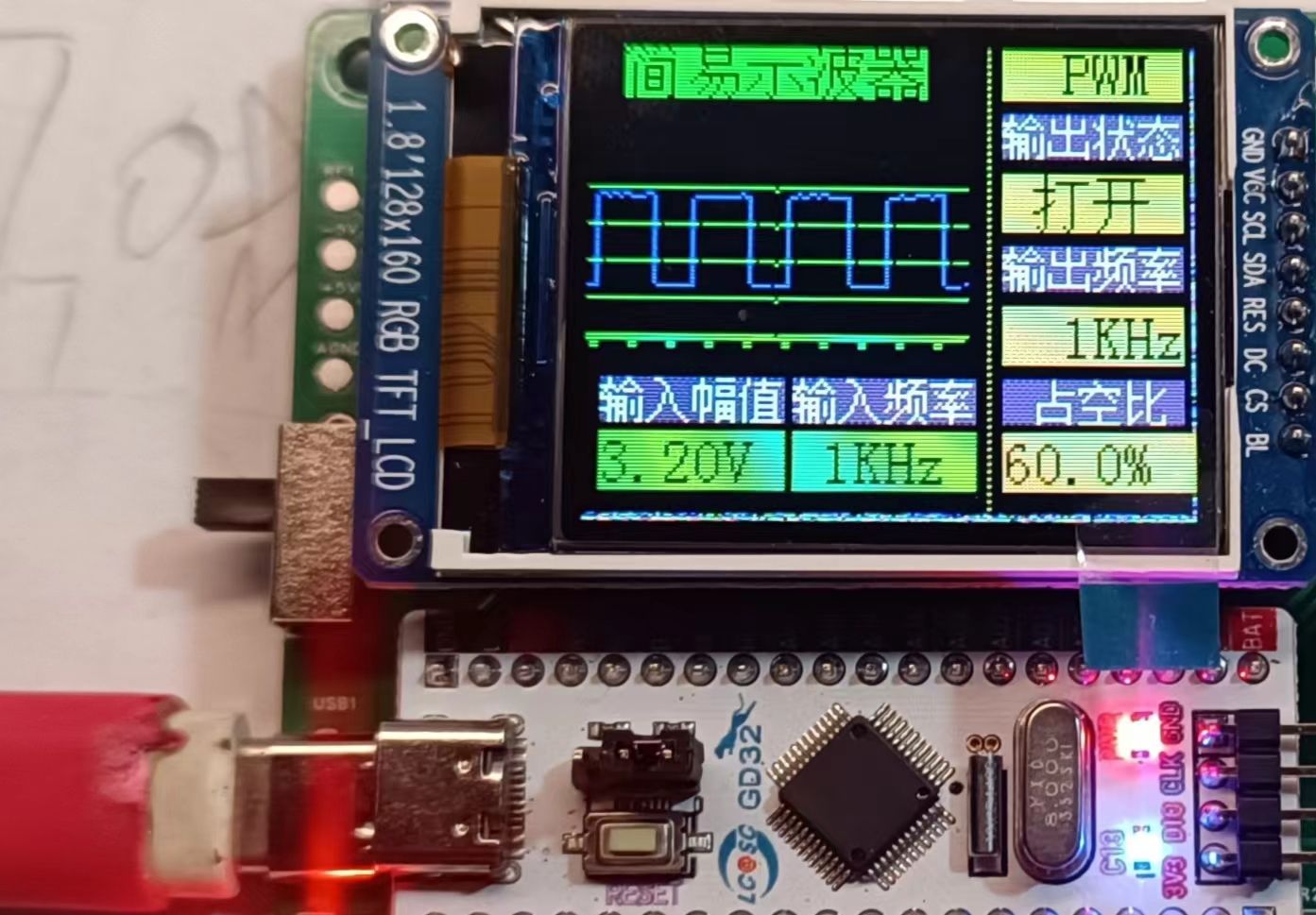

#Bootcamp# Simple Oscilloscope Design Based on GD32 +1751244A


  This simple oscilloscope based on the GD32 microcontroller utilizes analog-to-digital signal processing technology. The signal under test is input to the oscilloscope, sampled by the analog signal sampler, and converted into a digital signal. Higher sampling frequency results in higher digitization accuracy, thus providing the oscilloscope with higher resolution and more precise waveform display.
Main functions: 1. Waveform signal acquisition: The waveform signal is input to the analog input pin of the microcontroller via external circuitry, and sampled using the microcontroller's analog-to-digital converter (ADC). 2. Waveform processing: The acquired analog waveform signal undergoes digital processing, including data processing and filtering. 3. Waveform display: The acquired waveform is displayed in real-time on an LCD screen for user observation and analysis.
Hardware components: 1. GD32F103C8T6 microcontroller: As the core control unit of the project, responsible for acquiring, processing, and displaying waveform signals. 2. LCD screen: Used to display waveform images and provide a user interface. 3. External signal source: Provides the waveform signal to be measured; this can be any circuit or device that generates waveform signals.
Software Design: 1. Waveform Signal Acquisition and Processing Program: Utilizes the microcontroller's ADC module for digital sampling and processing of analog signals, achieving waveform data acquisition and processing. 2. Waveform Display Program: Through an LCD driver, displays the processed waveform data on the LCD screen, forming a waveform image. 3. User Interface Program: Designs a simple and intuitive user interface, including waveform display, trigger settings, and measurement parameter display functions, providing a user-friendly operating experience.
Project Features: 1. Ease of Use: Employs a simple hardware and software design, making the oscilloscope easy to operate and learn, suitable for beginners and enthusiasts. 2. Openness: The project has a certain degree of scalability and customizability; users can expand and optimize functions according to their needs. 3. Educational Value: As a simplified implementation of a digital oscilloscope, it can serve as a teaching experimental platform, helping students understand the working principle of oscilloscopes and the basic methods of digital signal processing.
Through the above design, a simple digital oscilloscope based on the GD32F103C8T6 can be implemented for measuring and displaying waveform signals, possessing certain practical and educational value.
