JX-12F Development Board - Intelligent Mechanism

1. Module Description:
The JX-12F is a wireless module based on a WiFi+BLE single-chip SoC as the main controller. It can meet the development needs of low-power and high-performance IoT applications. The core processor JX-1001 of this module integrates 2.4G Wi-Fi (802.11b/g/n) and BLE5.0 baseband and MAC design. Its microcontroller subsystem includes a low-power 32-bit RISC CPU, cache, and memory. It has an advanced power management unit that supports multiple low-power modes. Peripheral interfaces include UART, GPIO, ADC, DAC, PWM, I2C, SDIO, SPI, IR remote, etc.

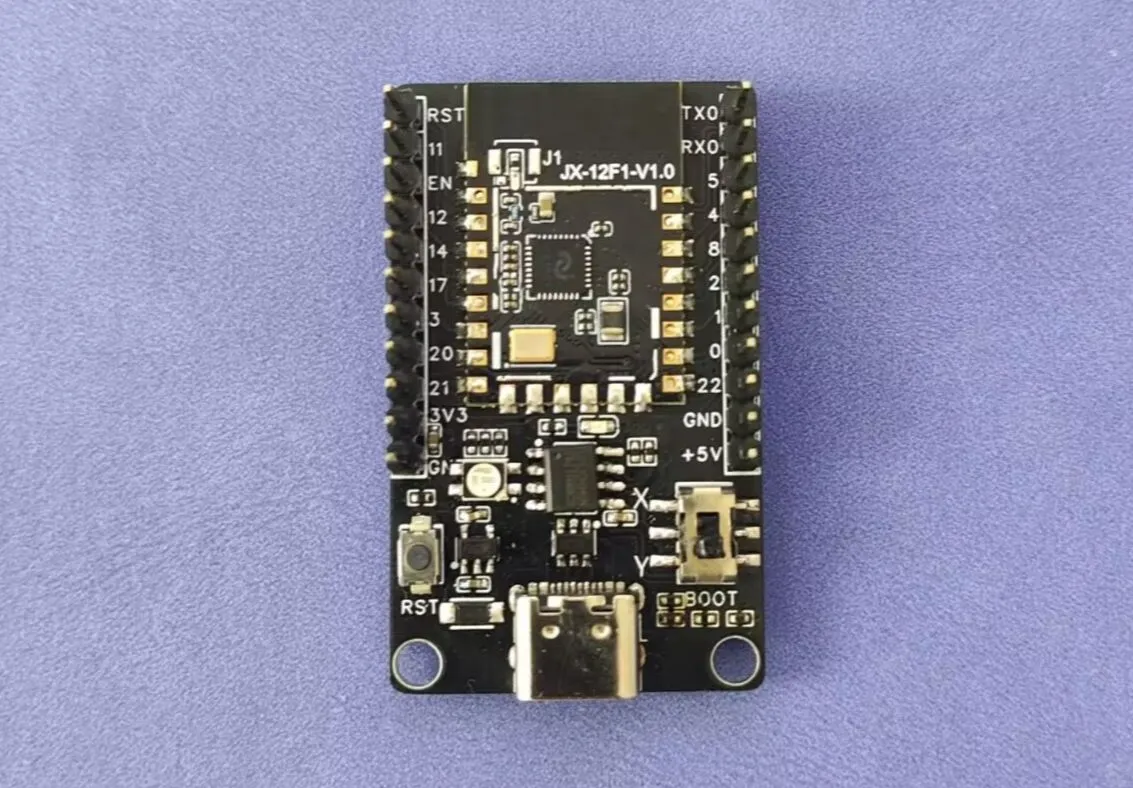

2. Physical Image:

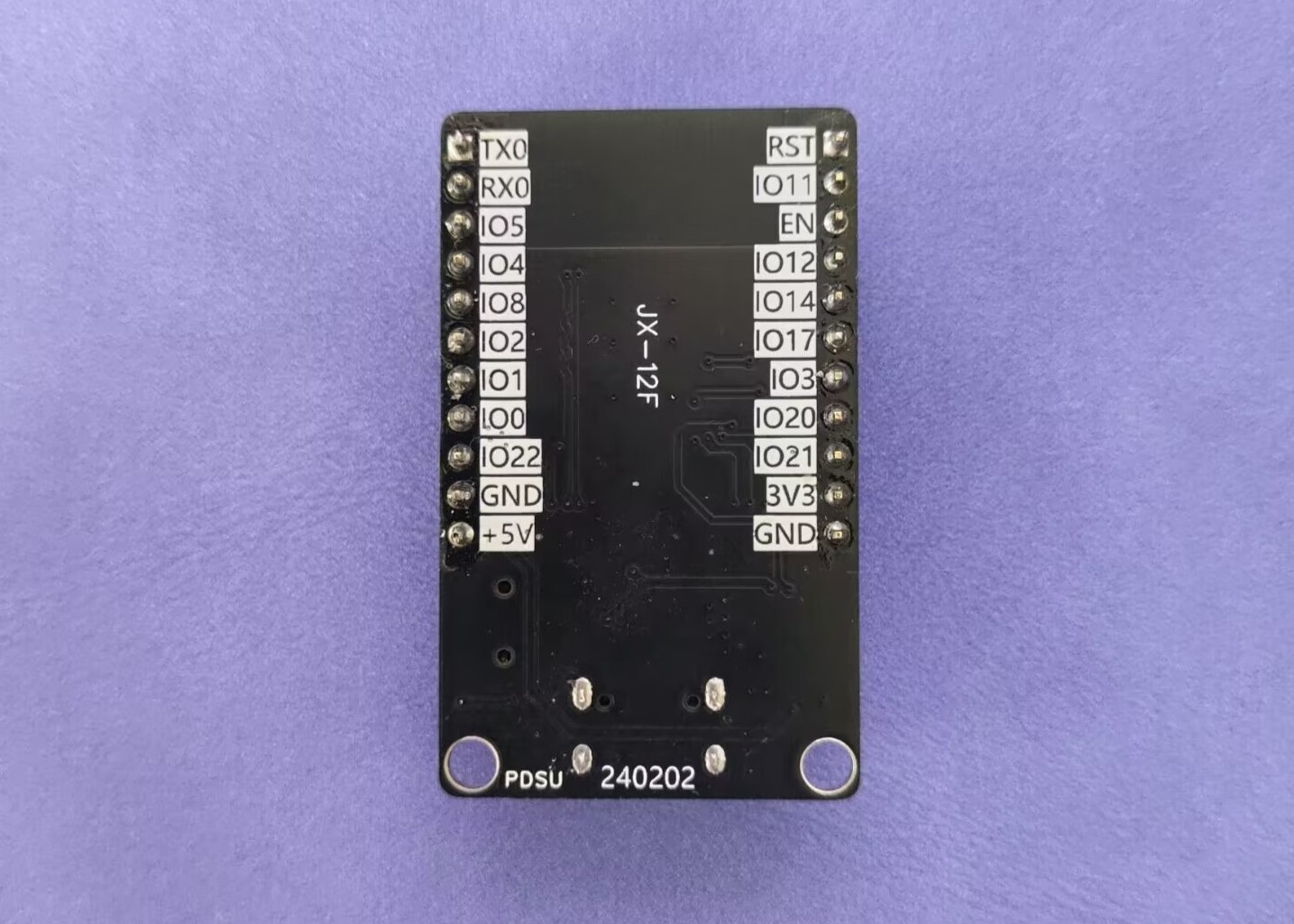

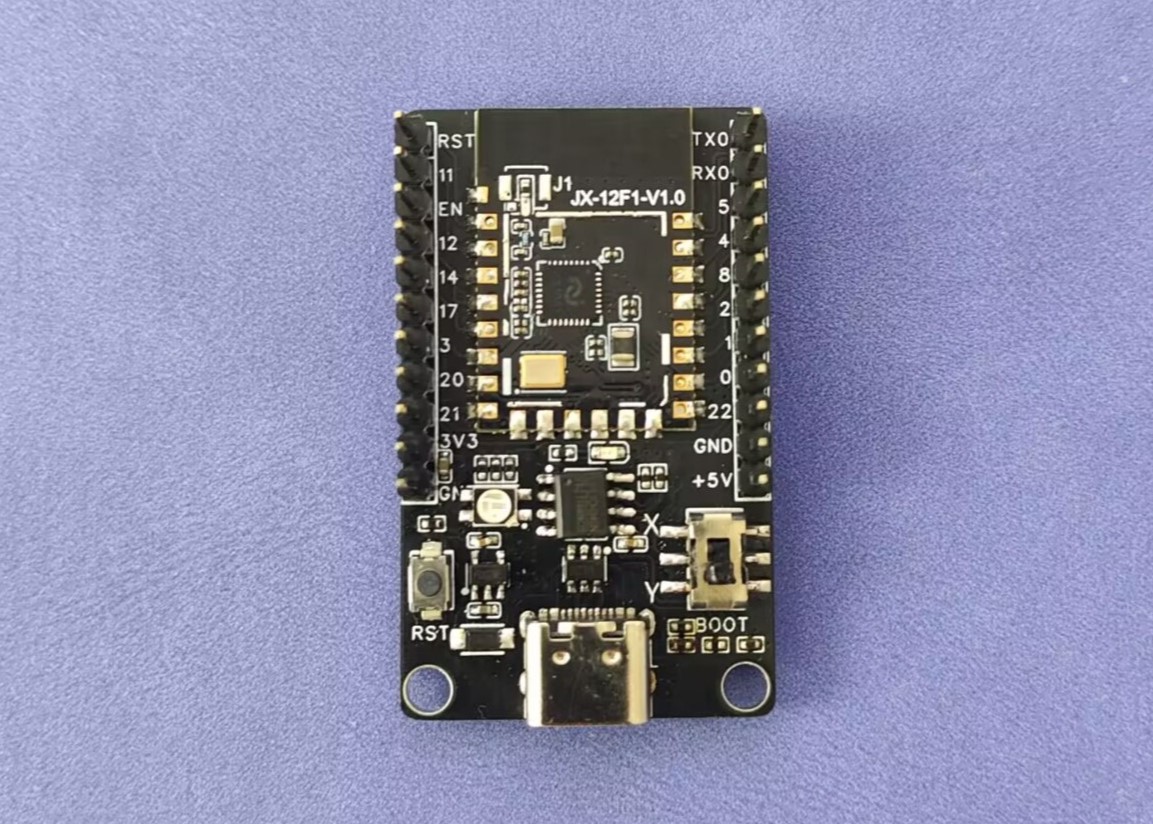

All pins are brought out. The board has an onboard CH340, and the serial port has bidirectional ESD protection against electrostatic discharge and rapid overvoltage. Silkscreen instructions: 240202 represents the date February 2nd, 2024; PDSU represents Pingdingshan University; JX-12F represents the module name;
3. Download tutorial
: Use a Type-C port to download. The board has a CH340 chip with a BOOT DIP switch: X: Download, Y: Run.
See the operation package below for detailed instructions. I'll update this later.
