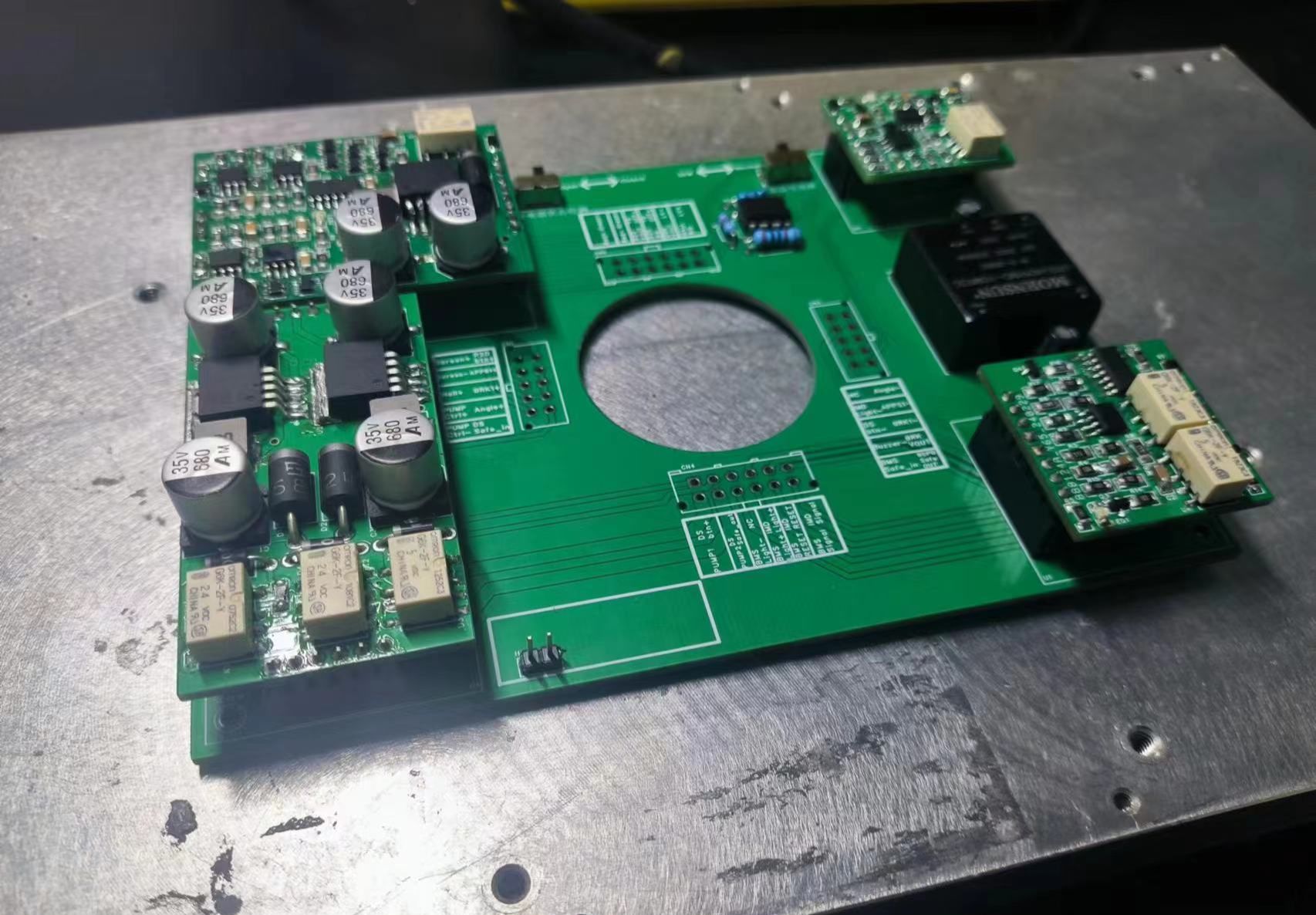

SafetyNodes

Overview

The core principle of Formula One racing is the pursuit of ultimate speed. Therefore, high motor speeds and high battery voltages mean a high risk factor. To ensure the safety of the car and driver, a safety circuit is essential. Only when this circuit is open can the car be powered on and run normally; hence the name "safety circuit." This circuit is actually composed of multiple safety switches connected in series. Each switch corresponds to a specific component on the car. When the component is functioning normally, the switch is closed. When all components are functioning normally, the safety circuit is open, indicating that the car can receive high voltage. During operation, if any component malfunctions, the safety circuit disconnects, automatically reducing the high voltage, thus protecting the car and driver.

Design Files
