T113_MIPI

Overview

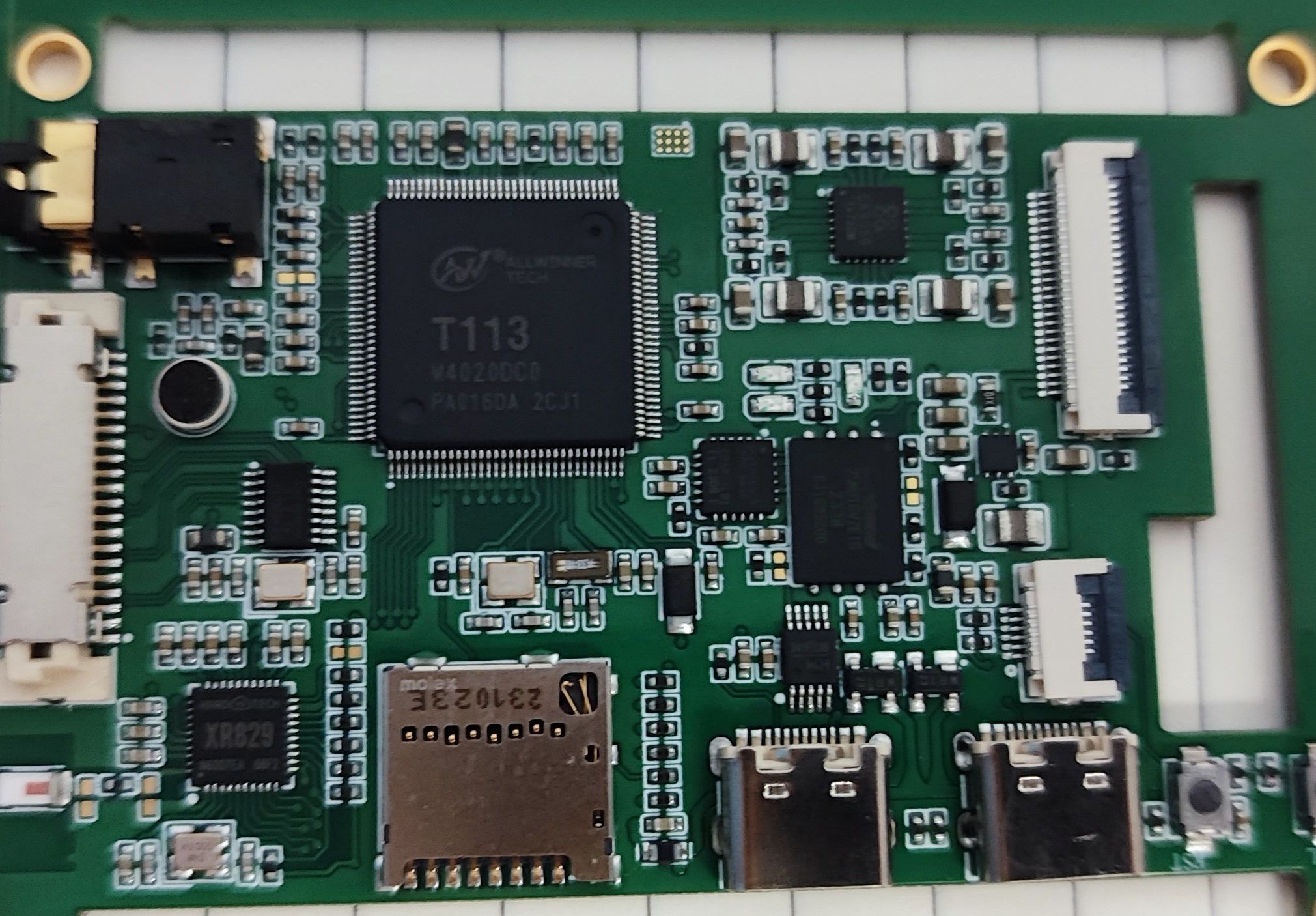

This core board is compact in size and boasts abundant onboard resources. All components are located on one side, while the back can be directly connected to a 3-inch MIPI LCD screen via an FPC cable. Onboard components include a CH340, MPU6050, hub, NAND flash, microphone, and XR829-WIFI. This core board can be debugged using only a single Type PC cable, making it extremely convenient. The debugging serial port, ADB interface, audio interface, USB, and GPIO are all brought out. It offers excellent expandability. All onboard resources have been tested and are working correctly.
