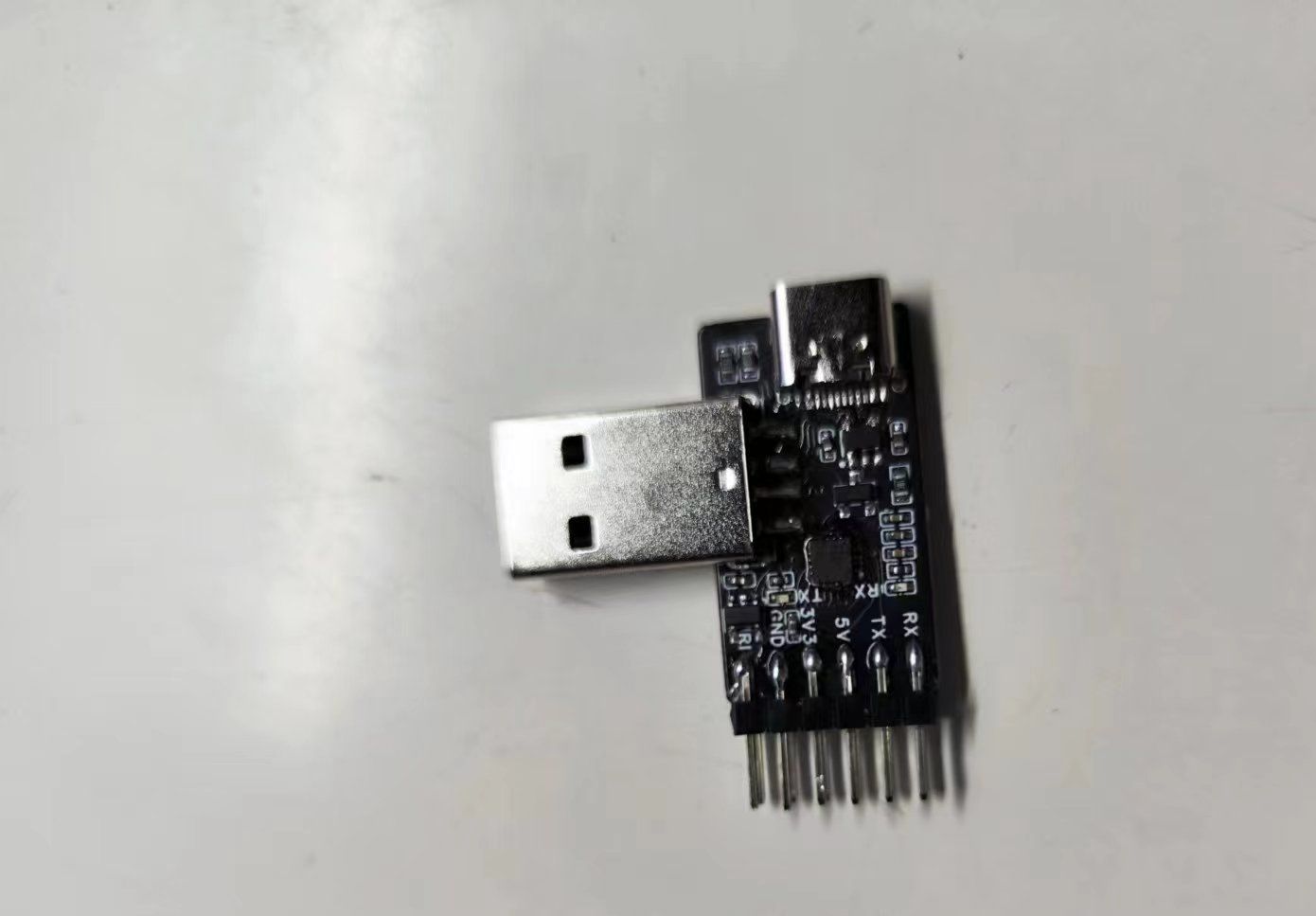

USB to TTL converter based on CH343P

Overview

This design uses single-sided surface-mount
0402 capacitors and resistors,
with all traces running at a 45-degree arc. All
CH343 pins are exposed.
This double-sided design is strictly prohibited from commercial use without the author's written authorization; otherwise, legal action will be taken. PS: Please refrain from criticism regarding hand-soldered components. Suggestions are welcome. Please use PCB version 1_1, which has been verified.
