15W Wireless Charger (TX): IP6821

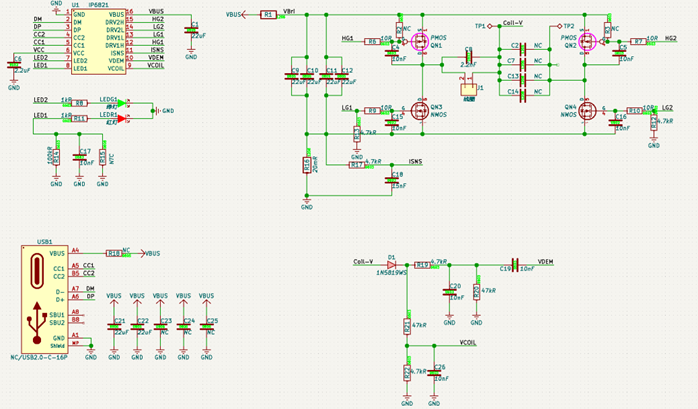

1. The IP6821 is a highly integrated wireless charging transmitter control chip compliant with the WPC qi standard. Internally, it integrates an H-bridge driver module, an ASK communication demodulation module, and the adapter fast charging sink protocol, among other essential wireless charging resources.
2. It supports foreign object detection; if a metal object is detected in the coil, operation will stop to prevent overheating.

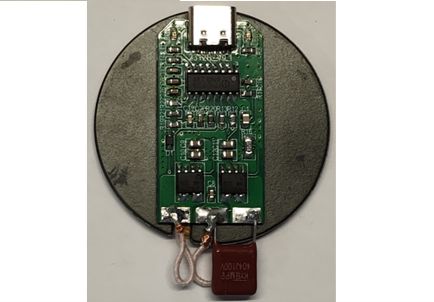

3. The WX15W-6821-0 represents the most cost-effective version of the IP6821 solution. It supports





wireless protocol standards


such as BPP, PPDE, and EPP. Compliant with WPC Qi standard




, wireless output power


5~15W,




input USB protocol


DP&DM, PD3.0,




input power


≤20W,












rated input voltage


5V/9V/12V,




standby power consumption


≤10mA,




charging height


≤5mm,




charging efficiency


70%~85% (including DC-DC conversion efficiency)




, charging area


10mm*10mm,




number of coils


1 ,




supports charging


one device at a time,












product certification


--












overcurrent protection


2.2A±10%,




overvoltage protection


none,




overtemperature protection


60℃~70℃,




foreign object detection


supported





. Note:

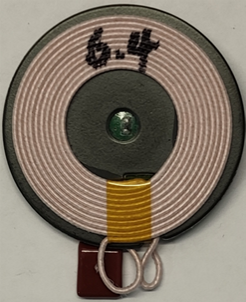

1. When the TX coil deviates significantly from the resonant point of the RX coil of the device being charged, the wireless charging efficiency will decrease, which is normal.
After the charging efficiency decreases, the temperature of the MOS will rise. Therefore, the wireless charging coil needs to be attached and fixed to the PCB board so that the PCB board can dissipate heat through the coil. Furthermore, the NTC resistor can effectively collect the overall temperature of the board and coil.
