480Mbps USB Isolator Adum 3165

Overview

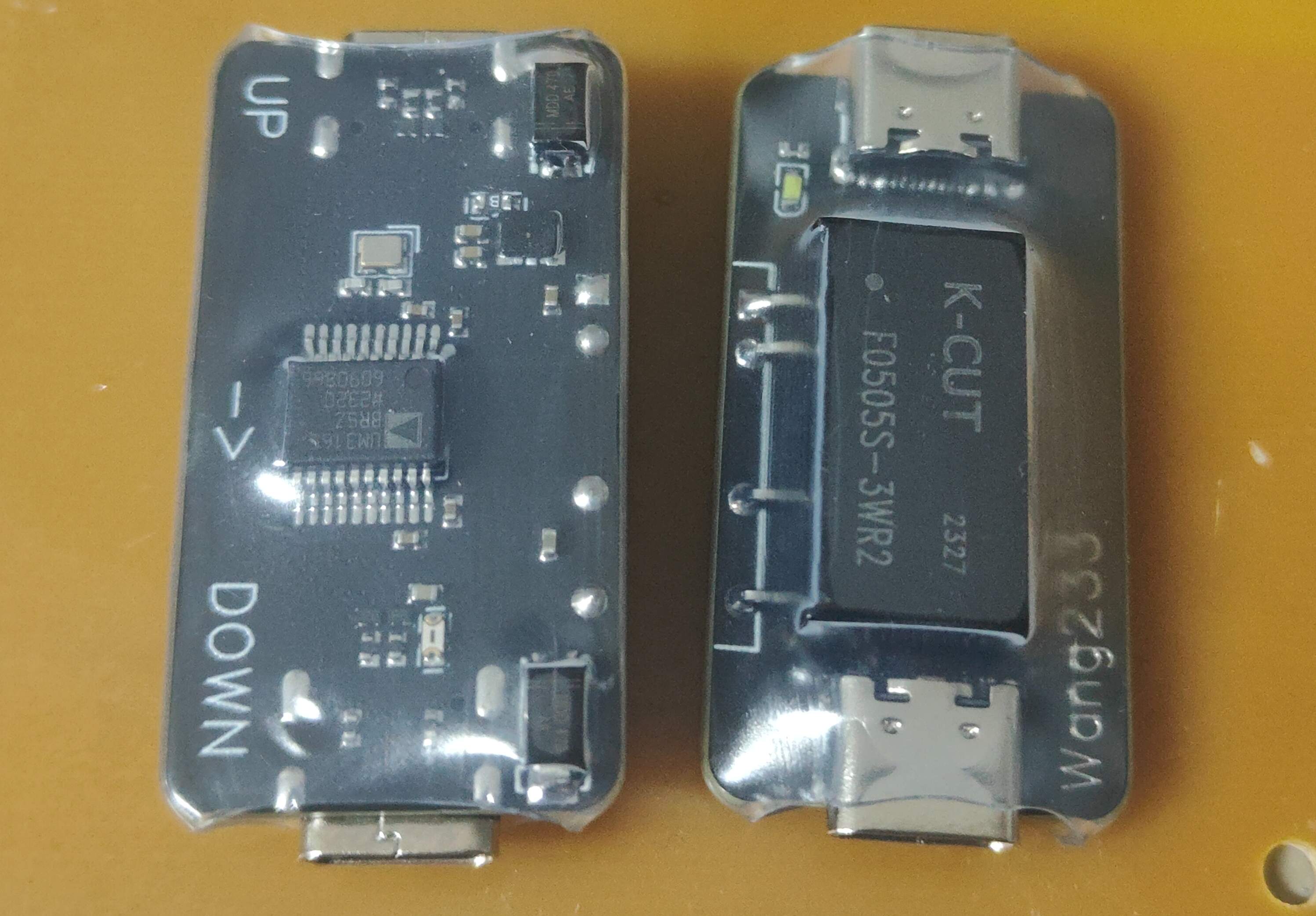

Based on ADUM3165, a 480Mbps USB isolator

was tested for maximum transfer speed (external hard drive):

the LED indicates the host side, and the other end is the device side.
Maximum output is 5V 500mA,
theoretically 3KV isolation.
(Contact group: 334245983)
Low speed, high speed, and full speed automatic switching.
