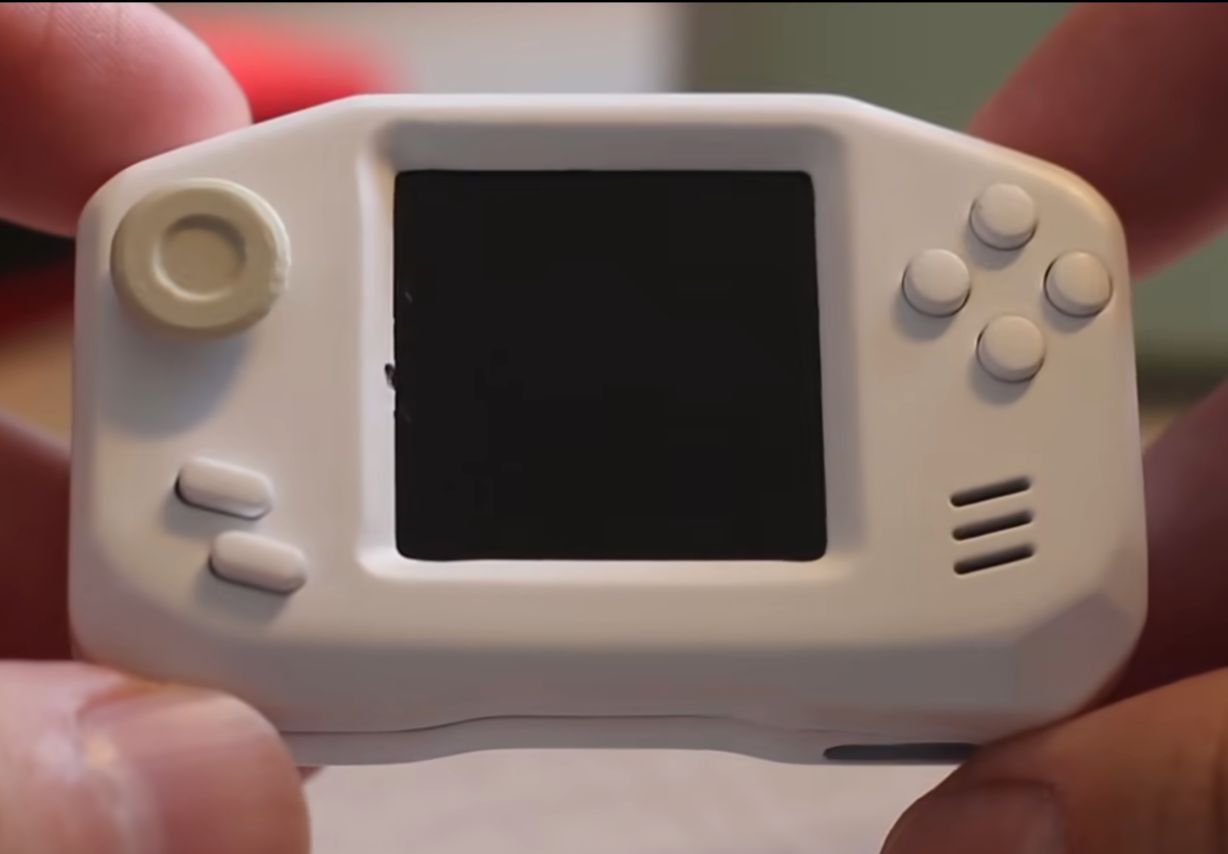

【Rachel】ESP32S3 Mini Game Console 0603 Modular Version

Overview

Forairaaaaa's original design is no longer publicly available; only the latest version using the ESP32S3 development board is available: https://oshwhub.com/eedadada/mason.

Forairaaaaa's Rachel project description:
Rachel
ESP32 mini game console, great feel
and retro, can't do anything (sad).
Project purpose: Cute. All
components are 0603, you can solder them on a teppanyaki grill.
Project link: https://github.com/Forairaaaaa/Rachel.
Video introduction: https://www.bilibili.com/video/BV1Ga4y1f7d3/.

For detailed information, please refer to the original project: https://oshwhub.com/eedadada/mason.

Regarding the shell design adapted for this version, unfortunately, Forairaaaaa's original project is no longer publicly available. I will modify it based on the current version provided by them when I have time. I will upload it later.

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
