TYPE-C debug adapter board

TYPE-C debug adapter board [For internal company use only]

0. PCBA Version
The current description of the compatible version is V01-20231214

. 1. Scope of application:
This project is a TYPE-C debugging adapter board, which is suitable for projects with TYPE-C connectors for debugging. For example, for the 8155 host, S61 FCM project

2. Version Description:
This PCBA has two versions, one for the 8155 host and the other for the S61 FCM project (the pin definitions of the TYPE-C male connectors for the two projects are different); they are not interchangeable. Please pay attention to whether they are applicable to the current project before use.

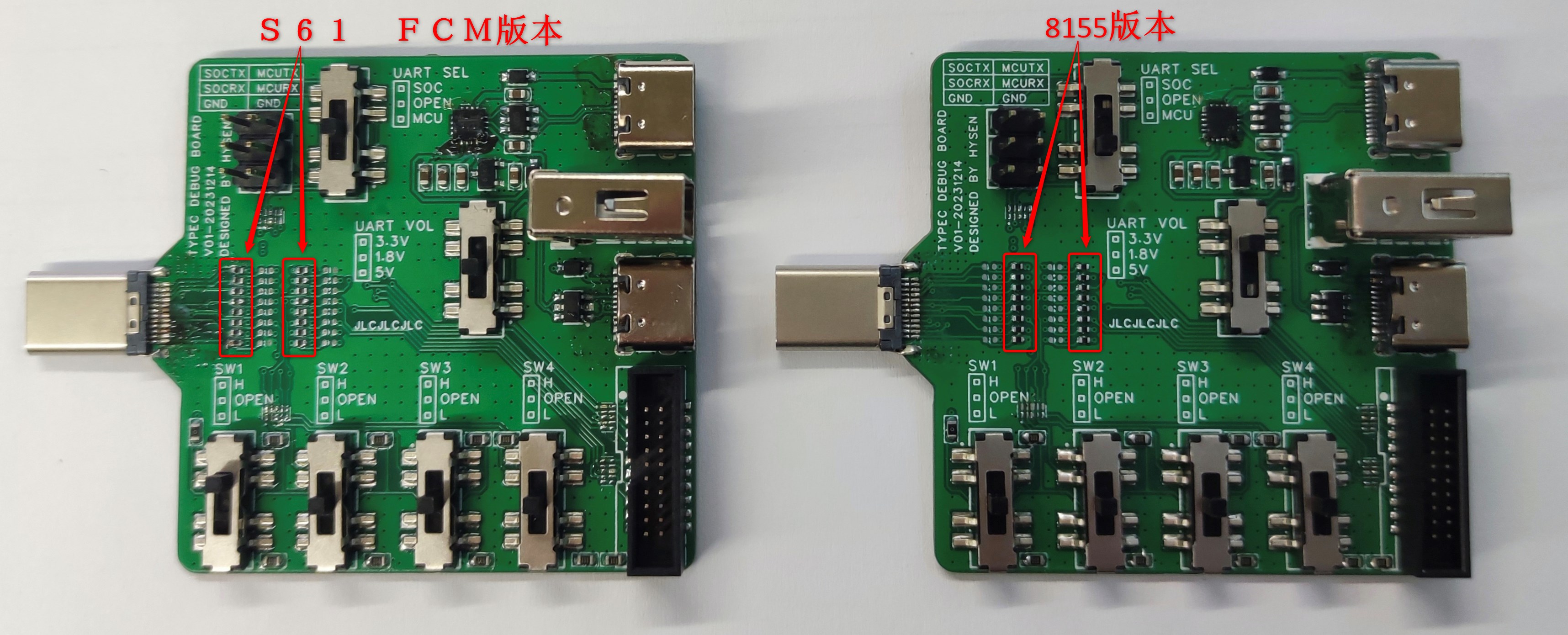

The method of differentiation is shown in the figure below:
PN1: 0402 package resistors in columns 1 and 3 on the right side of the TYPE-C male connector in the S61 FCM version; the TYPE-
C male connector in the S61 FCM version does not support reversible insertion. PN2: 0402 package resistors in columns 2 and 4 on the right side of the TYPE-C male connector in the 8155 version; the TYPE-C male connector in the 8155 version supports reversible insertion.


3. Function Description:

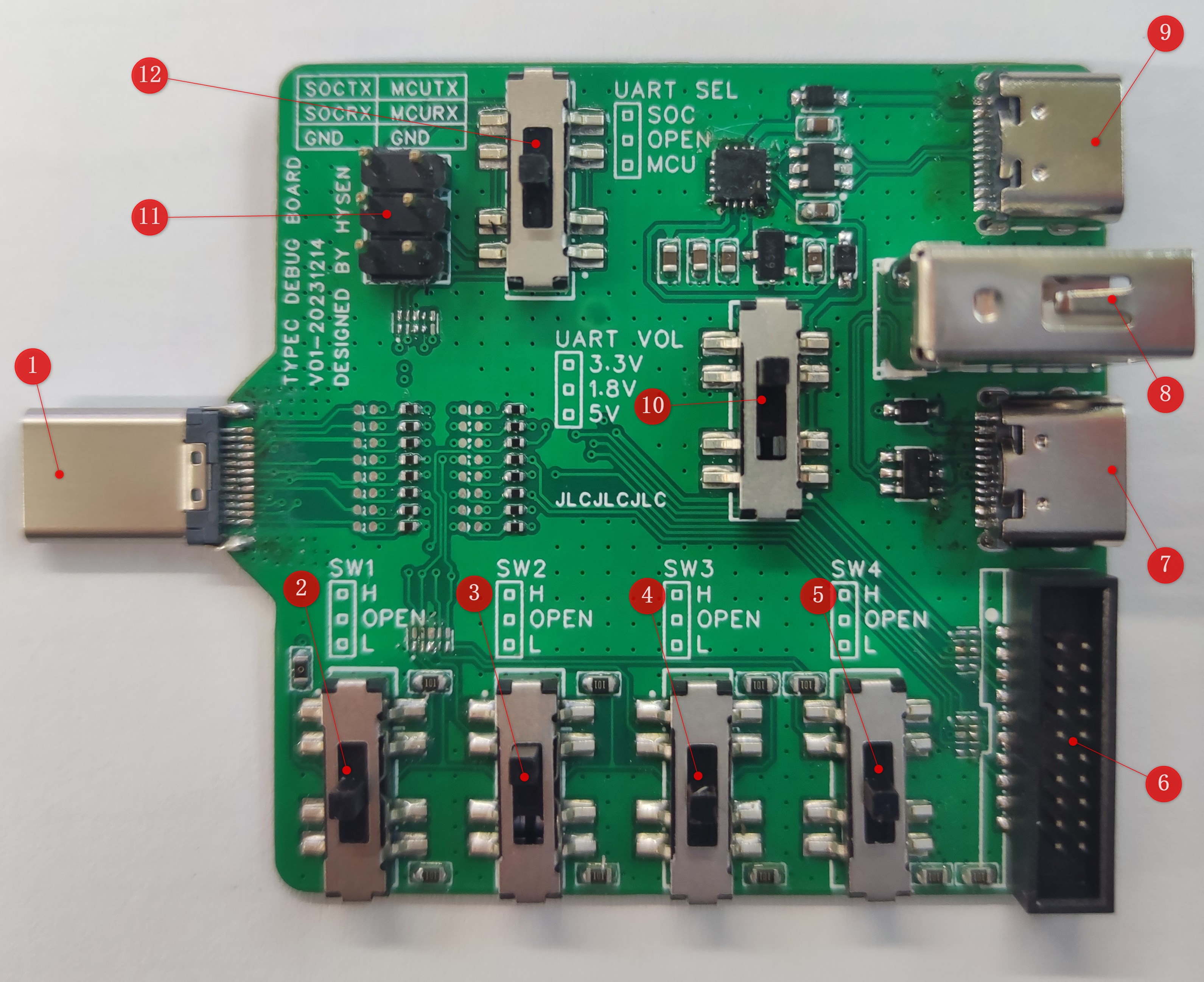

3.1 USB TYPE-C Male Connector: Used to connect the TYPE-C female connector on the DUT PCBA.
8155 Project Function: Used to connect the TYPE-C female connector on the DUT PCBA, supports reversible insertion.

S61 FCM Project Function: Used to connect the TYPE-C female connector on the DUT PCBA, does not support reversible insertion.

3.2 SW1 Switch:
8155 Project Function:
Switch to upper position -> NA
switch to middle position -> Normal operation
switch to lower position -> USB programming mode.

S61 FCM Project Function (SoC_EMU0):
Switch to upper position -> NA
switch to middle position -> Normal operation
switch to lower position -> Enter JTAG boundary scan mode.

3.3 SW2 Switch:
8155 Project Function: NA.

S61 FCM Project Function (PR0_PRU0_GPO4):


3.4 SW3 Switch:
8155 Project Function: NA.

S61 FCM Project Function (WatchDog_Shield_EN):
Switch to upper position -> Shield WTD watchdog function.
Switch to middle position -> Normal operation
switch to lower position -> NA.

3.5 SW4 Switch:
8155 Project Function: NA.

S61 FCM Project Function (USB_BOOT):

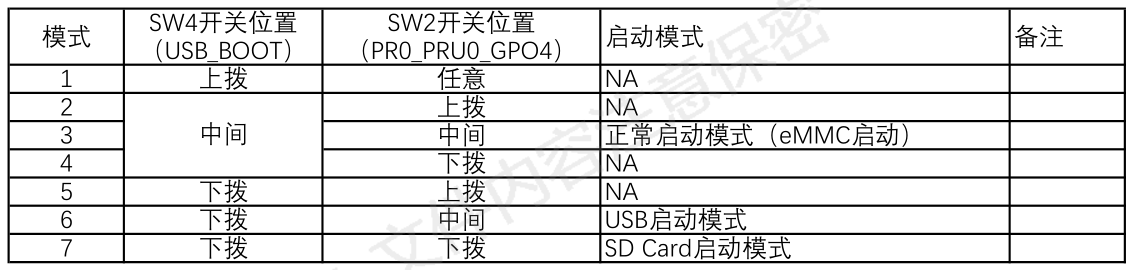

3.6 DC-3_1.27mm_20P Connector:
Connects to J-LINK via a gray ribbon cable, using the JTAG/SWD interface to program the MCU in the DUT.
Gray ribbon cable link: https://item.taobao.com/item.htm?spm=a1z09.2.0.0.17182e8d8Ox6LK&id=743314902167&_u=l1f60ejq4e4f
Gray ribbon cable specifications: 1.27 to 2.54 20P, 200mm

Note: Both ends of the gray ribbon cable have a foolproof design, as shown in the picture below. Pay attention to the orientation when installing the gray ribbon cable, otherwise the MCU software inside the DUT cannot be programmed.

(Image to be added)

3.7 USB TYPE-C Female Connector 1:
8155 Project Function: NA

3.8 USB TYPE-A Female Connector:
8155 Project Function: NA

3.9 USB TYPE-C female connector 2:
This port is the USB interface for the onboard USB to UART module. If the board has an onboard CH343P module, it can be connected to a computer via a USB TYPE-A to TYPE-C data cable (Android TYPE-C data cable) to use a serial communication host computer to communicate with the MCU/SOC inside the DUT.

3.10 UART Voltage Selection Switch:
Level selection for the DUT's onboard MCU/SOC UART port:
Switch in the upper position -> 3.3V;
Switch in the middle position -> 1.8V;
Switch in the lower position -> 5.0V.

UART level selection reference:
8155 Project:
MCU: 3.3V;
SOC: 1.8V;
S61 FCM Project:
MCU: 3.3V
; SOC: 3.3V.

Note: Please select this switch correctly. Incorrect selection will prevent the PC host computer from communicating normally with the MCU/SOC inside the DUT via UART.

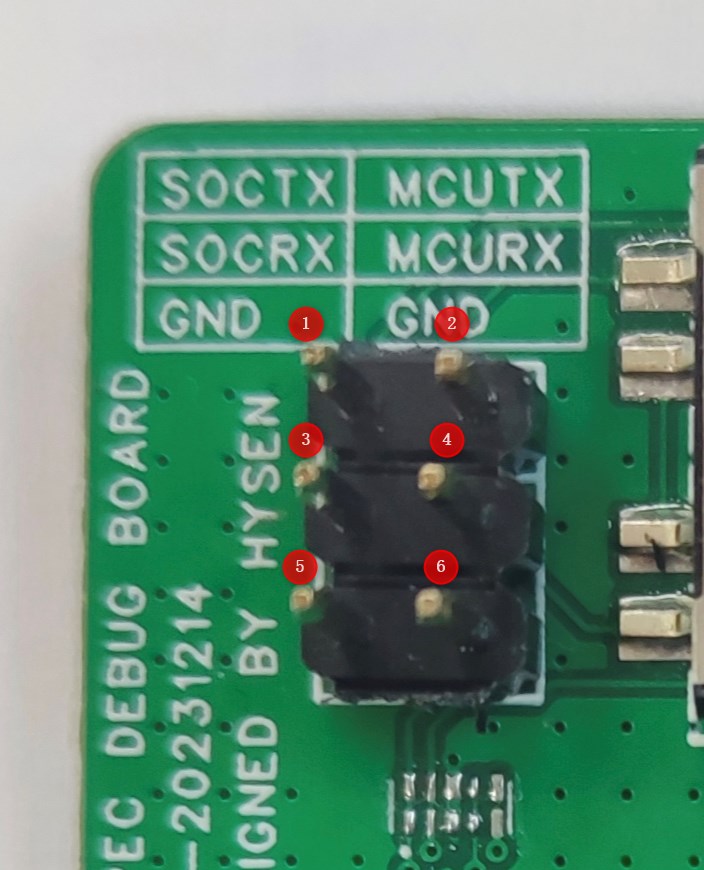

3.11 UART Pin Headers:
Pin 1: DUT SOCTX, needs to be connected to the RX pin of the serial port board . Pin
2: DUT MCUTX, needs to be connected to the RX pin of the serial port board.
Pin 3: DUT... SOCRX, needs to be connected to the TX pin of the serial port board
. Pin 4: DUT MCURX, needs to be connected to the TX pin of the serial
port board. Pin 5: GND, one of pins 5/6 must be connected to the GND of the external USB to UART serial port board; otherwise, the PC host computer cannot communicate normally with the MCU/SOC inside the DUT via UART .
Pin 6: GND, one of pins 5/6 must be connected to the GND of the external USB to UART serial port board; otherwise, the PC host computer cannot communicate normally with the MCU/SOC inside the DUT via UART

. Note: If connecting to the external USB to UART serial port board via UART header pins, the [3.12 UART Channel Selection Switch] must be set to the middle position; otherwise, the PC host computer cannot communicate normally with the MCU/SOC inside the DUT via UART.


3.12 UART Channel Selection Switch:
[3.9 USB...] 【TYPE-C Female Connector 2】When using the onboard CH343P module, this switch is required to select the communication target. With the switch
in the upper position -> SOC, communication with the SOC via the UART interface is selected.
With the switch in the middle position -> OPEN, in the open circuit state, communication with the PC via the external serial port board is achieved through 【3.11 UART header】. With the switch
in the lower position -> MCU, communication with the MCU via the UART interface is selected.

4. Instructions for Use:
4.1 Using this TYPE-C debugging adapter board to program the 8155 MCU
4.1.1 Preparation
①DUT-8155 host
② Host power supply harness
③ Adjustable power supply
④ TYPE-C debug adapter board
⑤ Gray ribbon cable (1.27 to 2.54 20P)
⑥ J-LINK debugger
⑦ J-LINK USB square port harness
⑧ PC
4.1.2 Environment Setup
4.1.3 Programming steps
refer to the corresponding ESW output guide document

(to be updated
) 4.2 Using this TYPE-C debug adapter board to program the 8155 SOC (
to be updated
) 4.3 Using this TYPE-C debug adapter board to program the S61 FCM MCU
(to be updated
) 4.4 Using this TYPE-C debug adapter board to program the S61 FCM SOC
(to be updated
) 4.5 Using this TYPE-C debug adapter board to perform UART communication with the DUT's internal MCU (using the onboard CH343P module - USB to UART) (
to be updated )
4.6 Using this TYPE-C debug adapter board to perform UART communication with the DUT's internal SOC (using the onboard CH343P module - USB to UART)
(to be updated
) 4.7 Use this Type-C debug adapter board to establish UART communication with the DUT's internal MCU (using an external USB to UART serial port board).
(To be updated
4.8) Use this Type-C debug adapter board to establish UART communication with the DUT's internal SOC (using an external USB to UART serial port board).
(To be updated )



PDF_TYPE-C debug adapter board.zip

Altium_TYPE-C debug adapter board.zip

PADS_TYPE-C debug adapter board.zip

BOM_TYPE-C debug adapter board.xlsx

96646

Ordinary electronic keyboard

This electronic keyboard, based on the 51 microcontroller, is simple, practical, and highly entertaining. It is recommended for piano enthusiasts to make one.

I. Research Background
Pianos are increasingly becoming a part of our daily lives, serving as a form of entertainment. However, pianos are relatively expensive, leading to a growing demand for convenient, real-time, and low-cost alternatives. We considered how to manufacture pianos in a more convenient and cost-effective way, and embedded systems, due to their miniaturization, high performance, and low power consumption, became our first choice.
II. Product Introduction
An electronic keyboard is an electronic keyboard instrument, belonging to the category of electronic music synthesizers.
The electronic keyboard was invented to mimic the sound and function of a piano using electronic components. It typically consists of a keyboard, sound generator, amplifier, and controller. An electronic keyboard can produce various sounds, such as piano, guitar, violin, and drums, through a built-in sound library or external sound sources. It can also create different musical effects by adjusting parameters such as timbre, volume, and rhythm.
Electronic keyboards are generally lighter and more portable than traditional pianos and can be powered by batteries or a power adapter. They can also be connected to other electronic instruments or computers to expand their functionality and creative potential.
Electronic keyboards have wide applications in music education, home entertainment, and popular music production. For beginners, the electronic keyboard is a relatively affordable and easy-to-learn instrument choice. For professional musicians, the electronic keyboard can also be used as a tool for creation and performance.
III. Needs Analysis
1. Functional Requirements
① Uses the 51 microcontroller core with an internal real-time operating system.
② Sound amplification: Uses transistors for amplification circuit.
③ Key detection: Uses keys and provides feedback to the user through lights.
④ Sound playback: Uses a buzzer to play sound.
2. Quantitative Technical Indicators
The initial work was mainly to verify the feasibility of the scheme, with low requirements for the algorithm target, only to achieve the function.
① The key will not fail to execute when pressed.
② The diode will not fail to light up when the key is pressed.
③ The buzzer sound is stable.
3. Design Constraints (Hardware, Software, Time Cost, Economic Cost, etc.)
(1) Hardware and software design constraints
(2) The buzzer sound is somewhat different from the real piano tone.
IV. Application Scope
As an electronic keyboard instrument, the electronic keyboard has a variety of functions and features, suitable for the needs of different groups of people. The following are some common electronic keyboard needs analysis:
1. Home entertainment: The electronic keyboard can be used as a way of home entertainment, allowing family members to enjoy the fun of music together. The electronic keyboard's lightweight and portable nature makes it suitable for outdoor or travel use.
2. Composition and Performance: For professional musicians, the electronic keyboard can serve as a tool for composition and performance. By adjusting parameters such as timbre, volume, and rhythm, different musical effects can be created to meet diverse musical composition needs.
3. Children's Toy: For children, the electronic keyboard can be a fun toy that helps develop their musical interests and talents. Electronic keyboards typically offer a rich selection of timbres and rhythms, stimulating children's creativity and imagination.
4. Amateur Music Enthusiasts: For music lovers, the electronic keyboard is a convenient instrument choice, allowing them to practice and play their favorite music at home. Its relatively affordable price also makes music accessible to more people.
In short, the electronic keyboard has multiple functions and features, meeting the needs of different groups. Whether for music education, family entertainment, composition and performance, or as a children's toy or an instrument for amateur music enthusiasts, the electronic keyboard has broad application prospects.
V. Hardware Design
The hardware design
uses a USB Type-C port to connect to the power supply, transistors for amplification circuits, buttons for control, diodes for feedback, and pin headers for programming.

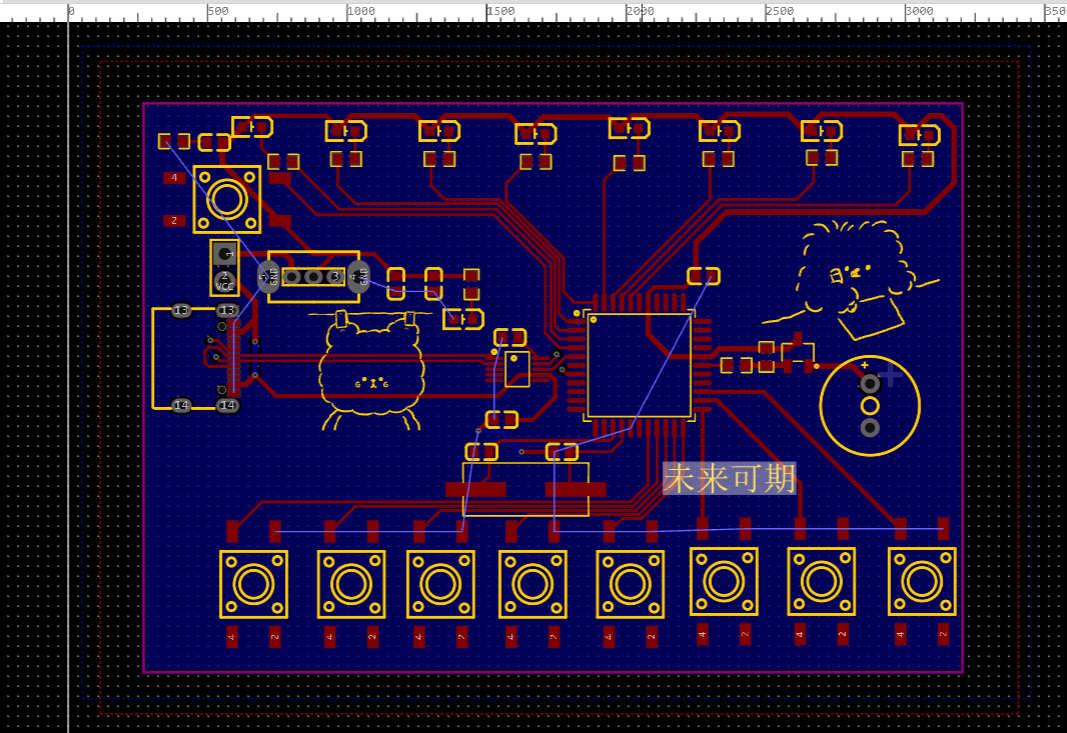

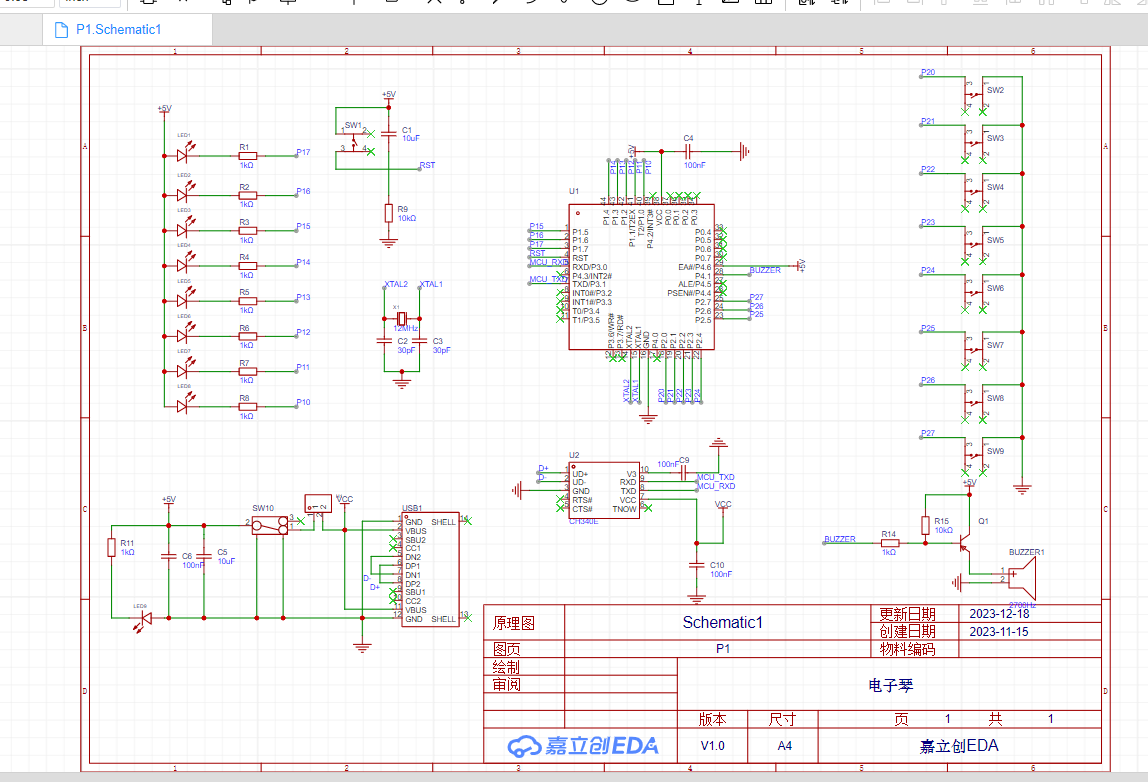

Schematic PCB

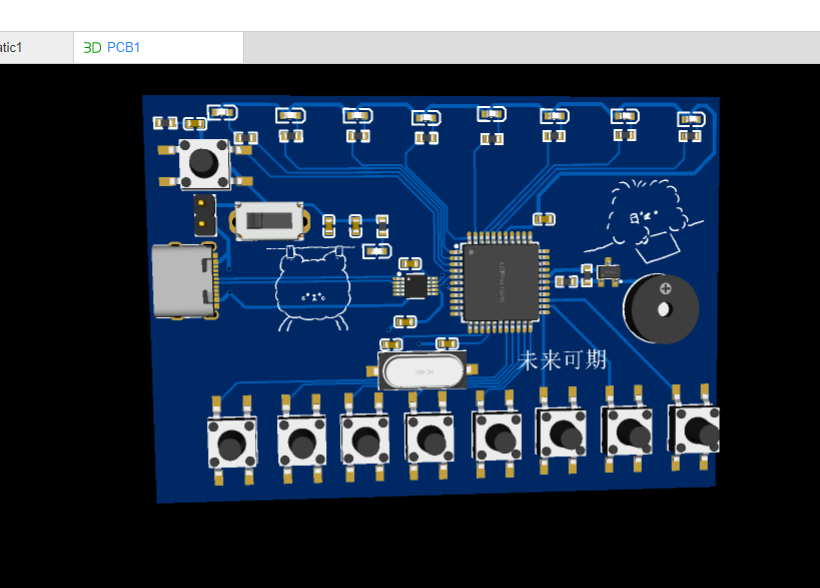

3D View

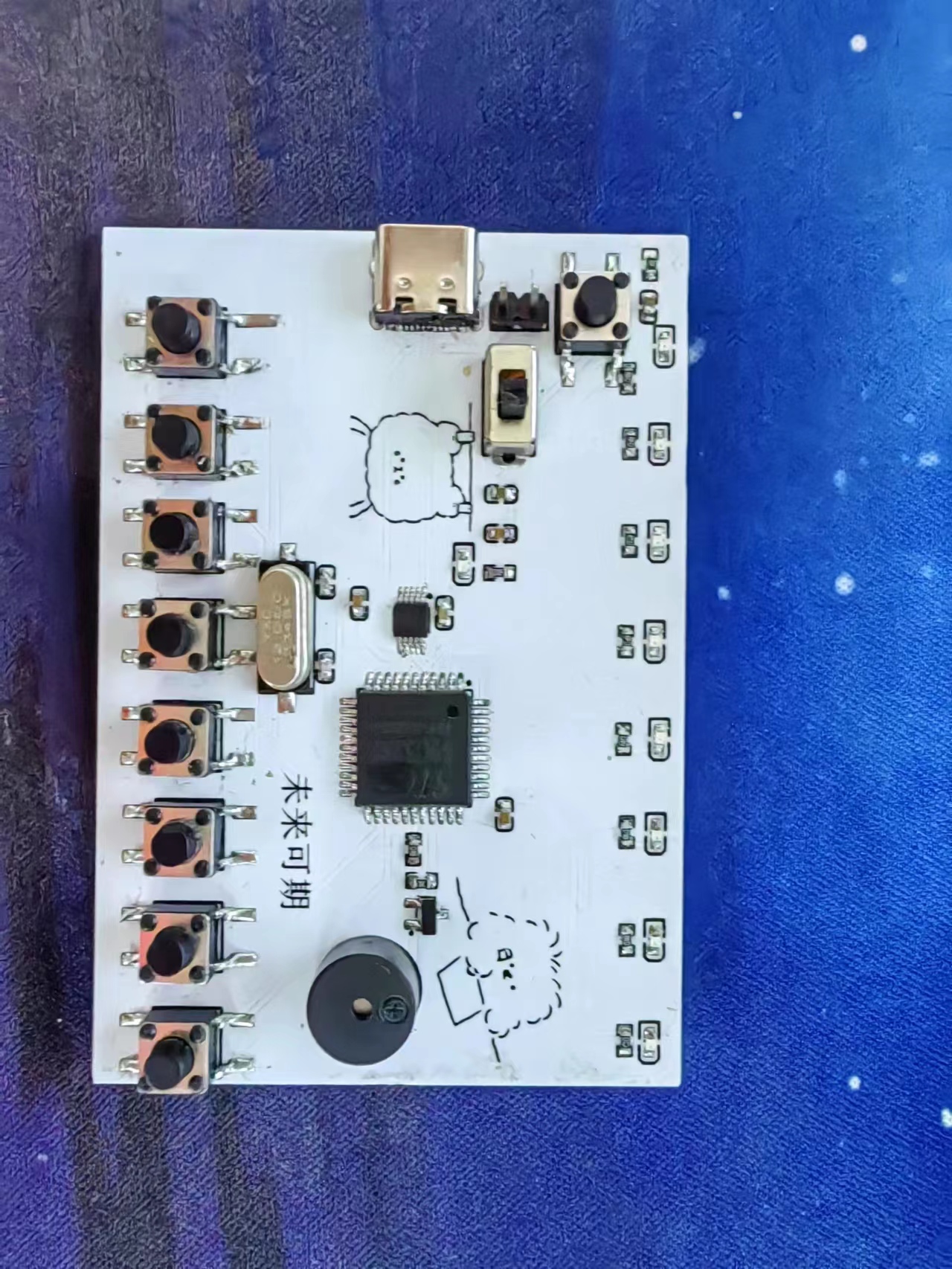

Physical Demonstration
