ELRS - 2.4G

Overview

The design
is based on the receiver designed by Avanx, with some improvements, including an improved WiFi antenna design
and optimized via layout. Due to a lack of professional testing equipment,

signal strength
can only be compared with existing receivers.
In actual testing under the same conditions, the signal strength was no different from the finished receiver.
However, it is hoped that someone with the capability can test the actual signal strength.

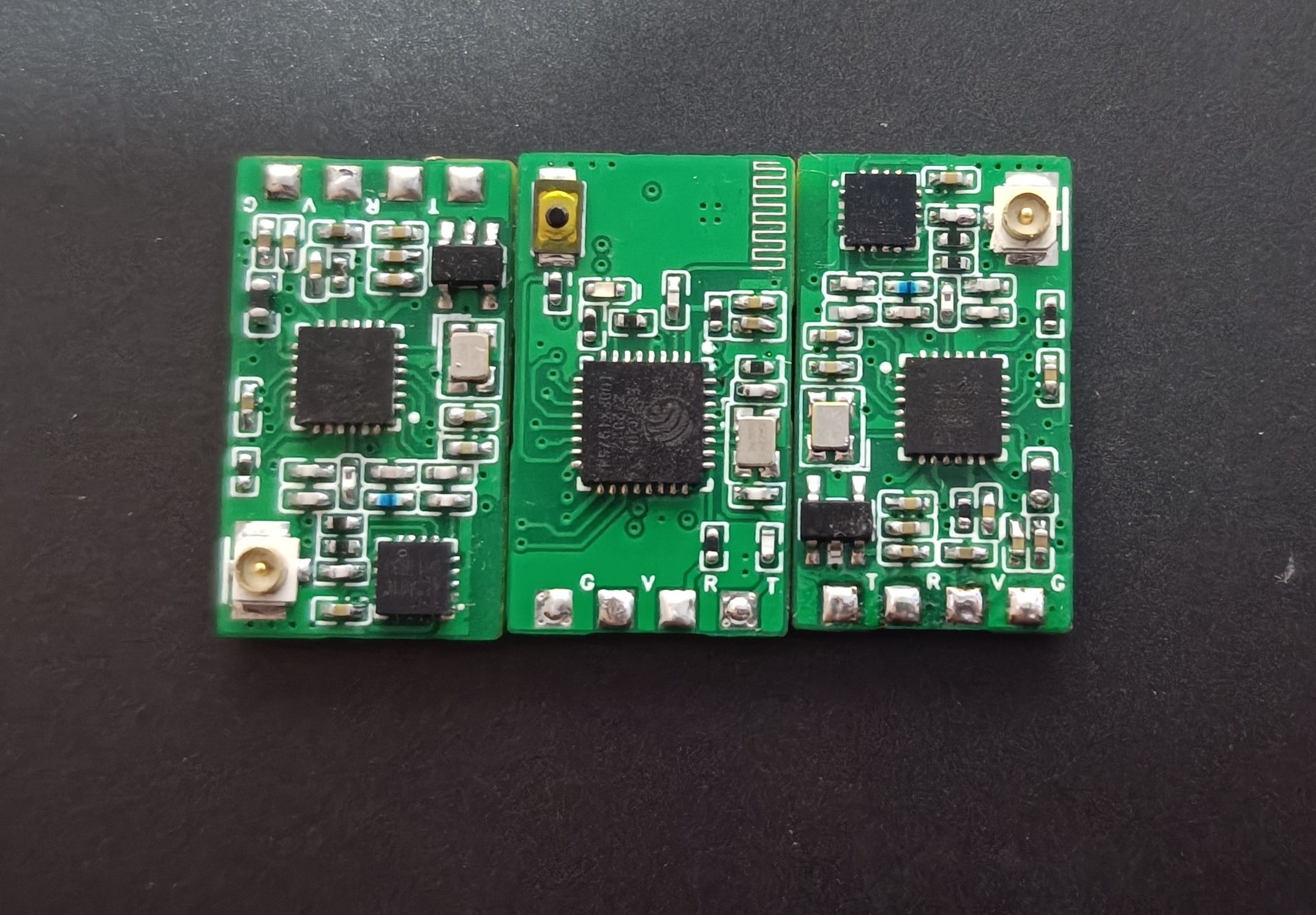

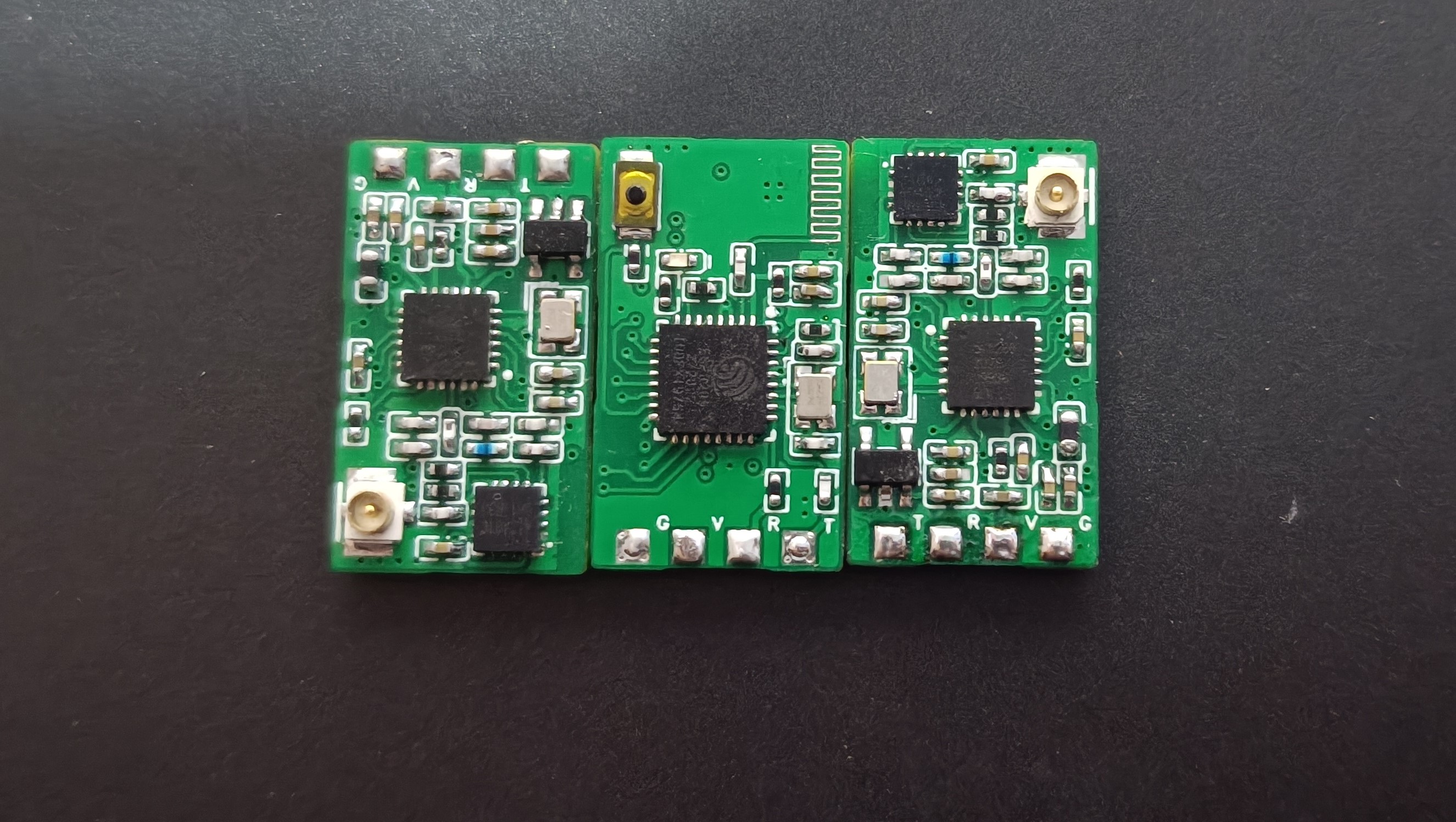

(Receiver image,

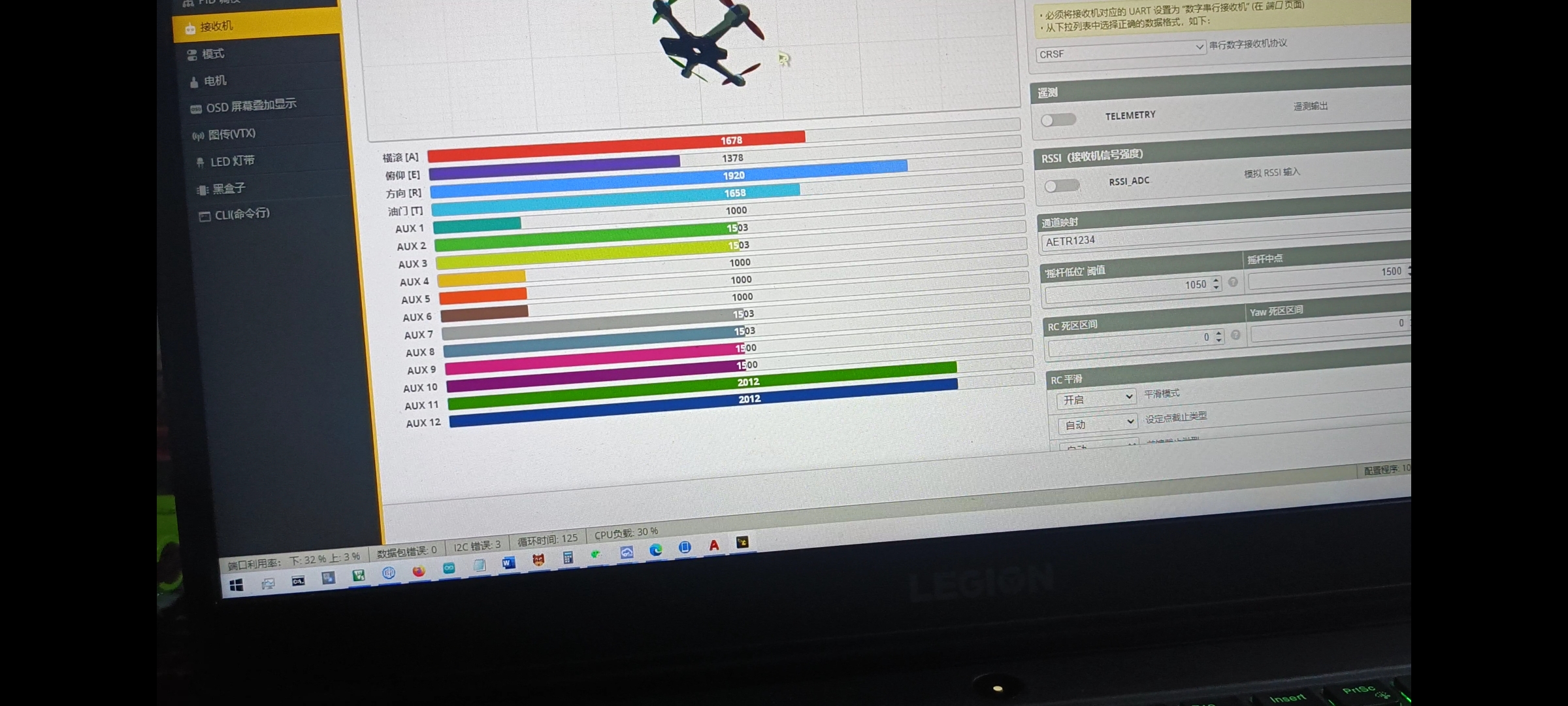

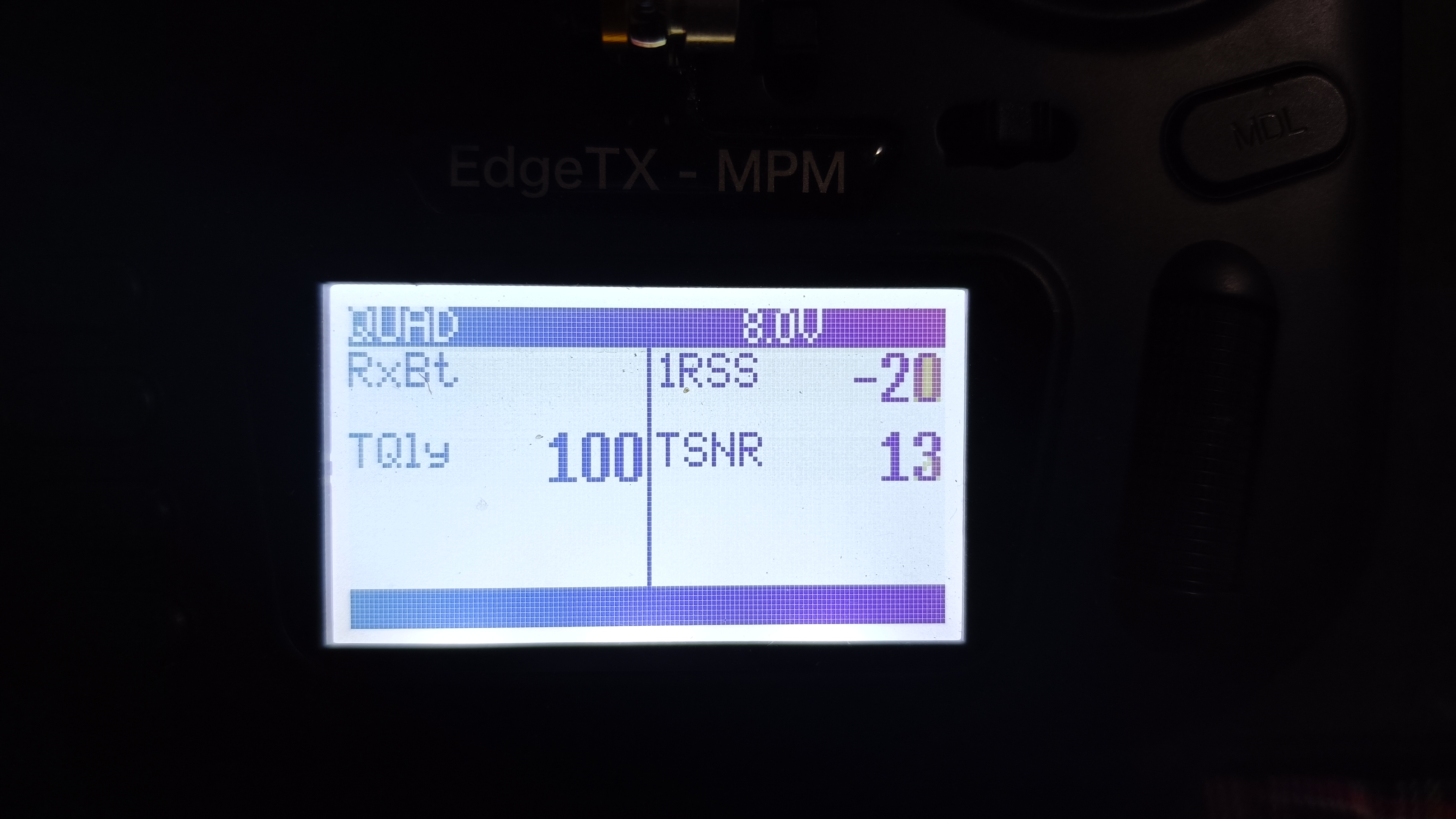

remote control signal strength,

tested and working;

detailed construction process can be found in Avanx's ELRS 2.4G receiver

test video.)
