LED lights

Overview

Version Description
Version Name: LED Module V1.0
Release Date: 2023/11/15
I. Function Introduction
Project Introduction Video

This LED module lights up at high level and
comes with a matching 3D shell file

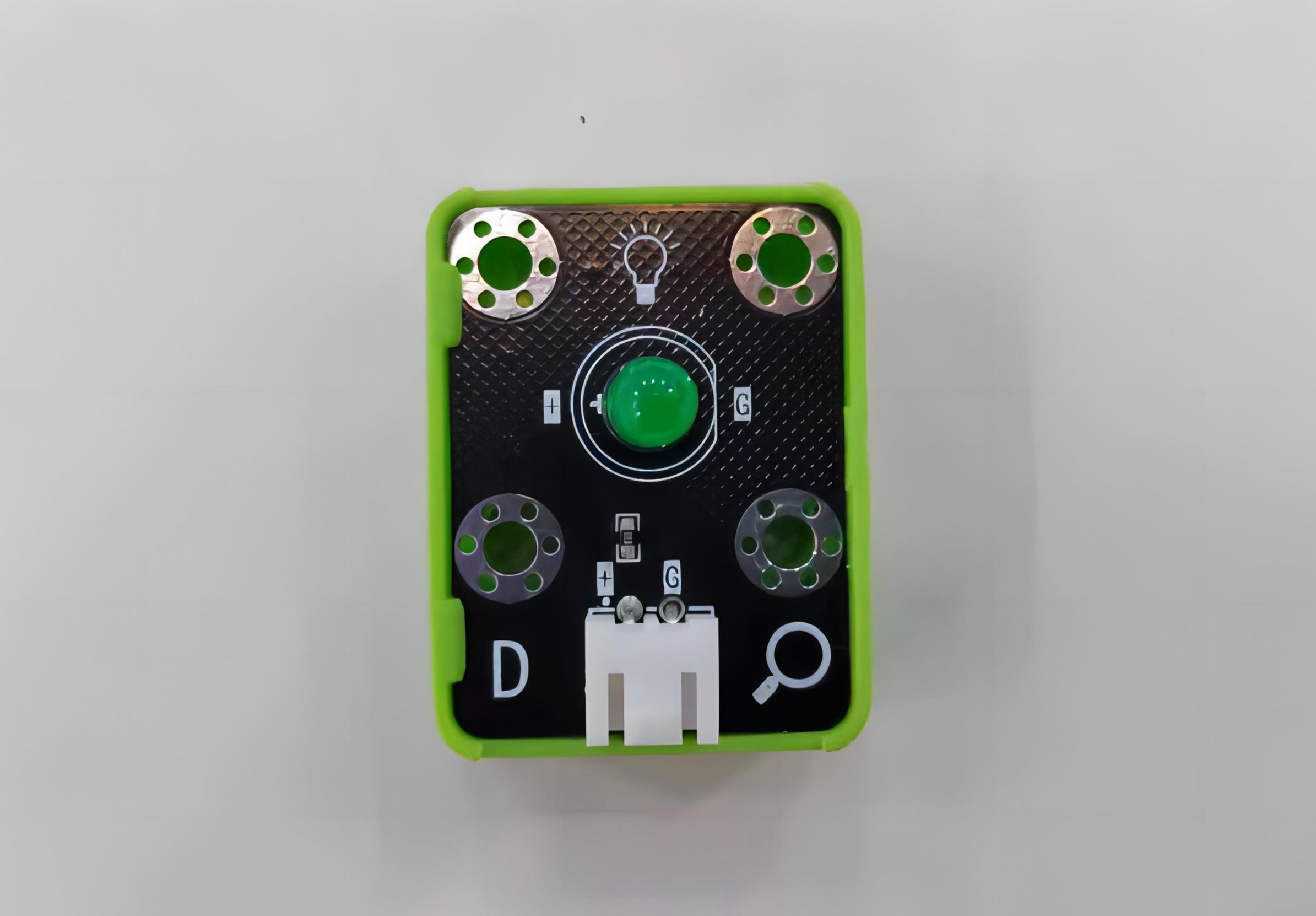

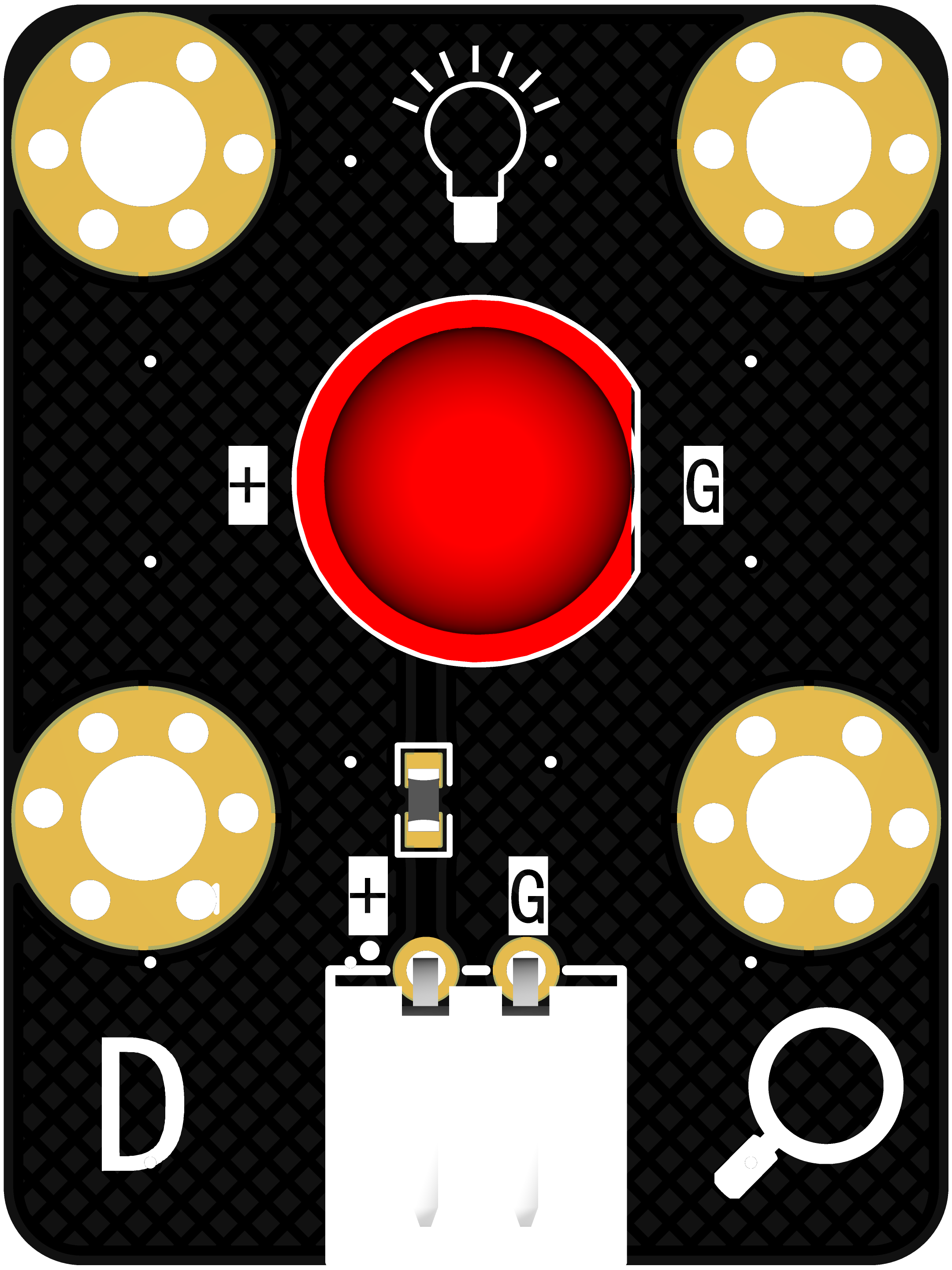

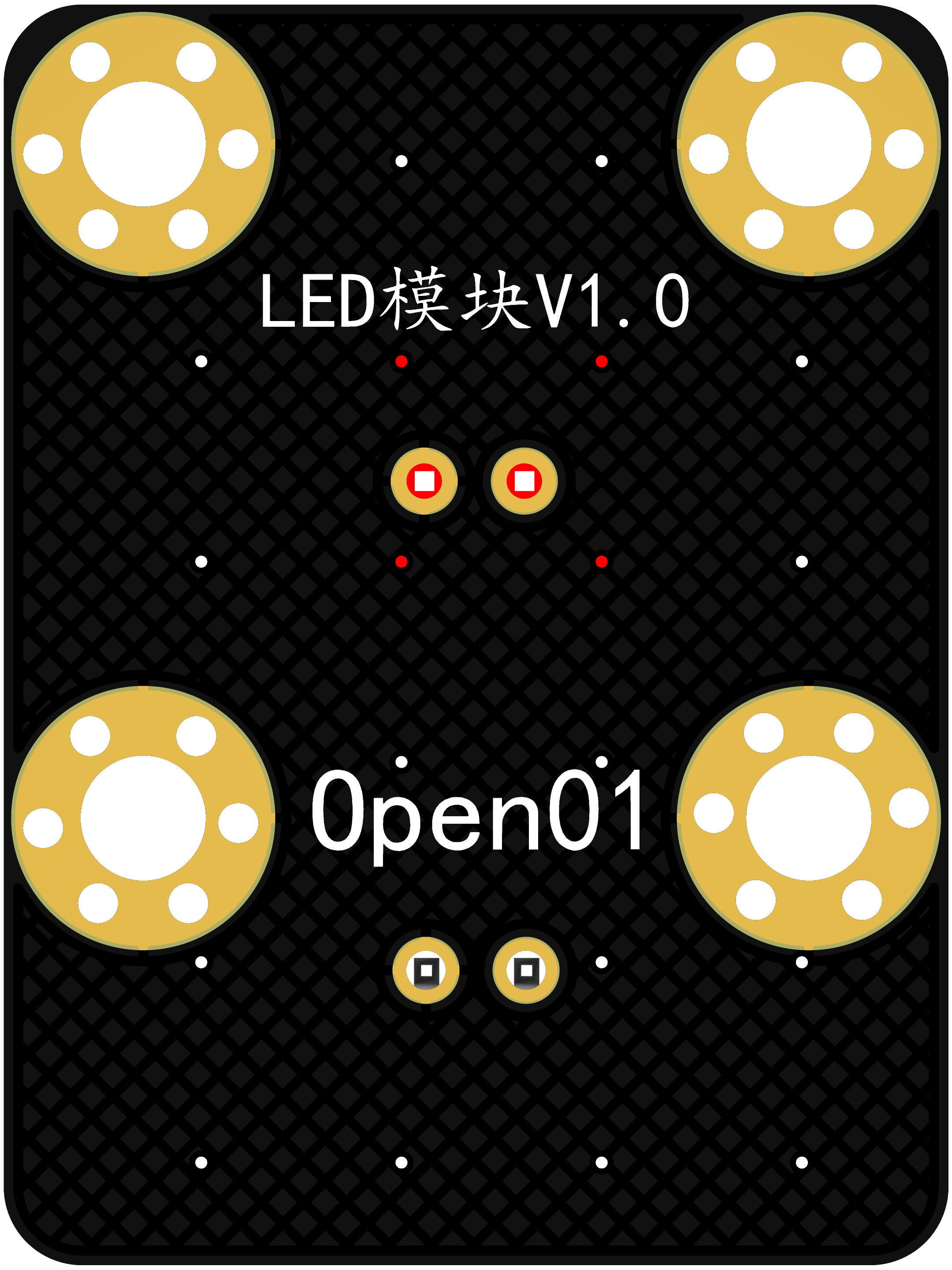

. The design is elegant and references the excellent design styles of several online products. II. Renderings

III. Functional Modules
1. LED Light

This LED module lights up at high level, a standard design, no further explanation needed.
2. Screw Holes

Four screw holes are provided for easy installation.
IV. Remarks

This project will be continuously improved and updated.
Update Time: 15th or the last day of each month.
How to Obtain Materials:
UP: open01_T_Jupiter; duduvue;
QQ: 826793815

Subsequent open source projects and updates will be released on Bilibili, LCSC Open Source Platform, Github, and Gitee. Please follow for real-time updates!
