SUN-ZGB-JN516X-CON

I. Product Introduction
This is a development board based on the JN5169 Zigbee SOC module adapter. It provides standard firmware for various IoT applications (such as Zigbee gateways, door locks, voice assistants, 86 switches, RGB light strips, universal infrared remote controls) (contact me to obtain). The official website provides abundant source code examples (downloadable from the official website or obtainable by contacting us).

II. Application Scenarios
⚫ Smart home and industrial sensors;
⚫ Security systems, positioning systems; ⚫
Wireless remote controls, drones;
⚫ Wireless game controllers;
⚫ Healthcare products;
⚫ Wireless voice, wireless headsets;
⚫ Automotive industry applications.
III. Product Overview
Introduction to Zigbee Device Types

There are three logical device types in a ZigBee network: Coordinator, Router, and End-Device.
A ZigBee network consists of one Coordinator, multiple Routers, and multiple End-Devices.

The coordinator

is responsible for establishing and managing the network, controlling whether other nodes are allowed to join, and possesses all the functions of a routing device. Its main tasks are network management, uploading child node information to the host computer, forwarding packets, and authenticating the permissions of terminals requesting network access. The network will not crash when the coordinator is powered off; routers and dormant terminals will continue to operate normally within the network.

The router

allows other nodes to connect to the routing device to extend network coverage. Its main task is to forward packets, acting as a relay router, and it possesses all the functions of a terminal device. If multiple paths exist between two nodes, and one path fails, the network will automatically adjust to the other optimal path to ensure data delivery. Routers can create their own networks or join other networks. Routers are always active and therefore must be powered by the mains power supply.

End-Device

: When there is no data transmission or reception, the End-Device enters a sleep state (it can receive data). The sleep current is as low as about 0.2uA.
This module can be programmed to function as a Coordinator, Router, or End-Device, or any other device type.

IV. Product Parameters

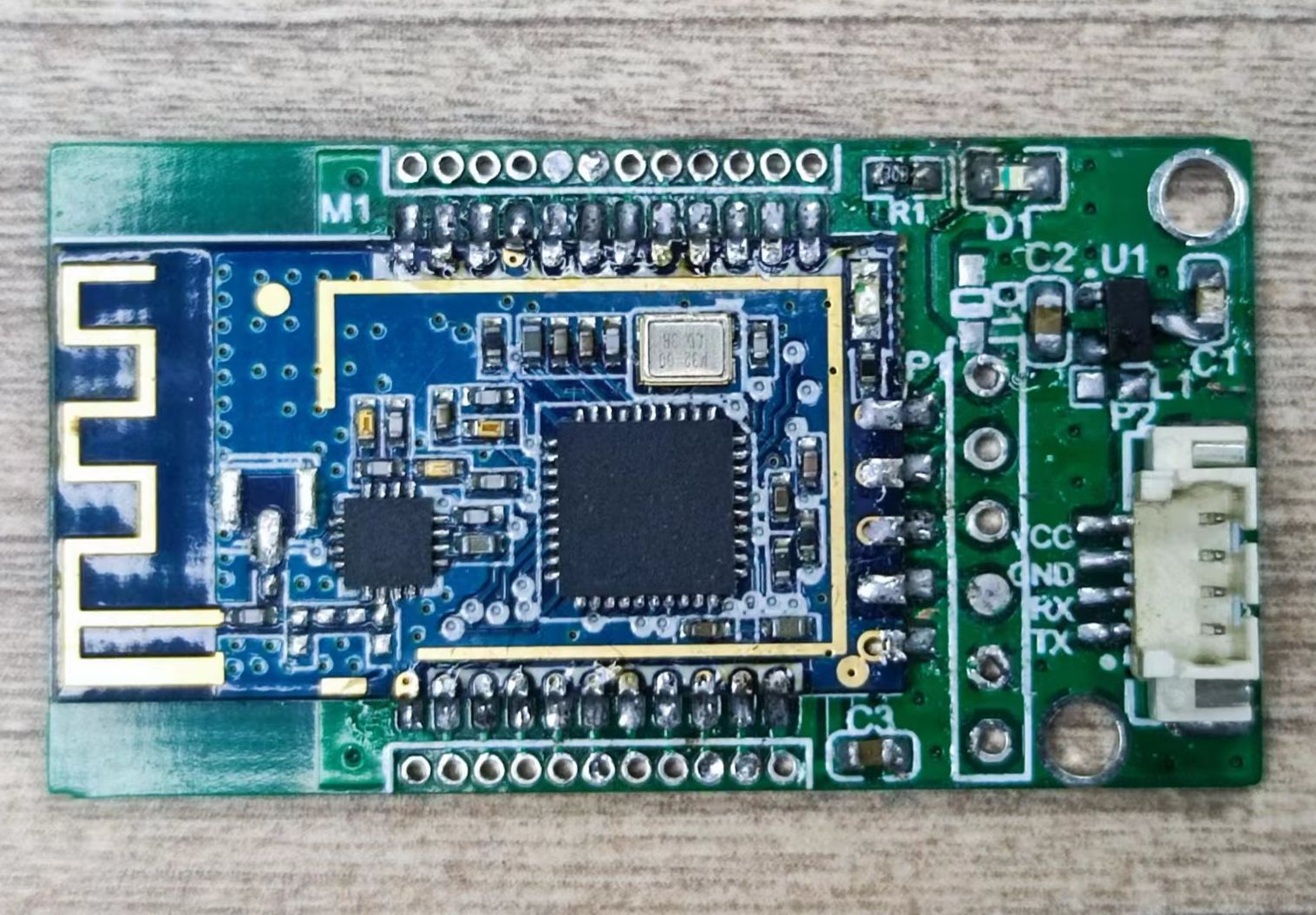

PCB Size: 42mm*28mm
PCB Layers: 4 layers for core module, 2 layers for adapter board
Operating Frequency Band: 2405~2480MHz
Maximum Transmit Power: 10dBm (without PA), 20dB (with PA)
Maximum Outdoor Unobstructed Communication Distance: 200m
Maximum Outdoor Unobstructed Networking Distance: 100m
Receiver Sensitivity: -97dBm
Operating Temperature: -40℃ ～ +125℃
Power Supply Voltage: +2.0V ～ +3.6V (Recommended value +3.3/V)
Standby Current:
10mA (without sleep)
Deep Sleep Current: 0.12μA
Operating Current: 35mA (TX),
25mA (RX)
Protocol: ZigBee HA/ZigBee Light Link/Zigbee 3.0
SUN-JN5169-PA Zigbee Module Specification Sheet:
https://docs.qq.com/doc/p/549b2e7b95ad5a964574e8e2946f8669aa783a8f
V. Instructions for Use
1. Connect the USB to serial port. Use the pull-down switch on DO1 to program the signal; otherwise, use the pull-up switch or leave it empty for normal operation.
2. Wait for power-on startup (approximately 1 second).
3. It can be used normally.
4. For development instructions, please refer to:
NXP Zigbee JN516X JN517x JN518X Development and Compilation with VS Code Studio Environment;
Introduction to NXP ZigBee JN516x Hardware Reference Design
[ZigBee Series]; NXP JN516x Low-Power Sleep and Wake-up Process
[ZigBee Series] | NXP-JN5169 ZigBee 3.0 Development Environment Setup and Compilation.
For more development instructions, please see the collection:
zigbee - Collection
Six. Test Video:
A Speech Misidentification Project Using This Module
https://www.bilibili.com/video/BV1jv4y1M7s1/?spm_id_from=333.999.0.0&vd_source=d126cc29f53992bfabbf878e3b116139

Introduction to the Zigbee Gateway (Coordinator) project:
https://www.bilibili.com/video/BV13V4y1y7gD/?spm_id_from=333.788.recommend_more_video.0&vd_source=d126cc29f53992bfabbf878e3b116139

For more projects, please contact us.

VII. Standard Firmware

Our standard firmware product solutions have been shipped for many years, with stable quality and performance.



Serial
Number Firmware Code
Product Function


1
LZ-V2-D-WindowCovering_BY-JN5169
Venetian Blinds


2
LZ-V2-D-WindowCovering_Persent-JN5169
Percentage Curtains


3
LZ-V3-D-WiressRepeater-JN5169
Wireless Signal Repeater


4
LZ-V4-A-Coordinator-JN5169
Gateway (Coordinator)


5
LZ-V4-D-IR-Convert-JN5169
Universal Infrared Remote Control (Infrared Converter)


6
LZ-V4-D-K1-Switch-JN5169
Firmware for a single-way switch (


7
LZ-V4-D-K2-Switch-JN5169), a dual-way switch ( 8 LZ-V4-D-K3-Switch-JN5169), a triple-way switch ( 9 LZ-V4-D-K4-Switch-JN5169) , and a quad-way switch (total number of products) is too numerous to upload individually. If you cannot find the product you need, please contact us. If the firmware product is not available, you can contact us for custom development.
