Logic level test pen

Overview

When debugging the serial port, a multimeter simply couldn't detect voltage changes of more than a few bytes, so a level tester was made.

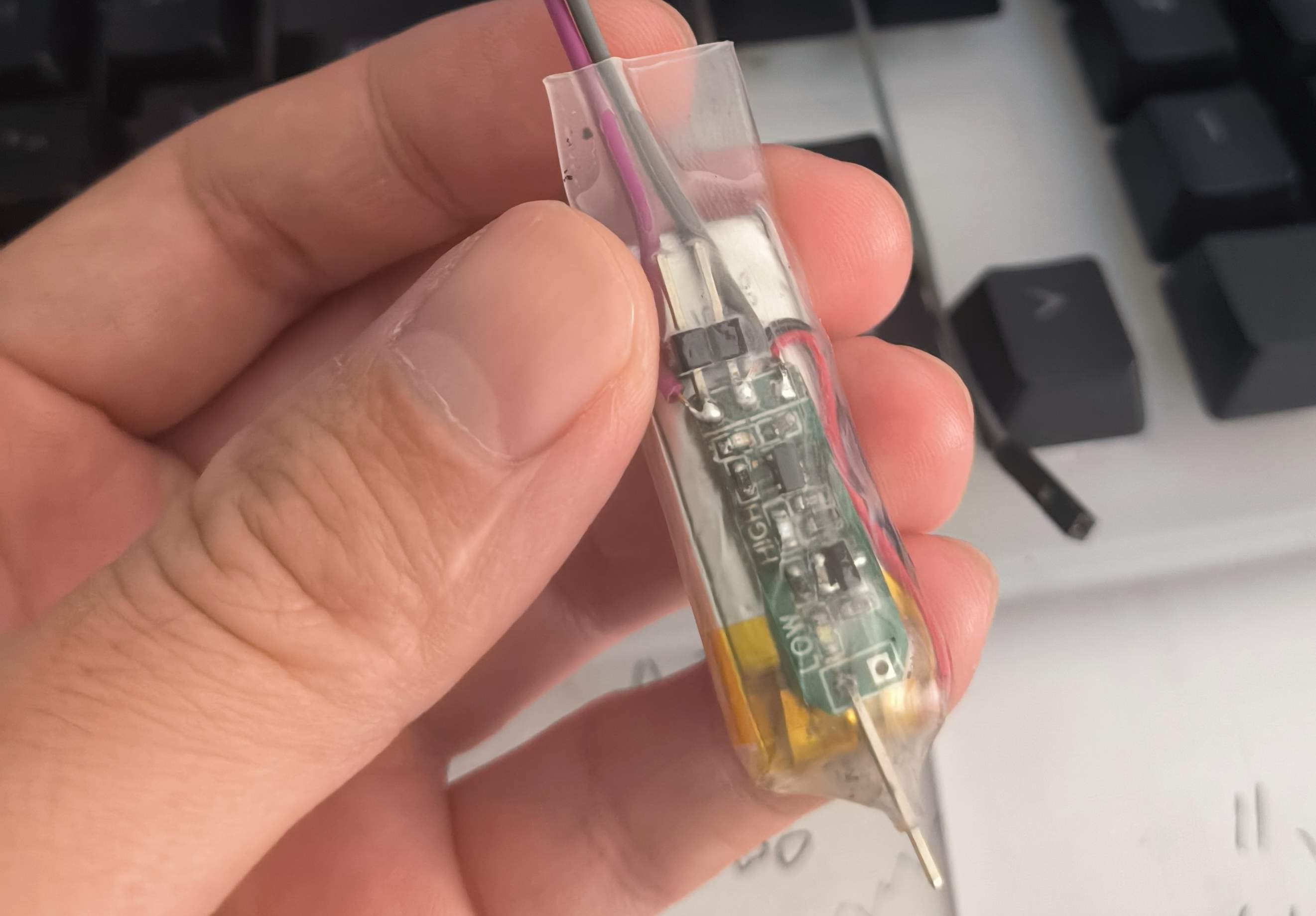

This solves the problem of multimeters not easily measuring high and low levels, providing a visual display of these levels. The image below is of the older version; the newer version hasn't been prototyped yet.

Advantages of this solution:
1. No switch required, ready to use.
2. Simple circuit, suitable for DIY .
3. Convenient charging; simply plug it into the USB port of the charger (USB charging added in version 1.1).

Measures high and

low levels.

Design Files

BOM_Logic Level Tester.xlsx
