LM386 0.325 Watt Audio Amplifier

LM386 0.325 Watt Audio Amplifier

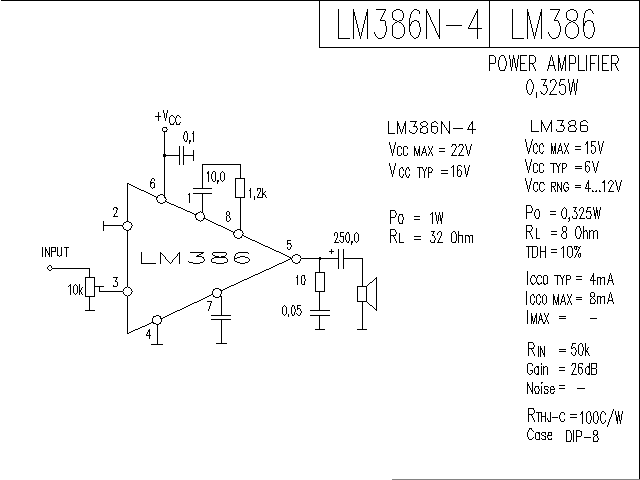

The LM386 is a power amplifier designed for low-voltage consumer applications. The internal gain is set to 20 to keep the number of external components small, but adding an external resistor and capacitor between pins 1 and 8 can increase the gain to any value between 20 and 200.

The input is ground-referenced, while the output is automatically biased to half the supply voltage. With a quiescent power consumption of only 24 milliwatts when operating from a 6-volt supply, the LM386 is well-suited for battery power.

characteristic

• Battery powered

• Minimal external components

• Wide power supply voltage range: 4V–12V or 5V–18V

• Low quiescent current consumption: 4mA

• Voltage gain from 20 to 200

• Ground reference input

• Self-centering output static voltage

• Low distortion: 0.2% (AV = 20, VS = 6V, RL = 8W, PO = 125mW, f = 1kHz)

• Available in an 8-pin MSOP package
