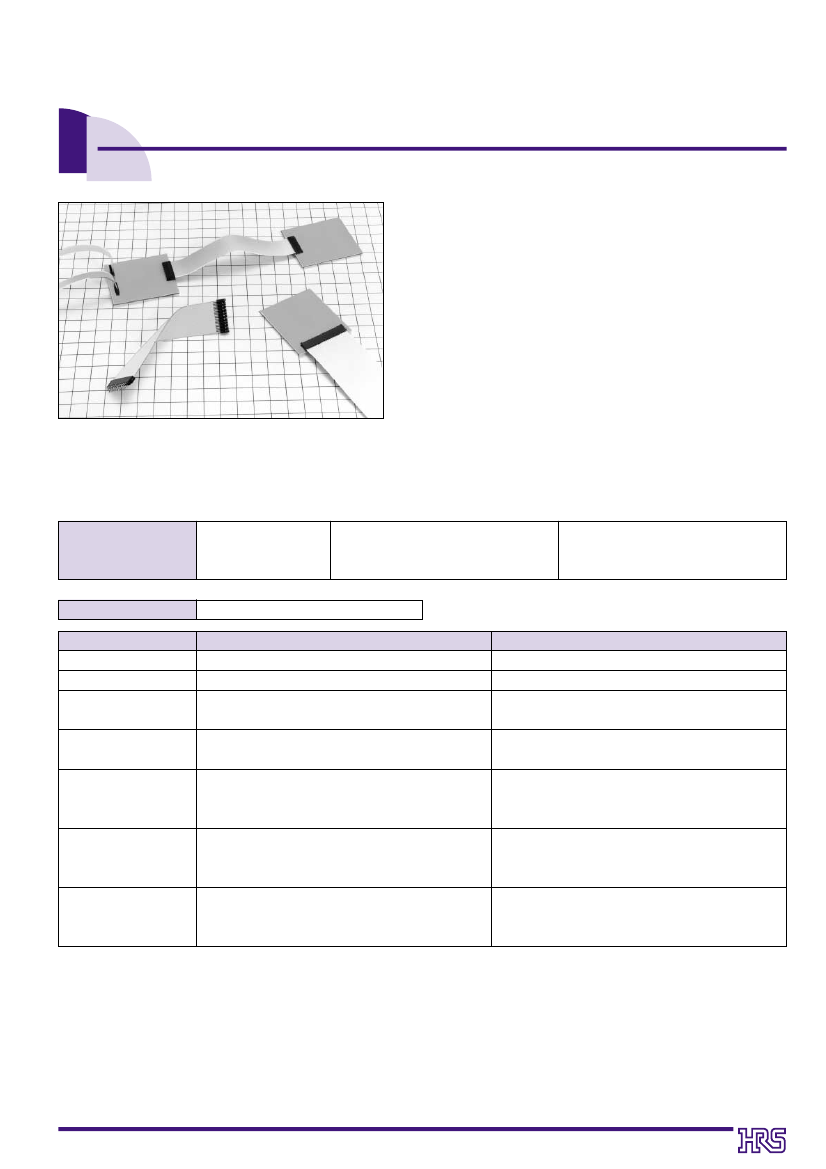

1mm Pitch FPC/FFC Connector
FH 21 Series
sFeatures
1. LIF (Low Insertion Force) Mechanism
LIF mechanism secures mounting serviceability.
2. Kink Mechanism
DIP post is treated with kinks, and prevent connector
floating in the soldering process.
3. Contact Structure on Both Sides
The contact structure on both sides does restrict
directionality of FPC and FFC conductors.
sApplications
HDD, facsimiles, printers, and crystal liquie modules, etc.
sProduct
Specifications
Rated Current: 0.5A
Rating
Operating Temperature Range:
-30 ~
+70ç
(Note 1)
Storage Temperature Range: -10
~
+50ç
(Note 2)
(Not dewed)
Applicable FPC
Item
1. Insulation Resistance
2. Withstand voltage
3. Contact Resistance
4.
Mechanical
Operation
500Mø
min.
Neither short nor breakdown should occur
40mø
*FPC
conductor resistance included
Contact resistance: 40mø max.
No part should be damaged, cracked, or loosened
Electrical discontinuity, 1µS max.
5.
Vibration
Contact resistance: 40mø
No part should be damaged, cracked, or loosened
Electrical discontinuity, 1µS max.
6.
Shock
Contact resistance: 40mø max.
No part should be damaged, cracked, or loosened
7.
Moisture Resistance
7.
in Steady State
Note 1.
Note 2.
Note 2.
Note 3.
Contact resistance: 40mø max.
Insulation resistance: 50Mø max.
Acceleration: 490m/s, duration: 11ms, sine half-wave
in 3 directions for 3 cycles, respectively
Exposed to temperature 60ç and humidity 90~95%
Frequency 10~55Hz and single amplitude 0.75mm in
3 directions for 2 hours, respectively.
t=0.3±0.05 Solder plating
Specification
Measured at 100V DC
150V AC for 1 minute
Measured at 100mA
10 cycles
Condition
(Not dewed)
Rated Voltage: 50V AC Operating Humidity Range: Relative humidity 90% max. Storage Humidity Range: Relative Humidity: 90% max.
for 96 hours
No part should be damaged, cracked, or loosened
Temperature rise included when energized
This storage indicates a long-term storage state for the unused product before the board mounted.
The operating temperature and humidity ranges are applied to the non-energized state after the connector has been
installed in the board.
The above standards represent this series. The individual formal agreement should be based on the "Specification".
D15
sMaterial
Part
Insulator
Contact
Material
PBT
Phosphor bronze
Finish
Black
Solder plating
Remarks
UL94V-0
---------------
sOrdering
Information
Please determine the specific product. If needed, please select and order the product from the product No. as listed in this
catalog on page D17 and D18.
FH 21 - 10 S - 1 DS
q
w
e
r
t
y
q
Series Name
w
Series No.
: FH
: 21
18, 20, 22, 24, 25, 28, 30
r
Contact Alignment: Single
t
Contacts Pitch: 0.3mm
y

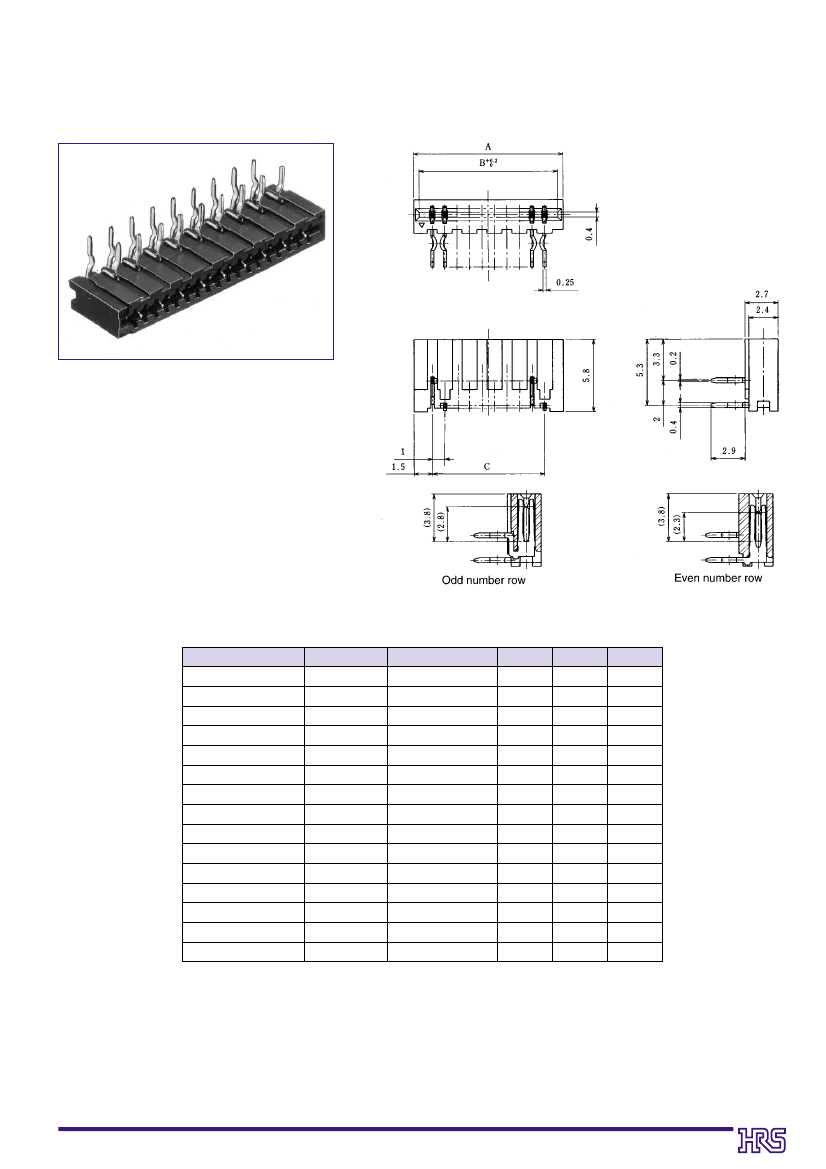

Contact Type: DS : Right angle type

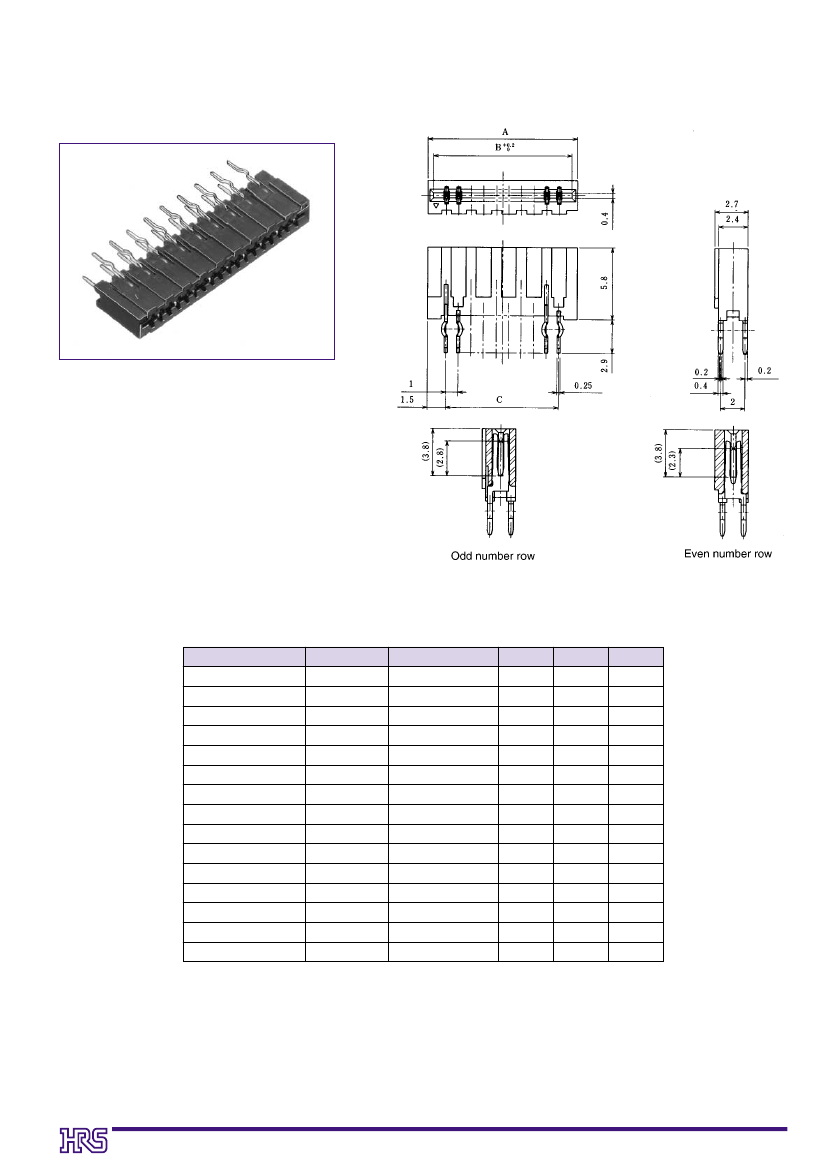

DSA : Straight type
e
Number of Contacts: 5, 6, 8, 10, 12, 14, 15, 16,
BFPC•FFC

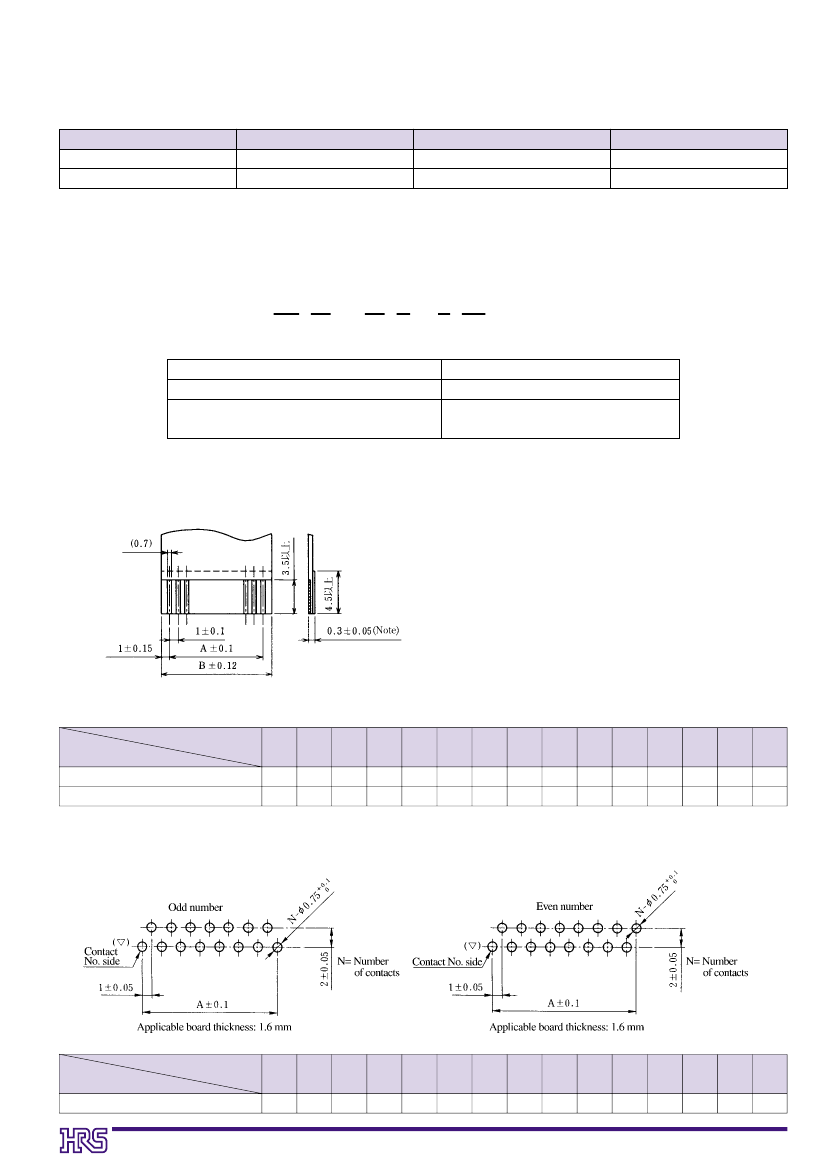

Dimensions
Note: In case of FPC, specify 0.25, excluding adhesive agent
included in FFC.
Unit: mm
Number of Contacts
Size
A
B
5
4.0
6.0
6
5.0
7.0
8
7.0
9.0
10
9.0
11.0
12
11.0
13.0
14
13.0
15.0
15
14.0
16.0
16
15.0
17.0
18
17.0
19.0
20
19.0
21.0
22
21.0
23.0
24
23.0
25.0
26
25.0
27.0
28
27.0
29.0
30
29.0
31.0
BPCB
Footprints
Unit: mm
Number of Contacts
Size
A
5
4.0
6
5.0
8
7.0
10
9.0
12
11.0
14
13.0
15
14.0
16
15.0
18
17.0
20
19.0
22
21.0
24
23.0
26
25.0
28
27.0
30
29.0
D16
Talking
