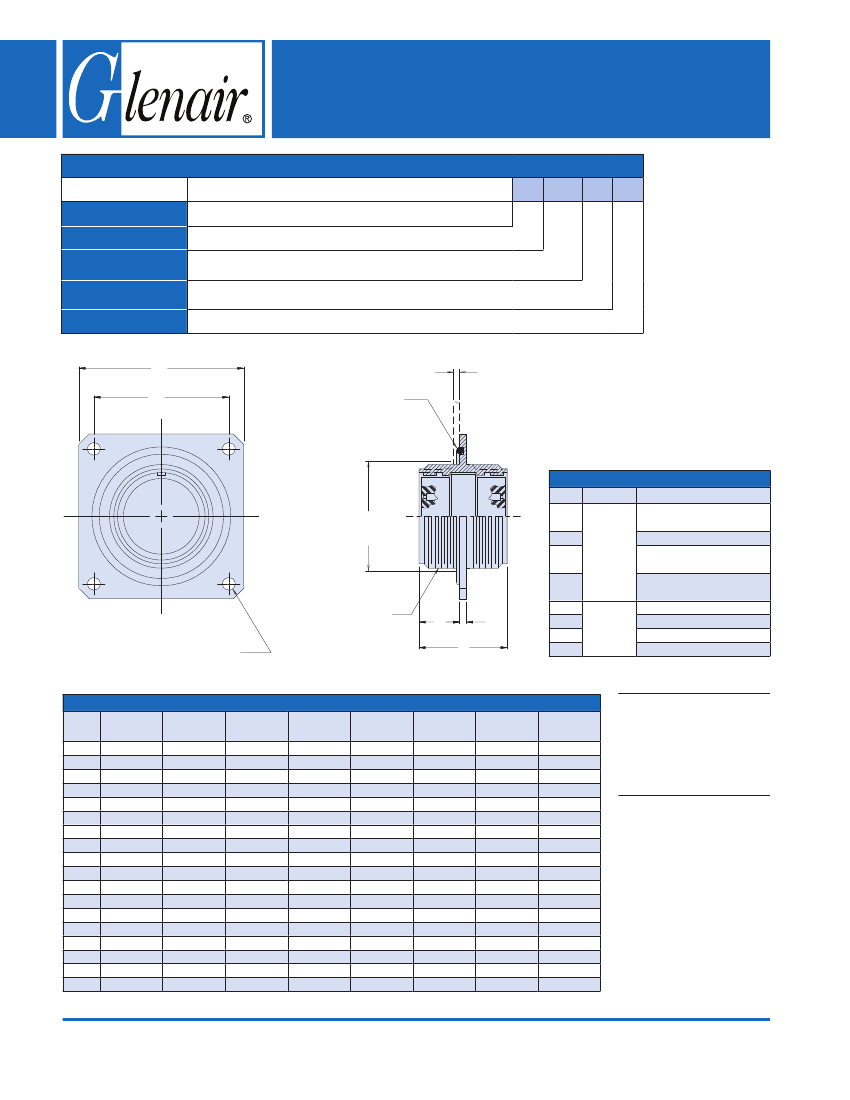

947-041
Bulkhead Feed-Thru, Panel Mount
MIL-DTL-5015 Type
How To Order 947-041
Sample Part Number
Series / Basic Part No.
Finish
Shell Size - Insert
Arrangement*
Contact Style
Alternate Polarization
947-041
MIL-DTL-5015 type bulkhead feed-thru, panel mount
See Table II
Per Table I and MIL-C-5015
P
= Pins
S
= Sockets
PS
= Pin on panel side / socket opposite
SP
= Socket on panel side / pin opposite
W, X, Y, Z
(omit for normal). Insert rotates in relation to master key
M
18-11
P
X
MIL-DTL-5015
E
SQ
F
SQ
PANEL SIDE
G DIA
4 PLACES
1/8 MAX PANEL
THICKNESS
O-RING
Sym
B
M
N
NF
H
RECOMMEDED
MTG HOLE DIA
D THREAD
CLASS 2A
TYP
J
B
K
ZU
ZW
Z1
ZL
Table II - Material / Finish
Material
Finish
Cadmium Plate / Olive
Drab
Electroless Nickel
Al Alloy Cad Plate / Olive Drab over
Nickel Plate
Cad / O.D. over Electroless
Nickel (500 hr. Salt Spray)
Black Cad / Nickel Strike
Olive Drab Cad / Nickel
SST
Passivated
Electrodeposited Nickel
Table I
Shell
Size
8S
10SL
12S
12
14S
14
16S
16
18
20
22
24
28
32
36
40
44
48
B Max
1.750 (44.5)
1.750 (44.5)
1.750 (44.5)
2.125 (54.0)
1.750 (44.5)
2.125 (54.0)
1.750 (44.5)
2.125 (54.0)
2.125 (54.0)
2.125 (54.0)
2.125 (54.0)
2.125 (54.0)
2.125 (54.0)
2.125 (54.0)
2.125 (54.0)
2.125 (54.0)
2.125 (54.0)
2.125 (54.0)
D Thread
Class 2A
1/2-28 UNEF
5/8-24 UNEF
3/4-20 UNEF
3/4-20 UNEF
7/8-20 UNEF
7/8-20 UNEF
1-20 UNEF
1-20 UNEF
11/8-18 UNEF
11/4-18 UNEF
13/8-18 UNEF
11/2-18 UNEF
13/4-18 UNS
2-18 UNS
21/4-16 UNS
21/2-16 UN
23/4-16 UN
3-16 UN
E Dim
± .031
0.875 (22.2)
1.000 (25.4)
1.094 (27.8)
1.094 (27.8)
1.188 (30.2)
1.188 (30.2)
1.281 (32.5)
1.281 (32.5)
1.375 (34.9)
1.500 (38.1)
1.625 (41.3)
1.750 (44.5)
2.000 (50.8)
2.250 (57.2)
2.500 (63.5)
2.750 (69.9)
3.000 (76.2)
3.250 (82.6)
F Dim
± .005
0.594 (15.1)
0.719 (18.3)
0.812 (20.6)
0.812 (20.6)
0.906 (23.0)
0.906 (23.0)
0.969 (24.6)
0.969 (24.6)
1.062 (27.0)
1.156 (29.4)
1.250 (31.8)
1.375 (34.9)
1.562 (39.7)
1.750 (44.5)
1.938 (49.2)
2.188 (55.6)
2.438 (61.9)
2.688 (68.3)
G Dia.
+ .010/- .000
0.120 (3.0)
0.120 (3.0)
0.120 (3.0)
0.120 (3.0)
0.120 (3.0)
0.120 (3.0)
0.120 (3.0)
0.120 (3.0)
0.120 (3.0)
0.120 (3.0)
0.120 (3.0)
0.147 (3.7)
0.147 (3.7)
0.173 (4.4)
0.173 (4.4)
0.173 (4.4)
0.173 (4.4)
0.173 (4.4)
H Dia.
+ .010/- .000
0.510 (13.0)
0.635 (16.1)
0.760 (19.3)
0.760 (19.3)
0.885 (22.5)
0.885 (22.5)
1.010 (25.7)
1.010 (25.7)
1.135 (28.8)
1.260 (32.0)
1.385 (35.2)
1.510 (38.4)
1.760 (44.7)
2.010 (51.1)
2.260 (57.4)
2.510 (63.8)
2.760 (70.1)
3.010 (76.5)
J ± .015
0.578 (14.7)
0.578 (14.7)
0.578 (14.7)
0.800 (20.3)
0.578 (14.7)
0.800 (20.3)
0.578 (14.7)
0.800 (20.3)
0.800 (20.3)
0.800 (20.3)
0.800 (20.3)
0.800 (20.3)
0.820 (20.8)
0.800 (20.3)
0.880 (22.4)
0.880 (22.4)
0.880 (22.4)
0.880 (22.4)
K ± .015
0.083 (2.1)
0.083 (2.1)
0.083 (2.1)
0.083 (2.1)
0.083 (2.1)
0.083 (2.1)
0.083 (2.1)
0.083 (2.1)
0.100 (2.5)
0.100 (2.5)
0.100 (2.5)
0.100 (2.5)
0.100 (2.5)
0.100 (2.5)
0.125 (3.2)
0.125 (3.2)
0.125 (3.2)
0.125 (3.2)
Rev. 03.11.15
NOTES
Assembly identified with
manufacturer’s name and
P/N, space permitting
MATERIAL/FINISH
Shell - See Table II
Contacts -
Copper alloy / gold plate
Insulators, Spacer -
High-grade rigid dielectric
O-rings & seals - Silicone
