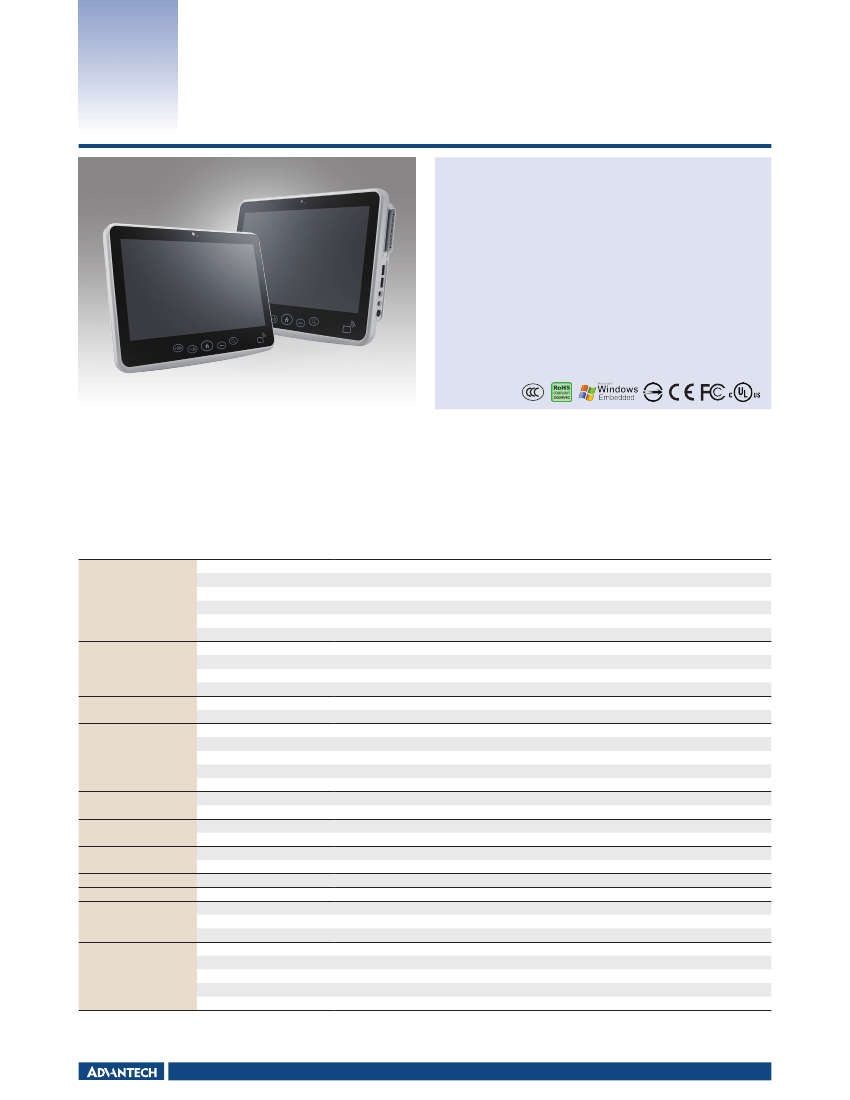

HIT-W121B
11.6" Healthcare/Hospitality
Infortainment Terminal
Features
All-in-one computer with high performance and low power consumption
Industrial design in a slim (43mm) and stylish form factor for healthcare and
hospitality applications
Fanless design for a quiet operating environment
16:9 display provides a natural viewing experience
True flat touch screen for easy cleaning
IP65 compliant front panel
Standard 75mm VESA mounting
Rich peripheral options: Handset / RFID / Smart Card Reader / Barcode
Scanner / MSR
Medical and ITE dual certificate to provide complete application coverage
Supports Power-over-Ethernet (PoE)
Supports Windows, Android, and Linux operating systems
Introduction
HIT-W121B is an 11.6" all-in-one infotainment terminal for healthcare and iServices. It is powered by an Intel Bay Trail Quad Core processor that supports Windows, Android, and
Linux operating systems. The HIT-W121B can be used for communication between family members via webcam, WiFi, and Ethernet network connectivity. It can also be used to
authenticate hospital staff and patients through RFID and Smart Card Reader modules. HIT-W121B is ideal for applications within hospitals, such as nurse calls or bedside information
terminals. It is also suitable for other healthcare-related environments such as treatment centers, elderly care facilities, and fitness centers.
Specifications
Hardware
CPU
Front Side Bus
System Chipset
Memory
Storage
Camera
Size
Max Resolution
Luminance
Contrast Ratio
Type
Light Transmission
USB Port
Smart Card Rearder
Line out
Microphone in
COM Port (Isolated)
Speaker
Microphone
LAN
WLAN
Hotkey
LED Light Indicator
Mini-PCI Slot
Operating System
Mounting
Dimension (W x H x D)
Weight
TV Tuner
Handset
Barcode Scanner
Table Stand
RFID
Intel BayTrail J1900
2.0 GHz (Quad-Core)
J1900
Up to 8 GB (Default: 4GB)
1 x 2.5" SATA SSD or mSATA (HDD not support)
5MP CCD Module
11.6" TFT Widescreen
1366 x 768
200 cd/m
2
500:1
Projected Capacitive (Optional: Resistive Touch)
PCAP Touch : 88%. (Resistive Touch : 80%)
USB 3.0 x 1, USB 2.0 x 2
1
1
1
1
2 watt x 2
1
10/100/1000 RJ-45 x 1 (w/ PoE, IEEE 802.3AT)
802.11 a/b/g/n, BT 4.0
5 programmable touch buttons (Optional: one key PCAP)
1
2 (1x Full Size, 1x Half Size)
Windows: WES7E/P, WES8, Win10. Linux: Fedoria 13, Ubuntu. Android 4.4
VESA 75 x 75 mm
302.5 x 220.25 x 43 mm (119.09 x 86.71 x 16.93 in)
2.3 kg (5.07 lbs)
Yes, Optional (Digital / Analog Hybrid)
Yes, Optional
Yes, Optional. 2D type
Yes, Optional
Yes
Display
Touchscreen
I/O Ports
Audio
Network
Emergency Alarm
Bus Expansion
Software
Mechanical
Options
Interactive Self-service Terminals
All product specifications are subject to change without notice.
Last updated : 25-Feb-2016
HIT-W121B

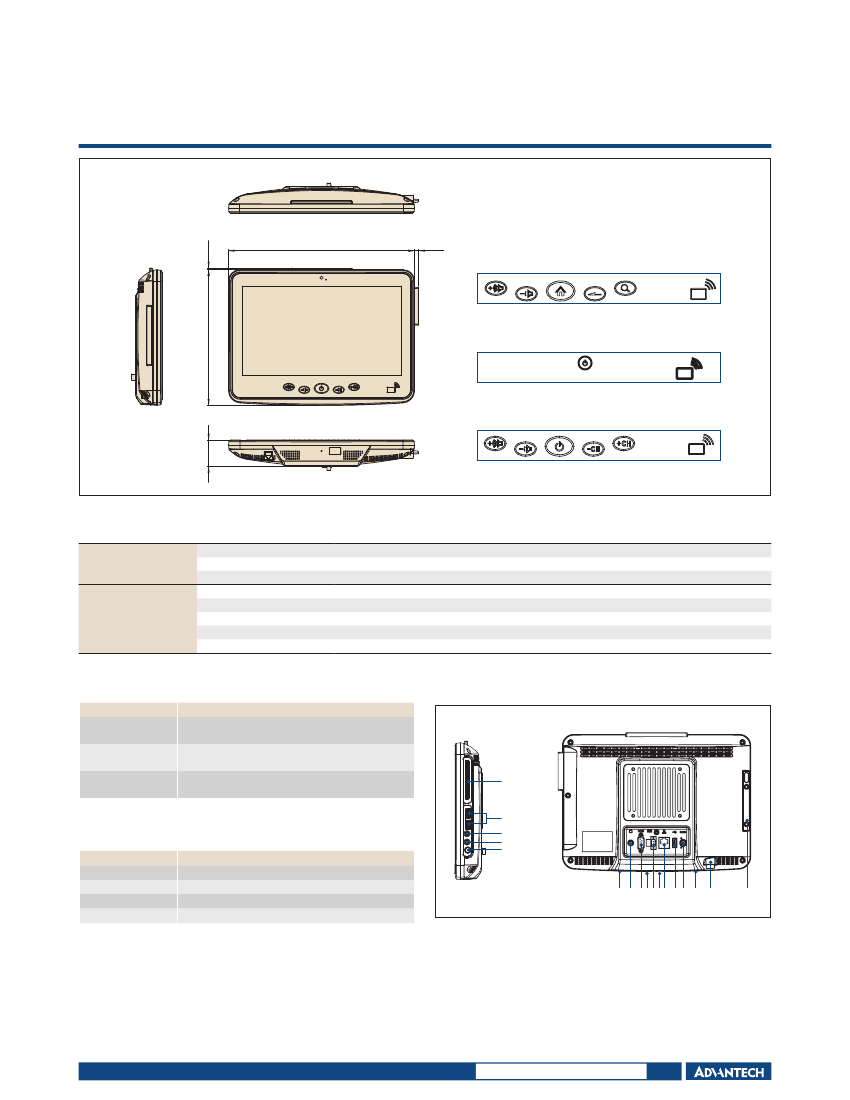

Dimensions
2.75
302.50
6.75
Unit: mm
Standard P-Cap Touchscreen Artwork:
5-Key w/ RFID Icon
Optional P-Cap Touchscreen Artwork:
1-Key w/ RFID Icon
220.25
Optional Res. Touchscreen Artwork:
5-Key w/ RFID Icon
43.00
Specifications (Cont.)
Power Supply
AC/DC Adapter
Input Voltage
Output Voltage
Operating Temperature
IP Rating
Vibration
Shock
Certifications
IT or Medical Grade
100 ~ 240 V
AC
, 1.1 ~ 0.45 A @ 47~ 63 Hz
IT Grade: 19V
DC
, 3.42A Max / Medical Grade: 18V
DC
, 3.62A Max
0 ~ 40 °C
Front Panel: IP65; Unit : IPX1
1G
50 G
CE, FCC, CCC, CB, ITE UL, EN 60950 & EN 60601-1 Certified
Environment
Ordering Information
Part No.
HIT-W121BP-AMW1E
HIT-W121BP-APW1E
HIT-W121BP-AST1E
Part No. Description
11.6" W Baytrail J1900, PCAP T/S, Polished White, w/Full
config & Medical adapter
11.6" W Baytrail J1900, PCAP T/S, Polished White, w/Full
config & PoE module
11.6" W Baytrail J1900, PCAP T/S, Polished White, w/Full
config & ITE adapter
Fully- Integrated I/O
A
B
C
D
E
*Note: Full config : Included Web camera, RFID, Smart Card Reader, Wifi/BT, HDD & OS
Accessories
Part Number
HIT-W121-HSKE
1700001524
170203180A
170203183C
Description
Handset Kit for HIT-W121B
Power cord USA 1.83M (for Medical and ITE)
Power cord UK 1.83M (for Medical and ITE)
Power cord EU 1.83M (for Medical and ITE)
F G H I J KL M N F O
P
A. Smart Card Insert Tray
B. USB 2.0 x 2
C. Mic In
D. Line Out
E. Power Switch
F. Speaker x 2
G. Reserved Port
H. Isolated COM (RS232) Port
I. Barcode Scanner (Optional)
J. 2-PIN Connector
K. Built-in Mic
L. RJ-45 LAN port (Optional: PoE)
M. USB 3.0
N. DC In
O. RJ-12 Handset Connector
P. Handset / MSR Dock
Online Download
