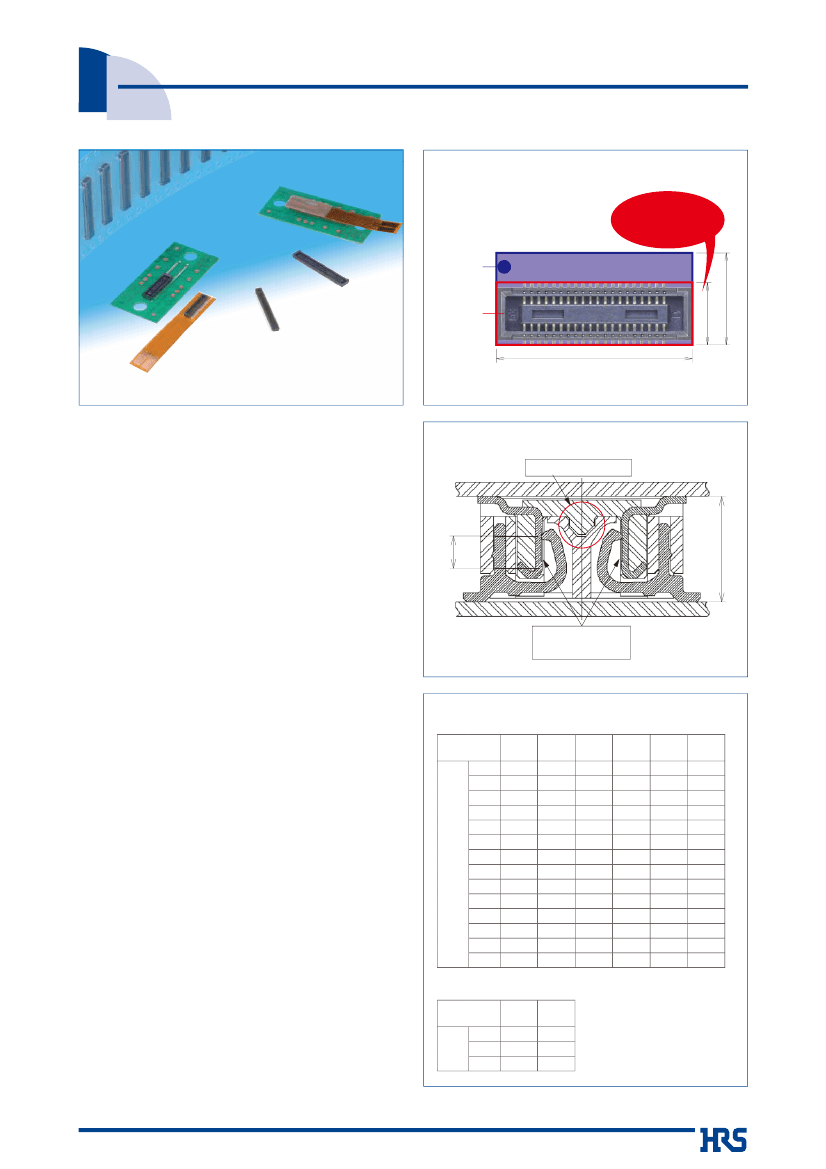

0.4mm Pitch, 1.5 to 4.0mm Height, Board-to-Board and Board-to-FPC Connectors
DF40 Series
Space saving
Space saving
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
■Features
1. High density mounting
Space saving design that has a minimum connector
width, yet still retains a sufficient vacuum area for
easy pick-and-place mounting
Minimum width : 3.38mm
High contact reliability - effective mating length 0.45mm
2. Multiple stack height options
In addition to its space saving design, several stack
heights are available and add versatility to any
application. Stack heights : 1.5mm, 2.0mm, 2.5mm,
3.0mm, 3.5mm, and 4.0mm.
∼
3. High contact reliability
Despite its small stature and low profile, the contacts
deliver strong contact forces and an effective mating
length of 0.45mm on the 1.5mm stacking height.
This connector utilizes a locking system that prevents
accidental unmating issues and emits a clear tactile
click to ensure that mating has been completed.
Stacking height variations
Standard type
Stacking
height
10
12
20
24
30
34
40
44
50
60
70
80
90
100
No. of Contacts
1.5
mm
○
○
○
○
○
○
○
−
○
○
○
○
○
○
2.0
mm
−
○
○
○
○
−
○
○
○
○
○
○
−
−
2.5
mm
○
−
○
−
○
−
○
−
○
○
−
−
−
−
3.0
mm
−
−
−
−
○
−
○
○
○
○
○
○
○
○
3.5
mm
−
−
○
−
○
−
○
−
○
○
−
○
−
−
4.0
mm
−
−
−
−
−
−
−
−
○
○
−
○
○
−
4. Excellent self-aligning range
The use of guide ribs allows 0.33mm of self-
alignment on this connector.
5. Reinforced structure with shock absorbing ribs
Both sides of the connector have been reinforced
with the addition of shock absorbing ribs.
6. Solder wicking prevention
Nickel-plated barriers were added to protect the
contact areas from potential solder wicking.
7. Contamination resistant design
When mated, the connector’s design covers the
contacts which help to keep dust and other debris away
from the contacts. The SMT leads are kept very close
to the connector housing which also helps to prevent
shorts caused by debris on the exposed contacts.
8. RoHS compliant
Environment friendly and does not use RoHS
specified prohibited materials.
All materials and substances used to produce these
parts comply with the RoHS standards.
Shielded type
Stacking
height
30
48
70
1.5
mm
○
○
−
3.0
mm
−
○
○
9. High speed signal with noise prevention
The shielded type can support high speed signal
transmissions with noise prevention.
No. of
Contacts
2016.4⑤
1
DF40 Series●0.4mm Pitch, 1.5 to 4.0mm Height, Board-to-Board and Board-to-FPC Connectors
■Product
Specifications
Ratings
Rated Current 0.3A
Rated Voltage AC, DC 30V
Operating Temperature Range
-35
to +
85℃ (Note 1)
Operating Humidity Range
20
to
80%
Storage Temperature Range
-10
to +
60℃ (Note 2)
Storage Humidity Range
40
to
70% (Note 2)
Conditions
Measured with DC 100V
Apply AC 100V for 1 minute
Measured with AC 20mV, 1 kHz and 1mA
Frequency 10-55 Hz, half amplitude 0.75mm,
3 directions for 2 hours
Left at temperature 40 ± 2ç, humidity 90 to 95%,
96 hours
(-55ç : 30 minutes
→
5~35ç : 10 minutes
→
85ç : 30
minutes
→
5~35ç : 10 minutes) 5 cycles
30 mating cycles
Reflow : according to the Recommended
Temperature Profile
Hand solder : Soldering iron temperature 350ç,
no more than 3 seconds.
Items
1. Insulation Resistance
2. Withstanding Voltage
3. Contact Resistance
4. Vibration Resistance
50Mø min
Specifications
No flashover or breakdown
90mø max
No electrical discontinuity of 1µs or greater
Contact resistance : 90mø max
Insulation resistance : 25mø min
Contact resistance : 90mø max
Insulation resistance : 50mø min
Contact resistance : 90mø max
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
5. Humidity Resistance
6. Temperature Cycles
7. Durability
8. Soldering Heat
Resistance
Should be no melting of resin parts that affects
its performance
Note 1 : Includes temperature rise caused by current flow.
Note 2 : The term "storage" here refers to products stored for a long period prior to board mounting and use. The operating
temperature and humidity range covers the non-energized condition of connectors after board mounting and the
temporary storage conditions during transportation, etc.
■Materials
(Standard, non shielded type) / Finish
Product
Receptacle
Header
Component
Insulator
Contact
Insulator
Contact
Materials
LCP
Phosphor bronze
LCP
Phosphor bronze
Finish
Black
Gold plating
Black
Gold plating
UL Regulation
UL94V-0
---------------
UL94V-0
---------------
■Materials
(Shielded type) / Finish
Product
Receptacle
Component
Insulator
Contact
Shield plate
Insulator
Contact
Reinforcing metal fitting
Materials
LCP
Phosphor bronze
LCP
Phosphor bronze
Finish
Black
Gold plating
Black
Gold plating
UL Regulation
UL94V-0
---------------
---------------
UL94V-0
---------------
---------------
Header
2
DF40 Series●0.4mm Pitch, 1.5 to 4.0mm Height, Board-to-Board and Board-to-FPC Connectors
■Product
Number Structure (Standard, non-shielded type)
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●Receptacle
DF40 # − (
**
) −
*
DS − 0.4 V (
**
)
❶
❷
❸
❹
❺
❻
❼
½
❶
Series Name: DF40
❷
Style
B : With reinforcing metal fitting
HB : With reinforcing metal fitting
(The H denotes a stacking height 2.5mm or above)
C : Without reinforcing metal fitting
HC : Without reinforcing metal fitting
(The H denotes a stacking height 2.5mm or above)
❸
Stacking height
Display
Stacking height
None
1.5mm
2.0
2.0mm
2.5
2.5mm
3.0
3.0mm
3.5
3.5mm
4.0
4.0mm
❹
No. of Contacts
❺
Connector Type
DS : Double row receptacle
❻
Contact Pitch : 0.4mm
❼
Mating direction Shape V : Vertical SMT
½
Packaging Type
(51) Embossed tape packaging
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
●Header
DF40 # −
*
DP − 0.4 V (
**
)
❶
❷
❸
❹
❺
❻
❼
❺
Contact Pitch : 0.4mm
❻
Mating direction V : Vertical SMT
❼
Packaging Type
(51) Embossed tape packaging
❶
Series Name : DF40
❸
No. of Contacts
❷
Style
❹
Connector Type
DP : Double row pin header
C : Without reinforcing metal fitting
■Shielded
type
●Receptacle
DF40 GB − (
**
) −
*
DS − 0.4 V (
**
)
❶
❷
❸
❹
❺
❻
❼
½
❶
Series Name : DF40
❷
Style
GB : With shield
❸
Stacking height
Display
1.5
3.0
Stacking height
1.5mm
3.0mm
❺
Connector Type
DS : Double row receptacle
❻
Contact Pitch : 0.4mm
❼
Mating direction V : Vertical SMT
½
Packaging Type
(51) Embossed tape packaging
❹
No. of Contacts
●Header
DF40 GB −
*
DP − 0.4 V (
**
)
❶
❷
❸
❹
❺
❻
❼
❺
Contact Pitch : 0.4mm
❻
Mating direction V : Vertical SMT
❼
Packaging Type
(51) Embossed tape packaging
❶
Series Name : DF40
❸
No. of Contacts
❷
Style
❹
Connector Type
DP : Double row pin header
GB : With reinforcing metal fitting
(For use with shielded product )
3
DF40 Series●0.4mm Pitch, 1.5 to 4.0mm Height, Board-to-Board and Board-to-FPC Connectors
■Receptacle
(Stacking height 1.5mm)
A±0.2
B±0.08
P=0.4±0.05
3.38±0.2
2.88±0.2
0.12±0.02
Vacuum pick up area : C±0.2
D±0.15
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
BRecommended
PCB layout
B±0.02
P=0.4±0.02
P=0.4±0.02
B±0.02
1.2±0.02
3.78
+0.05
0
3.78
+0.05
0
0.2±0.02
0
2.38
-0.05
1.5MAX
0
2.38
-0.05
1.5MAX
0.2±0.02
DF40C(Without reinforcing metal fitting)
DF40B(With reinforcing metal fitting)
■Stacking
height 1.5mm
【Specification
No.】
(51) : Embossed package 5,000 pcs/reel
Unit : mm
Part No.
DF40B-10DS-0.4V(51)
DF40B-12DS-0.4V(51)
DF40B-30DS-0.4V(51)
DF40B-50DS-0.4V(51)
DF40B-60DS-0.4V(51)
DF40B-80DS-0.4V(51)
DF40C-20DS-0.4V(51)
DF40C-24DS-0.4V(51)
DF40C-30DS-0.4V(51)
DF40C-34DS-0.4V(51)
DF40C-40DS-0.4V(51)
DF40C-50DS-0.4V(51)
DF40C-60DS-0.4V(51)
DF40C-70DS-0.4V(51)
DF40C-80DS-0.4V(51)
DF40C-90DS-0.4V(51)
DF40C-100DS-0.4V(51)
HRS No.
684-4038-8 51
684-4152-3 51
684-4090-8 51
684-4018-0 51
684-4049-4 51
684-4052-9 51
684-4005-9 51
684-4006-1 51
684-4007-4 51
684-4023-0 51
684-4008-7 51
684-4009-0 51
684-4004-6 51
684-4016-5 51
684-4002-0 51
684-4124-8 51
684-4033-4 51
No. of Contacts
10
12
30
50
60
80
20
24
30
34
40
50
60
70
80
90
100
A
4.6
5.0
8.6
12.6
14.6
18.6
6.6
7.4
8.6
9.4
10.6
12.6
14.6
16.6
18.6
20.6
22.6
B
1.6
2.0
5.6
9.6
11.6
15.6
3.6
4.4
5.6
6.4
7.6
9.6
11.6
13.6
15.6
17.6
19.6
C
1.0
1.5
3.2
1.0
1.2
1.5
2.3
D
1.45
3.2
Note 1 : Please place orders by full reel.
Note 2 : The surface of the 60 to 100 pos. parts have a small, concave section that will not affect the vacuum pick up operation.
Note 3 :
Resist coating area.
Note 4 : This connector is NOT polarized.
4
DF40 Series●0.4mm Pitch, 1.5 to 4.0mm Height, Board-to-Board and Board-to-FPC Connectors
■Receptacle
(Stacking height 2.0mm)
A±0.2
B±0.08
P=0.4±0.05
3.38±0.2
2.94±0.2
0.12±0.02
Vacuum pick up area : C±0.2
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
BRecommended
PCB layout
B±0.02
P=0.4±0.02
P=0.4±0.02
B±0.02
1.2±0.02
3.78
+0.05
0
3.78
+0.05
0
0
2.38
-0.05
1.5MAX
0.2±0.02
0
2.38
-0.05
1.5MAX
0.2±0.02
DF40C(Without reinforcing metal fitting)
DF40B(With reinforcing metal fitting)
■Stacking
height 2.0mm
【Specification
No.】
(51) : Embossed package 4,000 pcs/reel
Unit : mm
Part No.
DF40B(2.0)-12DS-0.4V(51)
DF40B(2.0)-80DS-0.4V(51)
DF40C(2.0)-20DS-0.4V(51)
DF40C(2.0)-24DS-0.4V(51)
DF40C(2.0)-30DS-0.4V(51)
DF40C(2.0)-40DS-0.4V(51)
DF40C(2.0)-50DS-0.4V(51)
DF40C(2.0)-60DS-0.4V(51)
DF40C(2.0)-70DS-0.4V(51)
DF40C(2.0)-80DS-0.4V(51)
HRS No.
684-4150-8 51
684-4128-9 51
684-4040-0 51
684-4021-2 51
684-4058-5 51
684-4042-5 51
684-4091-0 51
684-4034-7 51
684-4147-3 51
684-4132-6 51
No. of Contacts
12
80
20
24
30
40
50
60
70
80
A
5.0
18.6
6.6
7.4
8.6
10.6
12.6
14.6
16.6
18.6
B
2.0
15.6
3.6
4.4
5.6
7.6
9.6
11.6
13.6
15.6
C
1.0
3.2
1.0
1.2
1.5
D±0.15
D
1.95
3.2
Note 1 : Please place orders by full reel.
Note 2 : The surface of the 60 to 100 pos. parts have a small, concave section that will not affect the vacuum pick up operation.
Resist coating area.
Note 3 :
Note 4 : This connector is NOT polarized.
