Power Entry Modules with Line Filter
https://www.schurter.com /PG06
DA22
IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole, for PCB Mounting
C14
70° C
Approvals and Compliances

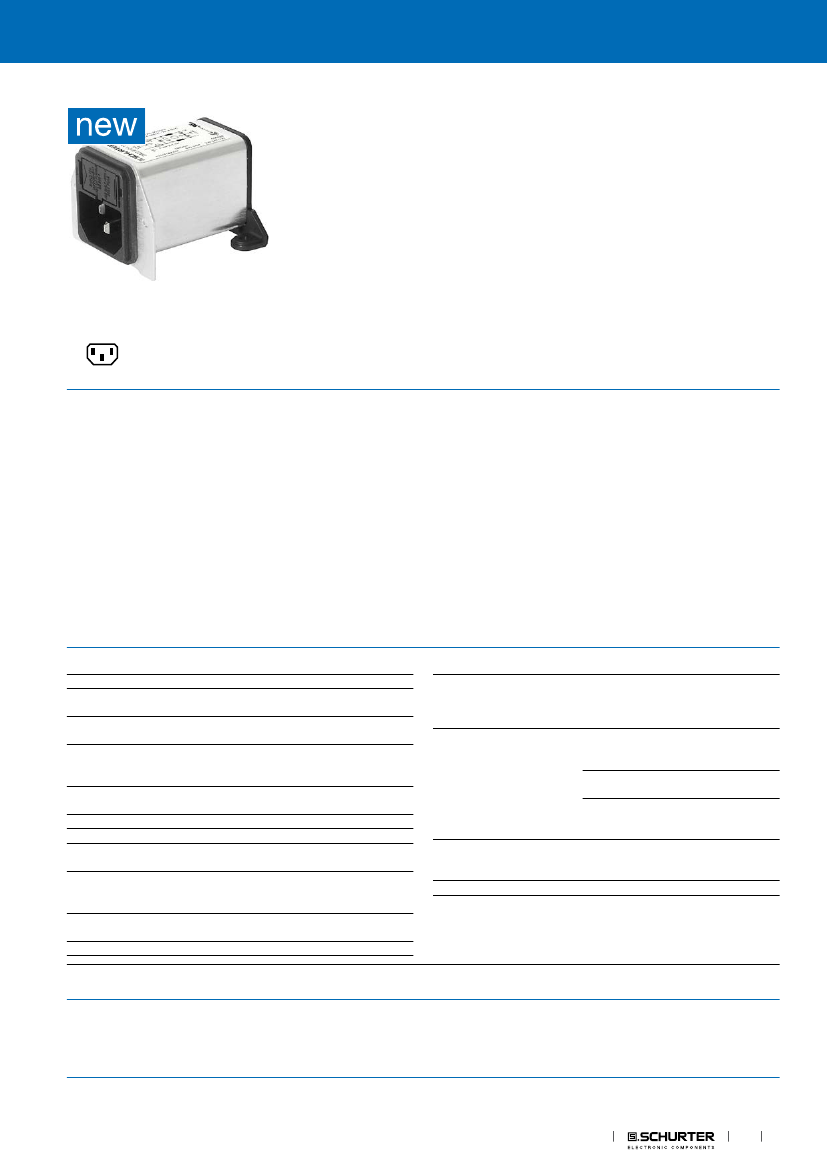

Description
- Panel Mount :
Screw-on mounting on PCB , from rear-side
- 3 Functions :
Appliance Inlet , Fuseholder for fuse-links 5 x 20 mm , Line filter in
standard and medical version
- V-Lock notch standard
- PCB terminals
Characteristics
-
-
-
-
Ultra-compact design
All single elements are already wired
For added safety "Extra-Safe" fuse drawers are available
Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
Fixing on PCB with self-tapping screws 3 mm or pre-inserted nuts M3
Fuse drawer 1-pole, plus spare fuse case
Fuse drawer 2-pole, with shorting bar
Medical version M80, 220 nF X capacitors
Class X1- and Y1-capacitors for enhanced withstand voltage
Protection class II, 70°C
Other versions on request
-
-
-
-
-
-
References
Weblinks
Alternative: version for panel mounting
KFA
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz
1 - 10 A @ Ta 40 °C / 250 VAC;
50/60 Hz ¹⁾
standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (1 min/50 Hz)
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
For PCB mounting ; Additional for
ground terminal: Quick connect termi-
nals 6.3 x 0.8 mm angled to pin axis
Screw-on mounting: max 3 mm
Mounting screw torque max 0.5 Nm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 acc. to IEC 60320-1
UL 498 CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I
1 or 2 pole, Shocksafe category PC2
acc. to IEC 60127-6,
for fuse-links 5 x 20 mm
5 x 20: 2 W (1 pole)/ 1.4 W (2-pole) per
pole
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 2'000'000 h acc. to MIL-HB-217 F
Fuseholder
Allowable Operation Tempe-
rature
Climatic Category
IP-Protection
Protection Class
Terminal
Rated Power Acceptance @
Ta 23 °C
Power Acceptance @ Ta >
23°C
Line Filter
MTBF
Panel Thickness S
Material: Housing
1)
UL appovals: 1-pole versions up to 10 A, 2-pole versions up to 8 A
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
EMC Products
1
DA22
Approvals
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: DA22
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40001522
UL File Number: E72928
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
IEC 60127-6
IEC 61058-1
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
Medical Equipment
SCHURTER AG
2
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
DA22

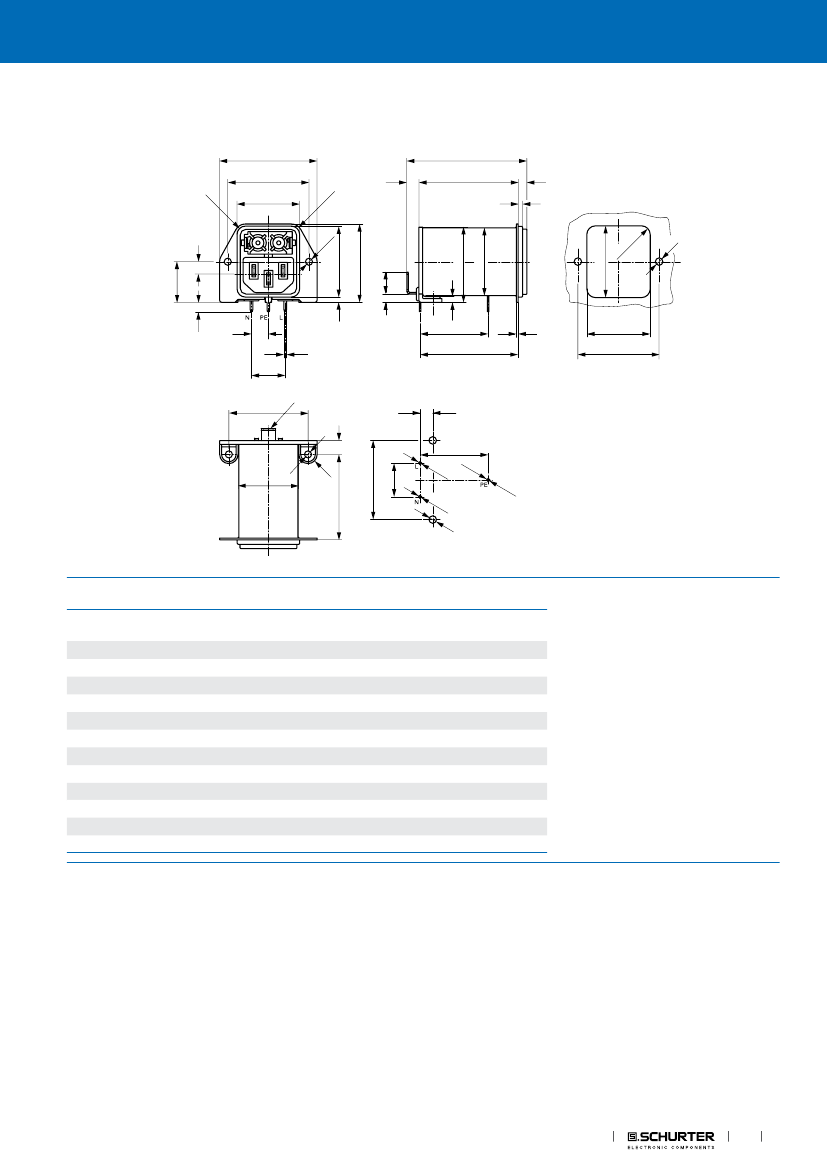

Dimensions [mm]
46.8
39
5.8
57.6
47.6
2.2
4.2
30
R
5.
1
34.4
±0.10
R
4.
2
±0
3.
4
.0
5
37.6
19.5
6
4 10.5
4.5
2.5
2.8
36.1
32.5
34
8.1
1.25
16.2
6.3x0.8
32.7
47.05
0.85
30.4
±0.10
39
±0.15
38
6.05
±0.10
6.6
32.7
±0.20
16.2
±0.15
38
±0.20
1.6
1.6
29
+0
.
0 10
3.
4
1.6
+0
.
0 10
41
+0
.
0 10
3.6
Technical Data of Filter-Components
Rated Current
[A]
1
2
4
6
8
10
1
2
4
6
8
10
Filter-Type
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Inductances
L [mH]
2 x 10
2x4
2 x 1.5
2 x 0.8
2 x 0.6
2 x 0.3
2 x 10
2x4
2 x 1.5
2 x 0.8
2 x 0.6
2 x 0.3
Capacitance
CX [nF]
100
100
100
100
100
100
100
100
100
100
100
100
Capacitance
CY [nF]
2.2
2.2
2.2
2.2
2.2
2.2
-
-
-
-
-
-
R [MΩ]
1
1
1
1
1
1
1
1
1
1
1
1
EMC Products
3.
6
R
4
R
4
4.
3
DA22

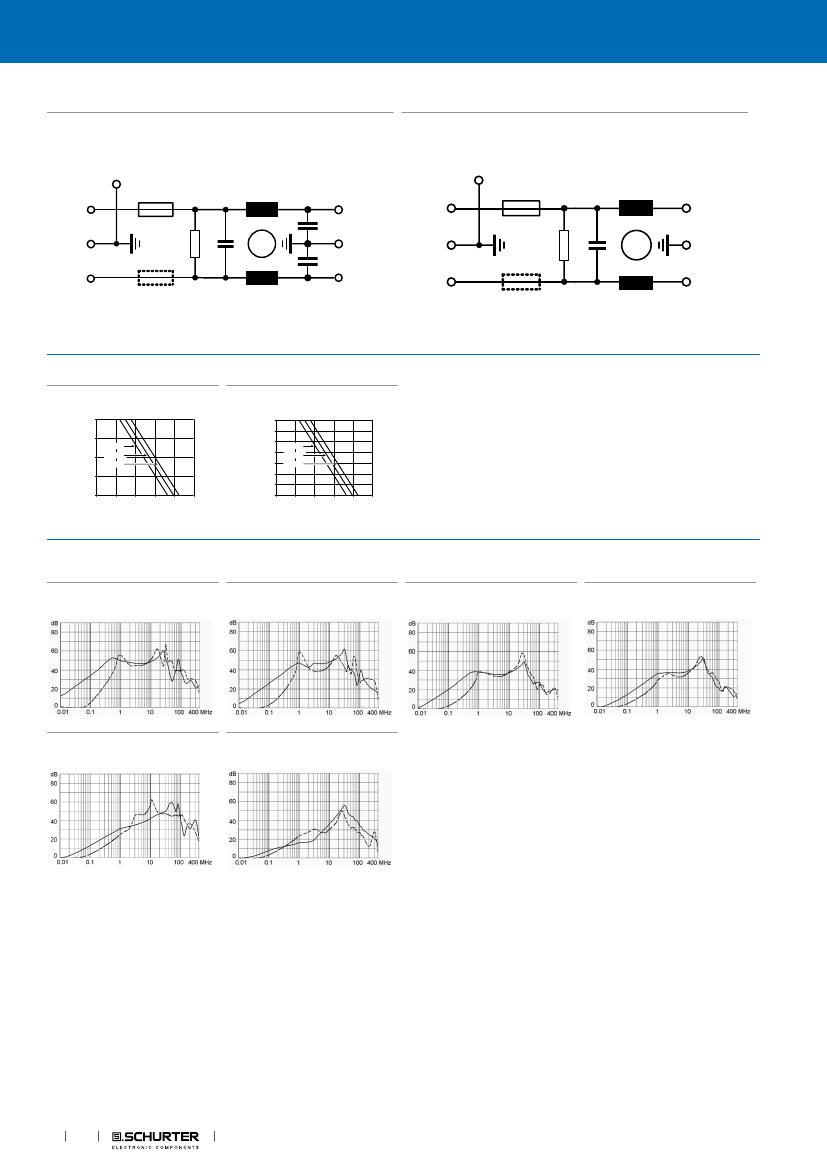

Diagrams
Standard version with bleed resistor and Medical version M80
1-/2-pole
Medical version M5
1-/2-pole
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
PE’’
PE’’
F1
R
L1
Cx
1)
L
PE
N
L’
Cy
Cy
F2
PE’
N’
2)
1)
L
PE
N
F1
R
L1
Cx
L2
L’
PE’
N’
2)
L2
F2
1) Line
2) Load
1) Line
2) Load
Derating Curves
1-pole
Admissible power
acceptance in Watt
2.0
2-pole
Admissible power
acceptance in Watt
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
1.5
I = 1.0 I
n
1.0
I = 0.7 I
n
I = << I
n
0.5
0.0
0
20
40
60
80
100
Ambient air temperature T
a
°C
Ambient air temperature T
a
°C
- - - - 50Ω differential mode _____ 50Ω common mode

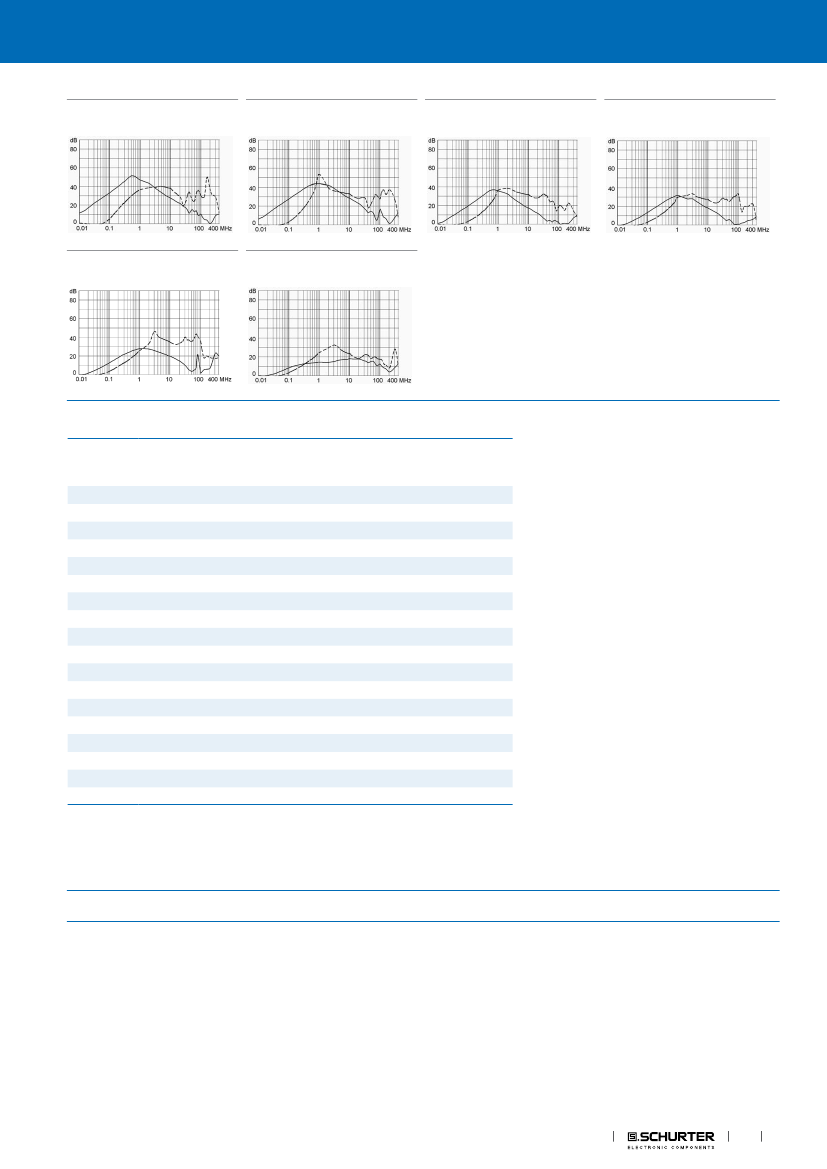

Attenuation Loss
Standard version
1A
2A
4A
6A
8A
10 A
4
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
DA22
4A
6A
Medical version (M5)
1A
2A
8A
10 A
All Variants
Rated current
Filter-Type
Fuseholder
Comment
Order Number
1
2
4
6
8
10
1
2
4
6
8
10
1
2
4
6
8
10
█
Most Popular.
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
1-pole
1-pole
1-pole
1-pole
1-pole
1-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
-
-
-
-
-
1)
-
-
-
-
-
1)
-
-
-
-
-
1)
DA22.1111.11
DA22.2111.11
DA22.4111.11
DA22.6111.11
DA22.8111.11
DA22.9111.11
DA22.1121.11
DA22.2121.11
DA22.4121.11
DA22.6121.11
DA22.8121.11
DA22.9121.11
DA22.1321.11
DA22.2321.11
DA22.4321.11
DA22.6321.11
DA22.8321.11
DA22.9321.11
█
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-
Check-SCHURTER
1) UL approvals: versions with 1-pole fuseholder are approved up to 10 A, 2-pole versions up to 8 A.
